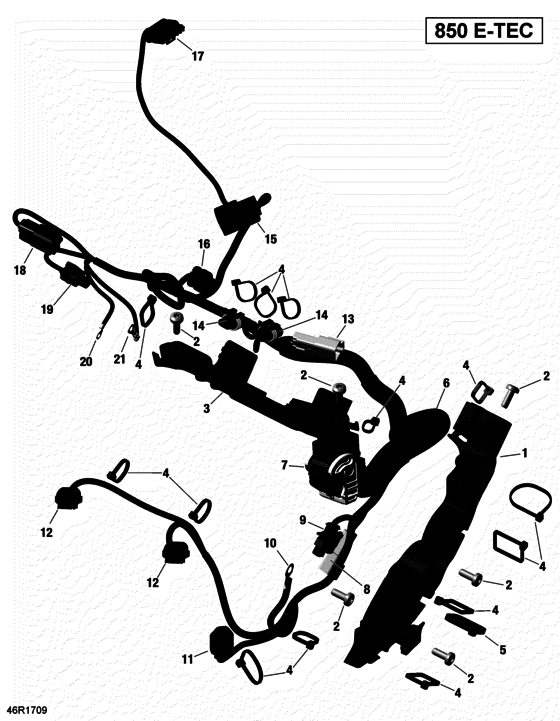

10- Engine Harness - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420260152 HARNESS SUPPORT |
420260152 |
US $16.29 |
||
|
2
|
2
420640324 TORX SCREW M6 X 16 |
420640324 |
US $2.72 |
||
|
3
|
3
420260156 HARNESS SUPPORT |
420260156 |
US $10.17 |
||
|
4
|
4
XXX
Not Sold
|
XXX |
— | ||
|
5
|
5
420651397 ATTACHE *TIE RAP |
420651397 |
US $1.31 |
||
|
6>21
|
6>21
420864440
Bride bougie *clamp-spark plug
|
420864440 |
— | ||
| replacement | |||||
|
6>21
|
6>21
414569200 Prot.bougie *prot-spark plu |
414569200 |
US $8.38 |
||
|
8
|
8
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
9
|
9
278001005 Bloc 2 circ.mal*housing-tab |
278001005 |
US $21.42 |
||
|
11
|
11
710000057 Cosse femelle *terminal-femal |
710000057 |
US $15.21 |
||
|
11
|
11
710000058 Joint etanche *gasket |
710000058 |
US $6.07 |
||
|
11
|
11
415130195 CONNECTOR |
415130195 |
US $27.27 |
||
|
12
|
12
515176129 LOGEMENT PT FEM*FEM TER HOUSIN |
515176129 |
US $32.15 |
||
|
12
|
12
710002063 TERMINAL *TERMINAL |
710002063 |
US $2.01 |
||
|
12
|
12
415130196 SEAL |
415130196 |
US $0.97 |
||
|
13
|
13
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
14
|
14
409209500 Logement femel.*housing-femal. |
409209500 |
from US $15.23 |
||
|
15
|
15
515178202 HOUSING, 6 CIRCUITS |
515178202 |
US $14.55 |
||
|
19
|
19
515177192 CONNECTEUR *HOUSING |
515177192 |
US $9.76 |
||
|
21
|
21
515175504 Cosse a oeillet*terminal-ring |
515175504 |
US $48.80 |
||
