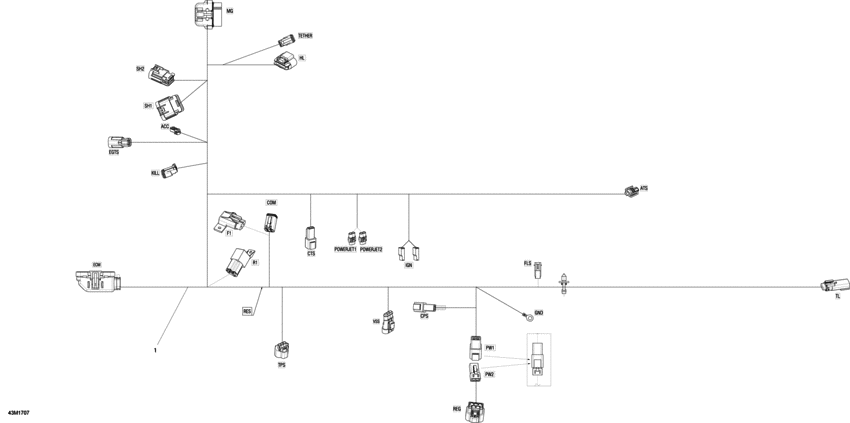

10- Electrical Harness Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515177994 CABLAGE ASS. *WIRING HARNESS |
515177994 |
US $438.57 |
||
|
ACC
|
ACC
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
ACC
|
ACC
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
ATS
|
ATS
515176890 FEMALE TERMINAL HOUSING |
515176890 |
US $13.45 |
||
|
ATS
|
ATS
710001163 Joint de fil *seal-wire |
710001163 |
US $9.61 |
||
|
ATS
|
ATS
710001164 Terminal femel *terminal-femal |
710001164 |
US $48.80 |
||
|
COM
|
COM
278002896 HOUSING, 6 CIRCUITS |
278002896 |
US $16.92 |
||
|
COM
|
COM
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
COM
|
COM
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
COM
|
COM
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
COM
|
COM
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
CPS
|
CPS
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
CPS
|
CPS
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
CPS
|
CPS
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
CTS
|
CTS
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
CTS
|
CTS
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
CTS
|
CTS
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
ECM
|
ECM
515176223 Logement pt fem*housing-fem te |
515176223 |
US $15.64 |
||
|
ECM
|
ECM
515176224 Support termina*terminal retai |
515176224 |
US $18.12 |
||
|
ECM
|
ECM
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
ECM
|
ECM
515176221 Logement femel.*housing-female |
515176221 |
US $18.02 |
||
|
ECM
|
ECM
515176222 Joint de fil *seal-wire |
515176222 |
US $16.92 |
||
|
ECM
|
ECM
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
ECM
|
ECM
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
EGTS
|
EGTS
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
EGTS
|
EGTS
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
F1
|
F1
278001326 Cap.porte-fusib*cap holder-fuse |
278001326 |
US $48.05 |
||
|
F1
|
F1
278000805 Coussinet *cushion |
278000805 |
US $21.15 |
||
|
F1
|
F1
409003900 Fusible 20a *fuse 20a |
409003900 |
US $21.15 |
||
|
F1
|
F1
278001325 Porte fusible *holder-fuse |
278001325 |
US $19.34 |
||
|
F1
|
F1
710000113 Cosse femelle *terminal-femal. |
710000113 |
US $90.10 |
||
|
FLS
|
FLS
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
FLS
|
FLS
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
GND
|
GND
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
HL
|
HL
515177296 CONNECTEUR *HOUSING |
515177296 |
US $10.47 |
||
|
HL
|
HL
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
HL
|
HL
710001228 Terminal *terminal |
710001228 |
US $4.23 |
||
|
IGN
|
IGN
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
IGN
|
IGN
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
KILL
|
KILL
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
KILL
|
KILL
515175675 Verrou femelle *lock-female |
515175675 |
US $29.35 |
||
|
KILL
|
KILL
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
MG
|
MG
515175801 Logement femel.*housing-female |
515175801 |
US $21.72 |
||
|
MG
|
MG
515175802 Boitier *retainer block |
515175802 |
US $12.29 |
||
|
MG
|
MG
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
MG
|
MG
710000399 Logement femel.*female housing |
710000399 |
from US $16.92 |
||
|
MG
|
MG
515175803 Joint de fil *seal-wire |
515175803 |
US $40.60 |
||
|
MG
|
MG
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
MG
|
MG
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
POWERJET 1
|
POWERJET 1
409012300 Joint *seal |
409012300 |
US $58.50 |
||
|
POWERJET 1
|
POWERJET 1
409012100 Cosse femelle *terminal-femal. |
409012100 |
US $58.70 |
||
|
POWERJET 2
|
POWERJET 2
409012300 Joint *seal |
409012300 |
US $58.50 |
||
|
POWERJET 2
|
POWERJET 2
409012100 Cosse femelle *terminal-femal. |
409012100 |
US $58.70 |
||
|
PW1
|
PW1
278001674 Bloc 2 circ.fem*housing-tab |
278001674 |
US $34.10 |
||
|
PW1
|
PW1
278001672 Cale 2 circ.mal*wedge-2 ways m |
278001672 |
US $4.49 |
||
|
PW1
|
PW1
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
PW2
|
PW2
278001673 Bloc 2 circ.mal*housing-tab |
278001673 |
US $25.31 |
||
|
PW2
|
PW2
278001671 Cale 2 circ.mal*wedge-2 ways m |
278001671 |
US $22.45 |
||
|
PW2
|
PW2
515175567 Cosse femelle *terminal-femal |
515175567 |
US $48.05 |
||
|
R1
|
R1
409209900 Logement fe.5c.*housing-fe.5c. |
409209900 |
US $10.85 |
||
|
R1
|
R1
515177041 RELAY |
515177041 |
US $14.67 |
||
|
R1
|
R1
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
REG
|
REG
515176530 Connecteur *connector |
515176530 |
US $27.49 |
||
|
REG
|
REG
515176594 Joint *joint |
515176594 |
US $6.26 |
||
|
REG
|
REG
515176531 Terminal *terminal |
515176531 |
US $6.26 |
||
|
RES
|
RES
710002674 RESISTOR |
710002674 |
US $4.23 |
||
|
SH1
|
SH1
710001929 HOUSING, PACKARD |
710001929 |
US $12.22 |
||
|
SH1
|
SH1
710001225 Bouchon *cap |
710001225 |
US $9.71 |
||
|
SH1
|
SH1
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
SH1
|
SH1
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
SH1
|
SH1
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
SH1
|
SH1
710001223 Terminal *terminal |
710001223 |
US $4.23 |
||
|
SH2
|
SH2
710001927 LOGEMENT *HOUSING |
710001927 |
US $9.67 |
||
|
SH2
|
SH2
710001225 Bouchon *cap |
710001225 |
US $9.71 |
||
|
SH2
|
SH2
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
SH2
|
SH2
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
TETHER
|
TETHER
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
TETHER
|
TETHER
515175675 Verrou femelle *lock-female |
515175675 |
US $29.35 |
||
|
TETHER
|
TETHER
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
TL
|
TL
515178023 LOGEMENT *HOUSING |
515178023 |
US $14.67 |
||
|
TL
|
TL
515178013 COSSE MALE *TERMINAL-MALE |
515178013 |
US $4.23 |
||
|
TPS
|
TPS
515176176 Log pt fem 3 po*housing-tab 3p |
515176176 |
US $18.12 |
||
|
TPS
|
TPS
710000402 Joint de fil *seal-wire |
710000402 |
US $58.70 |
||
|
TPS
|
TPS
710000335 Cosse femelle *female terminal |
710000335 |
US $29.20 |
||
|
VSS
|
VSS
710000992 Clip *clip |
710000992 |
US $5.71 |
||
|
VSS
|
VSS
710000568 Logement *housing |
710000568 |
US $12.22 |
||
|
VSS
|
VSS
515176621 Joint de fil *seal-wire |
515176621 |
US $48.80 |
||
|
VSS
|
VSS
515176164 Cosse male *terminal-male |
515176164 |
US $9.01 |
