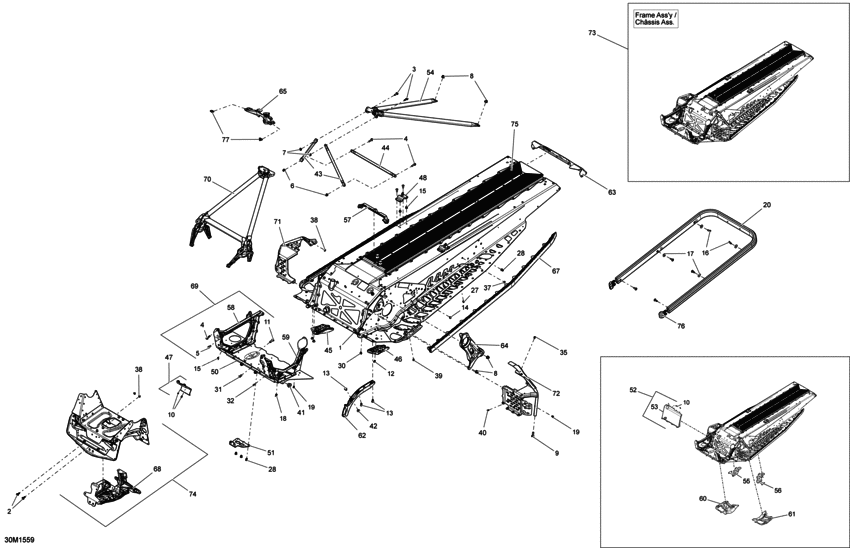

09- Frame _30M1559 Diagram Bombardier MX Z
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
2
|
2
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
3
|
3
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
4
|
4
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
5
|
5
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
6
|
6
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
7
|
7
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
8
|
8
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
9
|
9
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
10
|
10
250300027 Goujon + sertir*clinch stud |
250300027 |
US $2.72 |
||
|
11
|
11
250300038 Goujon + sertir*clinch stud |
250300038 |
US $4.05 |
||
|
12
|
12
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
13
|
13
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
14
|
14
293730060 BLACK DART 10 MM |
293730060 |
US $5.87 |
||
|
15
|
15
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
16
|
16
250000779 TORX-TRUSS M/S N.PATCH M6 X 18 |
250000779 |
US $2.72 |
||
|
17
|
17
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
18
|
18
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
19
|
19
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
20
|
20
518326611 BLACK REAR BUMPER, 154" |
518326611 |
US $110.13 |
||
|
27
|
27
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
28
|
28
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
30
|
30
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
31
|
31
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
|
32
|
32
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
|
35
|
35
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
37
|
37
293730047 Dard 8 mm *dart 8 mm |
293730047 |
US $2.06 |
||
|
38
|
38
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
38
|
38
293730053 BLACK DART 5 MM |
293730053 |
US $5.87 |
||
|
39
|
39
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
40
|
40
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
41
|
41
505073317 LEG CUSHION |
505073317 |
US $6.26 |
||
|
42
|
42
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
43
|
43
518325114 Support colonne*support |
518325114 |
US $19.92 |
||
|
44
|
44
518325115 Support colonne*upper column |
518325115 |
US $19.92 |
||
|
45
|
45
518325782 Deflecteur dr. *rh deflector |
518325782 |
US $13.89 |
||
|
46
|
46
518325783 Deflecteur ga. *lh deflector |
518325783 |
US $13.89 |
||
|
47
|
47
518325943 Support mag *mag support |
518325943 |
US $22.39 |
||
|
48
|
48
518325973 Embase arri+re *rear base |
518325973 |
US $17.82 |
||
|
48
|
48
518325974 Embase arri+re *rear base |
518325974 |
US $17.82 |
||
|
50
|
50
518326198 Traverse avant *front member |
518326198 |
US $50.97 |
||
|
51
|
51
518326466 MODULE REINFORCEMENT |
518326466 |
US $27.49 |
||
|
52
|
52
518326485 FRONT RADIATOR |
518326485 |
US $390.63 |
||
|
53
|
53
518-326-486 Radiateur avant*front radiator |
518-326-486 |
US $364.11 |
||
|
54
|
54
518326559 REAR MEMBER |
518326559 |
US $164.17 |
||
|
55
|
55
518326616 RH FRONT RETAINER |
518326616 |
US $36.69 |
||
|
56
|
56
518326617 LH FRONT RETAINER |
518326617 |
US $36.69 |
||
|
57
|
57
518326656 JOINT *SEAL |
518326656 |
US $8.38 |
||
|
58
|
58
518326795 RH MEMBER |
518326795 |
US $306.88 |
||
|
59
|
59
518326796 LH MEMBER |
518326796 |
US $201.93 |
||
|
60
|
60
518326937 RENFORT DR *REINFORCEMENT |
518326937 |
US $22.39 |
||
|
61
|
61
518326938 RENFORT GA *REINFORCEMENT |
518326938 |
US $22.39 |
||
|
62
|
62
518326973 FRONT PROTECTOR |
518326973 |
US $16.76 |
||
|
63
|
63
518327105 REAR CAP |
518327105 |
US $19.92 |
||
|
64
|
64
518327460 PULLEY SUPPORT |
518327460 |
US $100.93 |
||
|
65
|
65
518327145 SUB A SUPPORT |
518327145 |
US $73.41 |
||
|
67
|
67
518327200 RH ROLLER |
518327200 |
US $147.85 |
||
|
67
|
67
518327201 LH ROLLER |
518327201 |
US $147.85 |
||
|
68
|
68
518327487 FRONT SUSPENSION SUPPORT |
518327487 |
US $317.10 |
||
|
69
|
69
518327567 FRONT E MODULE |
518327567 |
US $507.57 |
||
|
70
|
70
518327565 FRONT MEMBER |
518327565 |
US $284.53 |
||
|
71
|
71
518327841 ETRIER DROIT *RH.STIRUP |
518327841 |
US $151.95 |
||
|
72
|
72
518327937 ETRIER GA *LH.STIRUP |
518327937 |
US $151.95 |
||
|
73
|
73
415129983 CHASSIS *FRAME |
415129983 |
US $3,783.20 |
||
|
74
|
74
518328573 MODULE S *CROSS MEMBER |
518328573 |
US $435.49 |
||
|
75
|
75
518328648 RADIATEUR ARR.S*REAR RAD. WELD |
518328648 |
US $675.21 |
||
|
76
|
76
520000965 BLACK RH CAP |
520000965 |
US $8.55 |
||
|
76
|
76
520000964 BLACK LH CAP |
520000964 |
US $8.55 |
||
|
77
|
77
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
