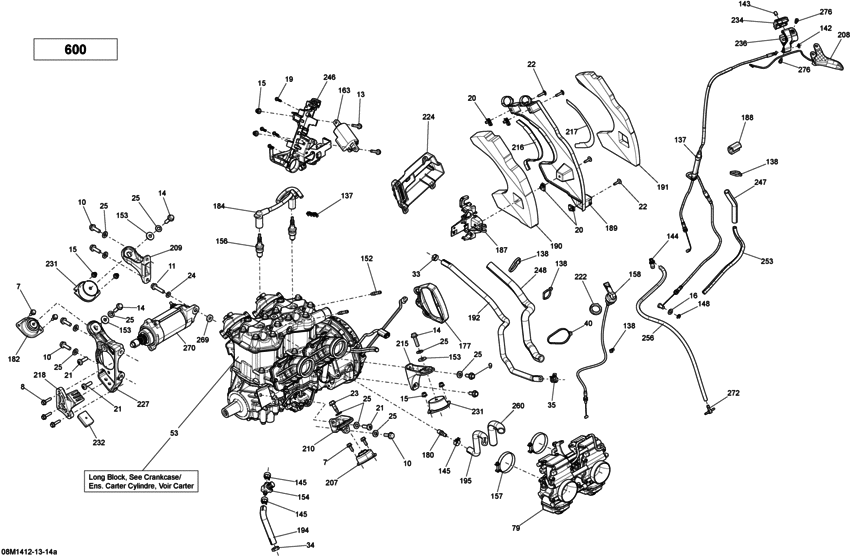

01- Engine And Engine Support _08M1412 Diagram Bombardier MX Z
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
207561644 Screw-hex.flange din.6921 s.grip |
207561644 |
US $61.25 |
||
|
8
|
8
207562544 Screw-hex.flange din.6921 s.grip |
207562544 |
US $21.80 |
||
|
9
|
9
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
10
|
10
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
11
|
11
207583544 Screw-hex.flange din.6921 s.grip |
207583544 |
US $5.71 |
||
|
13
|
13
207663034 Screw-hex.flange din.6921 |
207663034 |
US $10.05 |
||
|
14
|
14
207683044 Screw-hex.flange din.6921 |
207683044 |
US $21.80 |
||
|
15
|
15
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
16
|
16
234081100 Washer-flat din.125a |
234081100 |
US $9.10 |
||
|
19
|
19
241151640 Vis pt.hexagona*screw-pt.hex.f |
241151640 |
US $9.45 |
||
|
20
|
20
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
21
|
21
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
22
|
22
250000528 TORX-TRUSS M/S NYLON PATCH M5X |
250000528 |
US $13.60 |
||
|
23
|
23
250000570 HEX. SCREW M8 |
250000570 |
US $2.01 |
||
|
24
|
24
250200008 Washer-flat din.125a teflon-coat |
250200008 |
US $24.55 |
||
|
25
|
25
250200146 CONICAL SPRING WASHER M8 |
250200146 |
US $1.31 |
||
|
33
|
33
293650046 Bride serrage *clamp-oetiker |
293650046 |
US $19.15 |
||
|
34
|
34
293650125 Bride serrage *clamp-oetiker |
293650125 |
US $21.70 |
||
|
35
|
35
293650214 NORMA SPRING CLAMP |
293650214 |
US $17.58 |
||
|
40
|
40
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
53
|
53
XXX
Not Sold
|
XXX |
— | ||
|
79
|
79
403138815 CARBURETOR KIT, TM40-B418 |
403138815 |
US $1,409.62 |
||
|
137
|
137
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
138
|
138
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
142
|
142
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
143
|
143
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
144
|
144
414580700 Raccord male *connector-male |
414580700 |
US $26.60 |
||
|
145
|
145
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
148
|
148
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
152
|
152
420924724 HOSE NIPPLE |
420924724 |
US $16.42 |
||
|
153
|
153
503183200 Washer-yellow |
503183200 |
US $42.30 |
||
|
154
|
154
512059324 Soupape 5/16" *valve-5/16 |
512059324 |
US $41.77 |
||
|
156
|
156
415128524 Bougie br9ecs *plug-spark br9ecs |
415128524 |
US $116.80 |
||
|
157
|
157
512059835 Bride *clamp |
512059835 |
US $11.90 |
||
|
158
|
158
512060672 CHOKE CABLE |
512060672 |
US $43.81 |
||
|
163
|
163
512059968 Bobine allumage*coil-ignition |
512059968 |
US $61.15 |
||
|
177
|
177
512060136 Poignee demarr.*starter grip |
512060136 |
US $14.25 |
||
|
180
|
180
512060196 Raccord male *connector-male |
512060196 |
US $9.13 |
||
|
182
|
182
512060387 Tampon ancrage *rubber mount |
512060387 |
US $51.97 |
||
|
184
|
184
512060291 Cable-ass.200m |
512060291 |
US $42.81 |
||
|
187
|
187
512060298 Support solen. *solen. support |
512060298 |
US $12.19 |
||
|
188
|
188
512060313 Protecteur *protector |
512060313 |
US $9.13 |
||
|
189
|
189
512060338 Plaque acous *noise shield |
512060338 |
US $17.29 |
||
|
190
|
190
512060341 Mousse acous *noise foam |
512060341 |
US $17.29 |
||
|
191
|
191
512060342 Mousse acous *noise foam |
512060342 |
US $17.29 |
||
|
192
|
192
512060347 Boyau forme *hose-formed |
512060347 |
US $29.53 |
||
|
194
|
194
512060353 Boyau forme *hose-formed |
512060353 |
US $21.39 |
||
|
195
|
195
512060355 Boyau forme *hose-formed |
512060355 |
US $22.39 |
||
|
207
|
207
512060448 RUBBER MOUNT |
512060448 |
US $56.53 |
||
|
208
|
208
512060616 THROTTLE HANDLE |
512060616 |
US $84.22 |
||
|
209
|
209
512060469 Support moteur *engine support |
512060469 |
US $29.53 |
||
|
210
|
210
512060478 Support pto ar *support pto re |
512060478 |
US $28.51 |
||
|
215
|
215
512060559 REAR SUPPORT, MAG |
512060559 |
US $28.51 |
||
|
216
|
216
512060574 HEAT SHIELD |
512060574 |
US $7.09 |
||
|
217
|
217
512060575 HEAT SHIELD |
512060575 |
US $7.09 |
||
|
218
|
218
512060576 STOPPER SUPPORT |
512060576 |
US $26.49 |
||
|
222
|
222
512060671 PLASTIC NUT |
512060671 |
US $0.97 |
||
|
224
|
224
512060680 CALIBRATED MODULE, 600 |
512060680 |
US $838.41 |
||
|
227
|
227
512060699
Front Support, Pto
|
512060699 |
— | ||
|
231
|
231
512060729 RUBBER MOUNT |
512060729 |
US $70.19 |
||
|
232
|
232
512060627 STOPPER |
512060627 |
US $9.13 |
||
|
234
|
234
512060859 UPPER HOUSING |
512060859 |
US $8.13 |
||
|
236
|
236
512060860 LOWER HOUSING |
512060860 |
US $19.94 |
||
|
237
|
237
512060886 THROTTLE CABLE |
512060886 |
US $102.99 |
||
|
246
|
246
512060924 COILS SUPPORT |
512060924 |
US $9.13 |
||
|
248
|
248
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
253
|
253
515175442
Gaine *housing
|
515175442 |
— | ||
|
256
|
256
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
260
|
260
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
269
|
269
515176500 Rondelle *washer |
515176500 |
US $12.22 |
||
|
270
|
270
515177389 STARTER |
515177389 |
US $824.48 |
||
|
272
|
272
572045500 Raccord t 4-6-4*fitting-t 4-6-4 |
572045500 |
US $35.45 |
||
|
276
|
276
732601143 Screw-shoulder |
732601143 |
US $38.90 |
