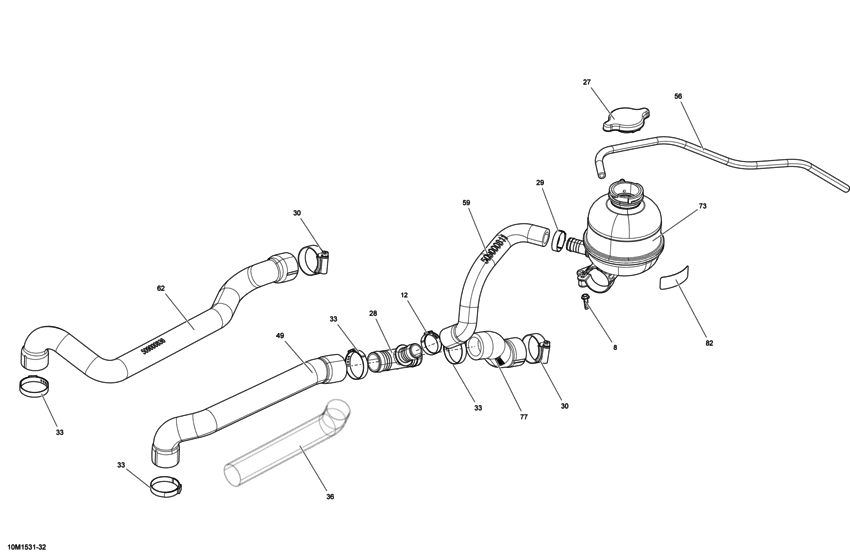

01- Cooling System _10M1531 Diagram Bombardier MX Z
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
241151640 Vis pt.hexagona*screw-pt.hex.f |
241151640 |
US $9.45 |
||
|
12
|
12
293650099 Clamp |
293650099 |
US $5.71 |
||
|
27
|
27
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
28
|
28
509000372 T-fitting |
509000372 |
US $10.52 |
||
|
29
|
29
509000442 Clamp |
509000442 |
US $6.95 |
||
|
30
|
30
509000443 Bride serrage *gear clamp |
509000443 |
US $14.14 |
||
|
33
|
33
509000529 Bride serrage *clamp-gear |
509000529 |
US $43.92 |
||
|
36
|
36
509000513 Gaine *protector tube |
509000513 |
US $24.45 |
||
|
49
|
49
509000697 RADIATOR RETURN HOSE |
509000697 |
US $14.25 |
||
|
56
|
56
509000775 BOYAU *HOSE |
509000775 |
US $11.90 |
||
|
59
|
59
509000811 FILLING HOSE |
509000811 |
US $13.21 |
||
|
62
|
62
509000836 ENGINE OUTLET HOSE |
509000836 |
US $24.45 |
||
|
73
|
73
509000881 COOLING TANK |
509000881 |
US $84.61 |
||
|
77
|
77
509000921 RADIATOR HOSE |
509000921 |
US $13.21 |
||
|
82
|
82
516005904 WARNING DECAL |
516005904 |
US $9.13 |
