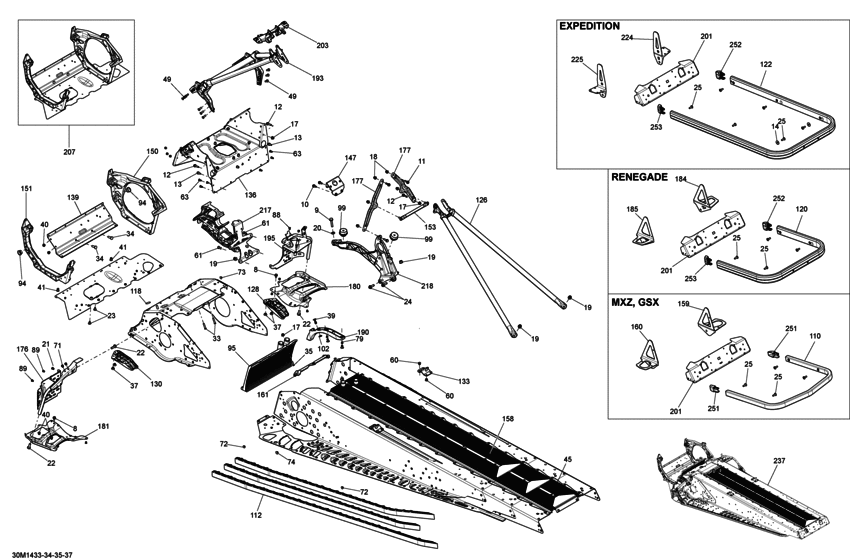

09- Frame 120_30M1433 Diagram Bombardier MX Z
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
9
|
9
207584034 Screw-hex.flange din.6921 s.grip |
207584034 |
US $2.01 |
||
|
10
|
10
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
11
|
11
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
12
|
12
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
13
|
13
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
17
|
17
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
18
|
18
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
19
|
19
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
20
|
20
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
21
|
21
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
22
|
22
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
23
|
23
250000325 Torx-truss m/s gm6047m nylon patch |
250000325 |
US $8.04 |
||
|
24
|
24
250000351 Screw-hex.flange nylon patch din.6921 |
250000351 |
US $13.60 |
||
|
25
|
25
250000402 TORX-TRUSS M/S GM6047M N.PATCH |
250000402 |
US $10.05 |
||
|
33
|
33
250300031 Goujon + sertir*clinch stud |
250300031 |
US $8.04 |
||
|
34
|
34
250300038 Goujon + sertir*clinch stud |
250300038 |
US $4.05 |
||
|
35
|
35
293450275 Ajout *insert |
293450275 |
US $13.50 |
||
|
37
|
37
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
39
|
39
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
40
|
40
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
41
|
41
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
45
|
45
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
49
|
49
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
60
|
60
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
61
|
61
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
|
63
|
63
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
|
71
|
71
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
72
|
72
293730047 Dard 8 mm *dart 8 mm |
293730047 |
US $2.06 |
||
|
73
|
73
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
74
|
74
293730060 BLACK DART 10 MM |
293730060 |
US $5.87 |
||
|
88
|
88
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
89
|
89
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
94
|
94
505073317 LEG CUSHION |
505073317 |
US $6.26 |
||
|
95
|
95
518327907 FRONT RADIATOR ASS Y |
518327907 |
US $402.70 |
||
|
99
|
99
512060295 RUBBER MOUNT |
512060295 |
US $58.62 |
||
|
102
|
102
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
110
|
110
518325481 Pare-choc *rear bumper |
518325481 |
US $103.99 |
||
|
112
|
112
518326942 RH ROLLER |
518326942 |
US $170.29 |
||
|
112
|
112
518326943 LH ROLLER |
518326943 |
US $170.29 |
||
|
118
|
118
518325560 Rondelle *adhesive patch |
518325560 |
US $5.87 |
||
|
126
|
126
518326559 REAR MEMBER |
518326559 |
US $164.17 |
||
|
128
|
128
518325782 Deflecteur dr. *rh deflector |
518325782 |
US $13.89 |
||
|
130
|
130
518325783 Deflecteur ga. *lh deflector |
518325783 |
US $13.89 |
||
|
133
|
133
518325973 Embase arri+re *rear base |
518325973 |
US $17.82 |
||
|
133
|
133
518325974 Embase arri+re *rear base |
518325974 |
US $17.82 |
||
|
136
|
136
518327721
MODULE S *CROSS MEMBER
|
518327721 |
— | ||
| replacement | |||||
|
136
|
136
518328320 MODULE S *CROSS MEMBER |
518328320 |
US $541.59 |
||
|
139
|
139
518326198 Traverse avant *front member |
518326198 |
US $50.97 |
||
|
147
|
147
518326178 ENGINE SUPPORT |
518326178 |
US $57.09 |
||
|
150
|
150
518326328 RH SIDE MEMBER |
518326328 |
US $264.15 |
||
|
151
|
151
518326330 LH SIDE MEMBER |
518326330 |
US $216.21 |
||
|
153
|
153
518326355 CENTER COLUMN SUPPORT |
518326355 |
US $19.92 |
||
|
158
|
158
518326666 REAR RADIATOR ASS Y |
518326666 |
US $675.21 |
||
|
159
|
159
518326654 RH SLIDE SUSPENSION BRACKET |
518326654 |
US $35.65 |
||
|
160
|
160
518326655 LH SLIDE SUSPENSION BRACKET |
518326655 |
US $35.65 |
||
|
161
|
161
518326656 JOINT *SEAL |
518326656 |
US $8.38 |
||
|
176
|
176
518327937 ETRIER GA *LH.STIRUP |
518327937 |
US $151.95 |
||
|
177
|
177
518326848 UPPER COLUMN SUPPORT |
518326848 |
US $12.58 |
||
|
180
|
180
518326937 RENFORT DR *REINFORCEMENT |
518326937 |
US $22.39 |
||
|
181
|
181
518326938 RENFORT GA *REINFORCEMENT |
518326938 |
US $22.39 |
||
|
190
|
190
518326973 FRONT PROTECTOR |
518326973 |
US $16.76 |
||
|
193
|
193
518327565 FRONT MEMBER |
518327565 |
US $284.53 |
||
|
195
|
195
518327014 ETRIER DROIT *RH.STIRUP |
518327014 |
US $151.95 |
||
|
201
|
201
518327105 REAR CAP |
518327105 |
US $19.92 |
||
|
203
|
203
518327145 SUB A SUPPORT |
518327145 |
US $73.41 |
||
|
207
|
207
518328078 E MODULE |
518328078 |
US $457.93 |
||
|
217
|
217
518327475 SUPPORT |
518327475 |
US $317.10 |
||
| replacement | |||||
|
217
|
217
518327487 FRONT SUSPENSION SUPPORT |
518327487 |
US $317.10 |
||
|
218
|
218
518327535
BRETELLE ASS *AS BRACE
|
518327535 |
— | ||
| replacement | |||||
|
218
|
218
415130014 KIT BRETELLE ASS *ASS Y BRACE KIT(inc. two Rubber Mount 512060295) |
415130014 |
US $312.90 |
||
|
237
|
237
415129840 FRAME 120 |
415129840 |
US $3,261.98 |
||
|
251
|
251
520000840 Capuchon *cap |
520000840 |
US $8.38 |
||
