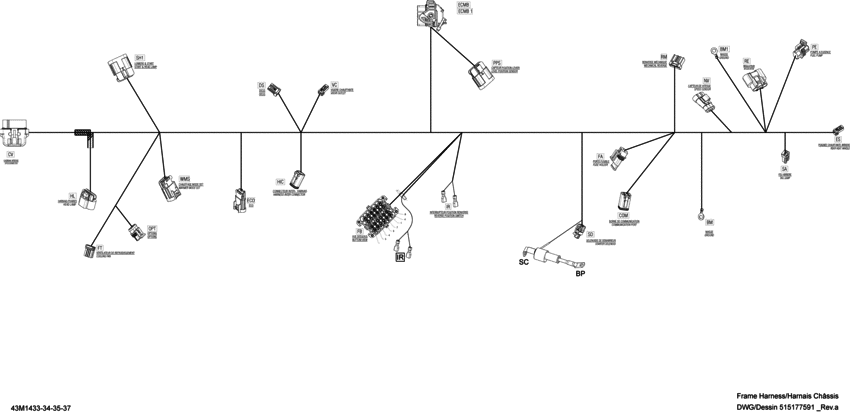

10- Electrical Harness Frame_43M1433 Diagram Bombardier MX Z
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515177591 FRAME HARNESS |
515177591 |
US $390.63 |
||
|
BM
|
BM
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
BM1
|
BM1
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
COM
|
COM
278002896 HOUSING, 6 CIRCUITS |
278002896 |
US $16.92 |
||
|
COM
|
COM
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
COM
|
COM
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
COM
|
COM
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
CV
|
CV
515175801 Logement femel.*housing-female |
515175801 |
US $21.72 |
||
|
CV
|
CV
515175802 Boitier *retainer block |
515175802 |
US $12.29 |
||
|
CV
|
CV
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
CV
|
CV
710000399 Logement femel.*female housing |
710000399 |
from US $16.92 |
||
|
CV
|
CV
515175803 Joint de fil *seal-wire |
515175803 |
US $40.60 |
||
|
CV
|
CV
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
CV
|
CV
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
DS
|
DS
515175495 Logement femel.*housing-female |
515175495 |
US $18.12 |
||
|
DS
|
DS
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
ECMB
|
ECMB
710001591 COUVERCLE *COVER |
710001591 |
US $13.45 |
||
|
ECMB
|
ECMB
710001588 FEMALE TERMINAL HOUSING, 48 CIRCUITS |
710001588 |
US $53.60 |
||
|
ECMB
|
ECMB
710001592 PLUG |
710001592 |
US $2.84 |
||
|
ECMB
|
ECMB
710001589 FEMALE TERMINAL |
710001589 |
US $2.84 |
||
|
ECMB1
|
ECMB1
710001593 PLUG |
710001593 |
US $2.84 |
||
|
ECMB1
|
ECMB1
710001727 FEMALE TERMINAL |
710001727 |
US $4.23 |
||
|
ECO
|
ECO
710002593 CONNECTEUR *HOUSING |
710002593 |
US $11.14 |
||
|
ECO
|
ECO
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
ECO
|
ECO
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
ES
|
ES
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
ES
|
ES
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
FA
|
FA
710001613 Fuse |
710001613 |
US $9.67 |
||
|
FA
|
FA
278001325 Porte fusible *holder-fuse |
278001325 |
US $19.34 |
||
|
FA
|
FA
710000357 Cosse femelle *female terminal |
710000357 |
US $9.61 |
||
|
FB
|
FB
278002824 CASE ASS Y |
278002824 |
US $38.98 |
||
|
FB
|
FB
710000744 Mini-fusible *little fuse |
710000744 |
US $9.67 |
||
|
FB
|
FB
710000746 Mini-fusible *little fuse |
710000746 |
US $9.67 |
||
|
FB
|
FB
710000745 Mini-fusible *little fuse |
710000745 |
US $9.67 |
||
|
FB
|
FB
710001778 RELAY |
710001778 |
US $22.39 |
||
| replacement | |||||
|
FB
|
FB
715900824 RELAY |
715900824 |
US $22.39 |
||
|
FB
|
FB
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
FB
|
FB
278001065 Joint de fil *seal-wire |
278001065 |
US $48.05 |
||
|
FB
|
FB
278002578 TERMINAL |
278002578 |
US $1.34 |
||
|
FB_C
|
FB_C
710000918 Terminal femell*female termina |
710000918 |
US $9.61 |
||
|
FB_C
|
FB_C
710000744 Mini-fusible *little fuse |
710000744 |
US $9.67 |
||
|
FB_C
|
FB_C
710000746 Mini-fusible *little fuse |
710000746 |
US $9.67 |
||
|
FB_C
|
FB_C
710000745 Mini-fusible *little fuse |
710000745 |
US $9.67 |
||
|
FT
|
FT
515175845 Logement de terminal femelle, 4 circ. |
515175845 |
US $9.67 |
||
|
FT
|
FT
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
HIC
|
HIC
515175672 Bloc 4 circ.mal*housing-tab |
515175672 |
US $13.60 |
||
|
HIC
|
HIC
515175677 Cale 4 circ.mal*wedge-4 ways m |
515175677 |
US $6.26 |
||
|
HIC
|
HIC
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
HL
|
HL
515177296 CONNECTEUR *HOUSING |
515177296 |
US $10.47 |
||
|
HL
|
HL
710001225 Bouchon *cap |
710001225 |
US $9.71 |
||
|
HL
|
HL
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
HL
|
HL
710001228 Terminal *terminal |
710001228 |
US $4.23 |
||
|
IR
|
IR
710000082 Cosse femelle *terminal-femal. |
710000082 |
US $9.61 |
||
|
NV
|
NV
409210100 New Genuine Part |
409210100 |
US $2.84 |
||
|
NV
|
NV
710000568 Logement *housing |
710000568 |
US $12.22 |
||
|
NV
|
NV
515176621 Joint de fil *seal-wire |
515176621 |
US $48.80 |
||
|
NV
|
NV
515176164 Cosse male *terminal-male |
515176164 |
US $9.01 |
||
|
OPT
|
OPT
409209600 Logement femel.*housing-femal. |
409209600 |
US $39.95 |
||
|
OPT
|
OPT
515176621 Joint de fil *seal-wire |
515176621 |
US $48.80 |
||
|
OPT
|
OPT
278002307 Female terminal |
278002307 |
US $4.15 |
||
|
PE
|
PE
710001132 Logement *housing |
710001132 |
US $10.85 |
||
|
PE
|
PE
710001133 Verrou *lock |
710001133 |
US $5.87 |
||
|
PE
|
PE
278001482 Joint de fil *seal |
278001482 |
US $8.46 |
||
|
PE
|
PE
278001481 Cosse femelle *terminal-femal |
278001481 |
US $4.49 |
||
|
PPS
|
PPS
710000992 Clip *clip |
710000992 |
US $5.71 |
||
|
PPS
|
PPS
515177150 HOUSING CONNECTOR |
515177150 |
US $9.40 |
||
|
PPS
|
PPS
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
PPS
|
PPS
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
RE
|
RE
710000879 Logement *housing |
710000879 |
US $28.25 |
||
|
RE
|
RE
710000882 Bouchon *cap |
710000882 |
US $12.29 |
||
|
RE
|
RE
710000881 Joint *seal |
710000881 |
US $19.47 |
||
|
RE
|
RE
710000877 Terminal *terminal |
710000877 |
US $48.80 |
||
|
RM
|
RM
515175543 Log.term.femel.*housing-term.female |
515175543 |
US $8.38 |
||
|
RM
|
RM
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
SA
|
SA
515175495 Logement femel.*housing-female |
515175495 |
US $18.12 |
||
|
SC
|
SC
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
SC
|
SC
710000495 Capuchon prot *protector cap |
710000495 |
US $12.22 |
||
|
SD
|
SD
515177192 CONNECTEUR *HOUSING |
515177192 |
US $9.76 |
||
|
SD
|
SD
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
SD
|
SD
710000925 TERMINAL |
710000925 |
US $4.23 |
||
|
SH1
|
SH1
710001929 HOUSING, PACKARD |
710001929 |
US $12.22 |
||
|
SH1
|
SH1
710001225 Bouchon *cap |
710001225 |
US $9.71 |
||
|
SH1
|
SH1
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
SH1
|
SH1
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
SH1
|
SH1
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
SH1
|
SH1
710001223 Terminal *terminal |
710001223 |
US $4.23 |
||
|
VC
|
VC
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
VC
|
VC
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
WMS
|
WMS
710001927 LOGEMENT *HOUSING |
710001927 |
US $9.67 |
||
|
WMS
|
WMS
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
WMS
|
WMS
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
WMS
|
WMS
710001223 Terminal *terminal |
710001223 |
US $4.23 |
||
|
WMS
|
WMS
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
