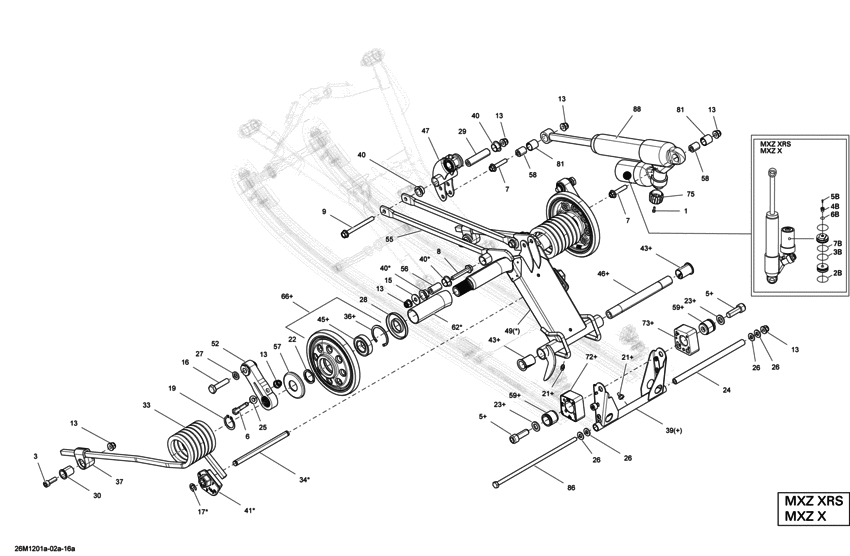

08- Rear Suspension Rear Arm Fixe Diagram Bombardier MX Z
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
205031060 SOCKET SCREW M3 X 10 |
205031060 |
US $10.05 |
||
|
2B
|
2B
415093807 Joint torique *o-ring |
415093807 |
US $30.57 |
||
|
3
|
3
205082554 SOCKET SCREW M8 X 25 |
205082554 |
US $5.44 |
||
|
3B
|
3B
415093806 Bague *ring-stop |
415093806 |
US $14.67 |
||
|
4B
|
4B
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
5
|
5
205523544 Screw-socket hd.din.912 s.grip |
205523544 |
US $3.28 |
||
|
5B
|
5B
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
6
|
6
207085044 Screw-hex.cap din.931 |
207085044 |
US $19.20 |
||
|
6B
|
6B
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
7
|
7
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
7B
|
7B
415093804 Joint torique *o-ring |
415093804 |
US $4.17 |
||
|
8
|
8
207685044 Screw-hex.flange din.6921 |
207685044 |
US $21.80 |
||
|
9
|
9
207688544 Screw-hex.flange din.6921 |
207688544 |
US $4.38 |
||
|
13
|
13
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
15
|
15
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
16
|
16
207204056 CAP SCREW HEX. M10 X 40 |
207204056 |
US $9.55 |
||
|
19
|
19
293370080 RETAINING RING |
293370080 |
US $2.18 |
||
|
21
|
21
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
22
|
22
503189146 Ressort axe *spring-axle |
503189146 |
US $7.33 |
||
|
23
|
23
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
24
|
24
503189156 Axe jumelle *axle-pivot |
503189156 |
US $19.57 |
||
|
25
|
25
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
26
|
26
503192494 RONDELLE *WASHER |
503192494 |
US $20.50 |
||
|
27
|
27
503192496 RONDELLE *WASHER |
503192496 |
US $5 |
||
|
28
|
28
503190434 Joint labyrint.*seal-labyrinth |
503190434 |
US $5.42 |
||
|
29
|
29
503190643 Axe barre *axle-bar |
503190643 |
US $14.71 |
||
|
30
|
30
503190754 Coussinet reten*cushion-retain. |
503190754 |
US $9.72 |
||
| replacement | |||||
|
30
|
30
861805547 Spring Support |
861805547 |
US $10.15 |
||
|
33
|
33
503193158 BLACK LH SPRING, SQUARE |
503193158 |
US $75.96 |
||
|
33
|
33
503193159 BLACK RH SPRING, SQUARE |
503193159 |
US $73.41 |
||
|
36
|
36
415129371 Anneau retenue *circlip |
415129371 |
US $15.79 |
||
|
37
|
37
503191183
Support ressort*support-spring
|
503191183 |
— | ||
| replacement | |||||
|
37
|
37
861805547 Spring Support |
861805547 |
US $10.15 |
||
|
39
|
39
503192823 PIVOT ARM ASS Y |
503192823 |
US $110.13 |
||
|
40
|
40
503191555 Coussinet pivot*swivel-bushing |
503191555 |
US $5.54 |
||
|
43
|
43
503191640 Coussinet *cushion |
503191640 |
US $5.53 |
||
|
45
|
45
503191982 Roulement bille*ball bearing |
503191982 |
US $19.52 |
||
|
46
|
46
503192330 LOWER SHAFT |
503192330 |
US $42.81 |
||
|
47
|
47
503192531 ROCKER |
503192531 |
US $73.41 |
||
|
49
|
49
503193074 REAR ARM ASS`Y |
503193074 |
US $263.13 |
||
|
52
|
52
503193072 EXTENSION ARM ASS Y |
503193072 |
US $73.41 |
||
|
55
|
55
503-192-554
Tige accel. *link rod
|
503-192-554 |
— | ||
|
56
|
56
503192555 AXE BARRE *AXLE-BAR |
503192555 |
US $11 |
||
|
57
|
57
503192592 LABYRINTH RING |
503192592 |
US $4.40 |
||
|
58
|
58
503192606 REAR SHOCK AXLE |
503192606 |
US $9.78 |
||
|
59
|
59
503192749 GUIDE BLOCK |
503192749 |
US $5.53 |
||
|
62
|
62
503192767 BUSHING |
503192767 |
US $14.67 |
||
|
66
|
66
503192808 BLACK WHEEL ASS Y, 155 MM |
503192808 |
US $48.93 |
||
|
72
|
72
503192918 LH CAM BLOCK |
503192918 |
US $12.19 |
||
|
73
|
73
503192919 RH CAM BLOCK |
503192919 |
US $12.19 |
||
|
75
|
75
503193033 SHOCK ADJUSTER KNOB |
503193033 |
US $7.33 |
||
|
81
|
81
505072663 Coussinet *cushion |
505072663 |
US $7.33 |
||
|
86
|
86
503192440 BOLT M8 X 248MM |
503192440 |
US $27.49 |
||
|
88
|
88
503192456 REAR SHOCK |
503192456 |
US $1,003.66 |
||
