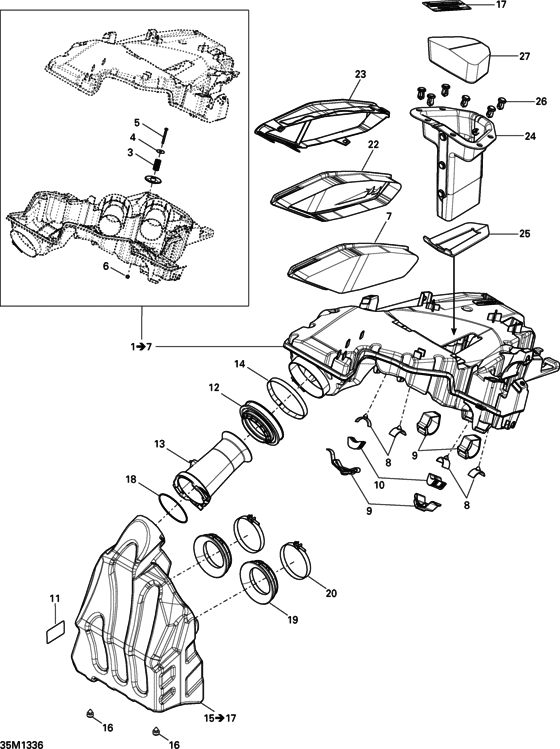

02- Air Intake System Diagram Bombardier MX Z
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
508000623 SECONDARY CHAMBER |
508000623 |
US $142.77 |
||
|
3
|
3
508000576 Spring |
508000576 |
US $7.09 |
||
|
4
|
4
224060201 Flat washer |
224060201 |
US $17.20 |
||
|
5
|
5
205444086 Screw-socket bn.hd.gm6174 |
205444086 |
US $21.90 |
||
|
6
|
6
232541414 Nut-stop elastic din.985 |
232541414 |
US $7.50 |
||
|
7
|
7
508000626 Filtre a air *air filter |
508000626 |
US $35.65 |
||
|
8
|
8
508000537 Rubber stopper |
508000537 |
US $7.09 |
||
|
9
|
9
508000532 Velcro-strip |
508000532 |
US $7.09 |
||
|
10
|
10
508000572 Bumper |
508000572 |
US $7.09 |
||
|
11
|
11
516005280 CAUTION DECAL, HOT PARTS |
516005280 |
US $0.02 |
||
|
12
|
12
508000567 Intake adaptor |
508000567 |
US $16.29 |
||
|
13
|
13
508000662 FLUTE |
508000662 |
US $13.21 |
||
|
14
|
14
514052924 Bride serrage *clamp-gear |
514052924 |
US $14.14 |
||
|
15
|
15
508000535 Chambre ass. *chamber ass. |
508000535 |
US $80.55 |
||
|
16
|
16
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
17
|
17
516005876 NOTICE DECAL, AIR INTAKE SILENCER |
516005876 |
US $0.97 |
||
|
18
|
18
293300115 O-ring |
293300115 |
US $4.61 |
||
|
19
|
19
508000721 INTAKE ADAPTER |
508000721 |
US $20.37 |
||
|
20
|
20
508000346 Clamp |
508000346 |
US $10.52 |
||
|
22
|
22
415129377 Mousse filtre *foam filter |
415129377 |
US $44.10 |
||
|
23
|
23
415129376 Housse filtre *filter cover |
415129376 |
US $83.22 |
||
|
24
|
24
508000633 Conduit air *air duct |
508000633 |
US $119.31 |
||
|
25
|
25
508000637 Mousse *foam |
508000637 |
US $12.19 |
||
|
26
|
26
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
26
|
26
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
27
|
27
508000634 Mousse admis. *foam-air intake |
508000634 |
US $17.29 |
||
