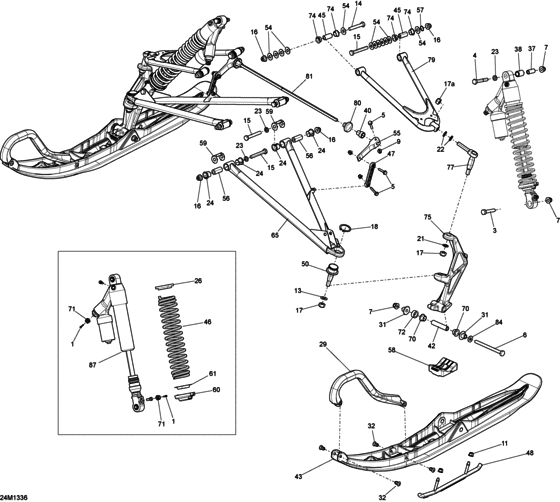

07- Front Suspension And Ski Diagram Bombardier MX Z
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
250000644 SCREW-SOCKET HD.DIN.912A2 |
250000644 |
US $13.60 |
||
|
3
|
3
207005554 HEX SCREW M10 X 55 |
207005554 |
US $9.55 |
||
|
4
|
4
207006544 Screw-hex.cap iso.4014 |
207006544 |
US $19.15 |
||
|
5
|
5
207663056 HEX FLANGED SCREW M6 X 30 |
207663056 |
US $5.71 |
||
|
6
|
6
230003054 HEX SCREW M10 X 130 |
230003054 |
US $11.17 |
||
|
7
|
7
233201464 HEX. ELAST. FLANGED NUT M10 |
233201464 |
US $9.55 |
||
|
9
|
9
233261466 HEX. FLANGED ELASTIC NUT M6 |
233261466 |
US $20.80 |
||
|
11
|
11
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
13
|
13
503192491 RONDELLE *WASHER |
503192491 |
US $29.25 |
||
|
14
|
14
250000290 Screw-hex.cap m10 x 60 iso.8765 |
250000290 |
US $2.72 |
||
| replacement | |||||
|
14
|
14
250001023 Screw-hex.cap m10 x 60 iso.8765 |
250001023 |
US $2.72 |
||
|
15
|
15
250000291 Screw-hex.cap m10 x 70 iso.8765 |
250000291 |
US $1.63 |
||
|
16
|
16
250100088 Ecrou m10 *nut m10 |
250100088 |
US $4.10 |
||
|
17
|
17
232521464 HEX ELASTIC NUT M12 |
232521464 |
US $10.88 |
||
|
17a
|
17a
250100089 Ecrou m12 *nut m12 |
250100089 |
US $3.60 |
||
|
18
|
18
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
21
|
21
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
22
|
22
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
23
|
23
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
24
|
24
503191766 Coussinet *cushion |
503191766 |
US $5.53 |
||
|
29
|
29
505073138 BLACK HANDLE |
505073138 |
US $33.61 |
||
|
31
|
31
505071781 Coussinet *cushion |
505071781 |
US $18.16 |
||
|
32
|
32
505071812 Attache *retainer |
505071812 |
US $5.44 |
||
|
32b
|
32b
505072133 Attache *retainer |
505072133 |
US $6.19 |
||
|
40
|
40
505072064 Coussinet *bushing |
505072064 |
US $2.18 |
||
|
42
|
42
506133300 Entretoise *spacer |
506133300 |
US $22.44 |
||
|
43
|
43
505072205 Skipilot5.7x *skipilot5.7x |
505072205 |
US $152.95 |
||
|
45
|
45
505072143 Douille *bushing |
505072143 |
US $9.93 |
||
|
46
|
46
505073272 BRONZE SPRING |
505073272 |
US $61.15 |
||
|
47
|
47
505072204 Joint *link |
505072204 |
US $22.39 |
||
|
48
|
48
860200031
Ens.lisse extr.*extr. runner
|
860200031 |
— | ||
|
50
|
50
505072682 Joint rotule *ball joint |
505072682 |
US $70.45 |
||
| replacement | |||||
|
50
|
50
505073636 BALL JOINT |
505073636 |
US $61.15 |
||
|
54
|
54
505072392 Rondelle *washer |
505072392 |
US $5.25 |
||
|
55
|
55
505072394 Levier stabil.u*lever-stabil.mach. |
505072394 |
US $15.90 |
||
|
56
|
56
505072401 Douille alum. *bushing-alum. |
505072401 |
US $15.90 |
||
|
57
|
57
505072448 Joint torique *o ring |
505072448 |
US $2.55 |
||
|
58
|
58
505072594 stopper-ski |
505072594 |
US $20.49 |
||
|
59
|
59
505072634 Plaque d usure *wear plate |
505072634 |
US $5.03 |
||
|
60
|
60
505072635 Butee ressort *spring stopper |
505072635 |
US $13.45 |
||
|
61
|
61
706200793 CAP |
706200793 |
US $5.87 |
||
|
65
|
65
505072654 RH LOWER ARM |
505072654 |
US $254.97 |
||
|
65
|
65
505072655 LH LOWER ARM |
505072655 |
US $254.97 |
||
|
70
|
70
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
71
|
71
505072753 ADJUSTMENT KNOB |
505072753 |
US $2.01 |
||
|
72
|
72
505072807 SPACER |
505072807 |
US $17.12 |
||
|
74
|
74
505073018 COUSSINET PIVOT*SWIVEL-BUSHING |
505073018 |
US $7.33 |
||
|
75
|
75
505073273 BRONZE LH SKI LEG |
505073273 |
US $208.05 |
||
|
75
|
75
505073274 BRONZERH SKI LEG |
505073274 |
US $208.05 |
||
|
77
|
77
505073316
UPPER BALL JOINT
|
505073316 |
— | ||
|
79
|
79
505073322 LH UPPER ARM |
505073322 |
US $194.79 |
||
|
79
|
79
505073323 RH UPPER ARM |
505073323 |
US $194.79 |
||
|
80
|
80
572091300 Bouchon *cap |
572091300 |
US $8.55 |
||
|
81
|
81
505072602 Stabilisateur *stabilisator |
505072602 |
US $84.22 |
||
|
84
|
84
503192496 RONDELLE *WASHER |
503192496 |
US $5 |
||
|
87
|
87
505073145 RH FFRONT SHOCK |
505073145 |
US $1,676.86 |
||
|
87
|
87
505073146 LH FFRONT SHOCK |
505073146 |
US $1,676.86 |
||
|
87b
|
87b
XXX
Not Sold
|
XXX |
— | ||
|
87c
|
87c
415093807 Joint torique *o-ring |
415093807 |
US $30.57 |
||
|
87d
|
87d
415093806 Bague *ring-stop |
415093806 |
US $14.67 |
||
|
87e
|
87e
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
87f
|
87f
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
87g
|
87g
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
87h
|
87h
415093804 Joint torique *o-ring |
415093804 |
US $4.17 |
||
