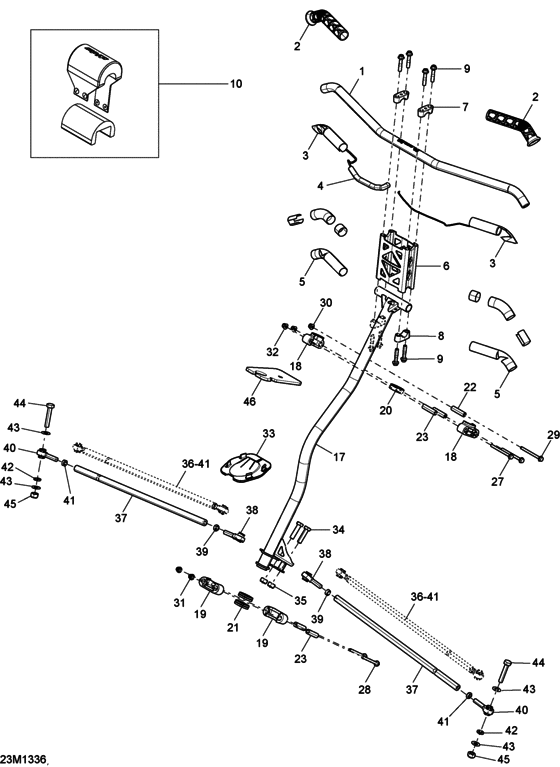

07- Steering Diagram Bombardier MX Z
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506152537 HANDLE BAR |
506152537 |
US $152.95 |
||
|
2
|
2
506152486 GRIP |
506152486 |
US $17.09 |
||
|
3
|
3
506152578 HEATING ELEMENT 20 WATT |
506152578 |
US $30.57 |
||
|
5
|
5
506152611 ISOLANT *ISOLANT |
506152611 |
US $7.33 |
||
|
6
|
6
506152580 BRONZE HANDLEBAR EXTENSION |
506152580 |
US $134.61 |
||
|
7
|
7
506152395 Support guidon *steering support |
506152395 |
US $12.22 |
||
|
8
|
8
506152395 Support guidon *steering support |
506152395 |
US $12.22 |
||
|
9
|
9
250000352 Screw hexagonal flange m8 |
250000352 |
US $13.05 |
||
|
10
|
10
506152522 PAD-STEERING |
506152522 |
US $48.93 |
||
|
17
|
17
506152584 BLACK MAIN TUBE |
506152584 |
US $237.63 |
||
|
18
|
18
506152293 Demi logement *half-housing |
506152293 |
US $9.78 |
||
|
19
|
19
506152549 LOWER HALF-HOUSING |
506152549 |
US $55.03 |
||
|
22
|
22
506152297 Douille logem. *bushing-housing |
506152297 |
US $9.78 |
||
|
23
|
23
506152297 Douille logem. *bushing-housing |
506152297 |
US $9.78 |
||
|
25
|
25
293550033
Synthetic grease
|
293550033 |
— | ||
|
27
|
27
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
28
|
28
207667044 Screw-hex.flange din.6921 |
207667044 |
US $1.09 |
||
|
29
|
29
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
30
|
30
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
31
|
31
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
32
|
32
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
33
|
33
506152163 Plaque *plate |
506152163 |
US $11.93 |
||
|
34
|
34
207004034 Screw-hex.cap iso 4014 |
207004034 |
US $2.01 |
||
|
35
|
35
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
36
|
36
506152499 TIE-ROD ASS Y |
506152499 |
US $67.29 |
||
|
37
|
37
506152500 TIE-ROD |
506152500 |
US $55.03 |
||
|
38
|
38
506152081 Joint rotule *ball joint |
506152081 |
US $40.39 |
||
|
39
|
39
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
40
|
40
506152019 Joint rotule *ball joint |
506152019 |
US $44.93 |
||
|
41
|
41
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
42
|
42
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
43
|
43
506152582 RONDELLE *WASHER |
506152582 |
US $5.87 |
||
|
44
|
44
207005554 HEX SCREW M10 X 55 |
207005554 |
US $9.55 |
||
|
45
|
45
250100132 ELASTIC LOCKING NUT M10 |
250100132 |
US $10.14 |
||
|
46
|
46
506152476 COUSSINET *CUSHION |
506152476 |
US $9.78 |
