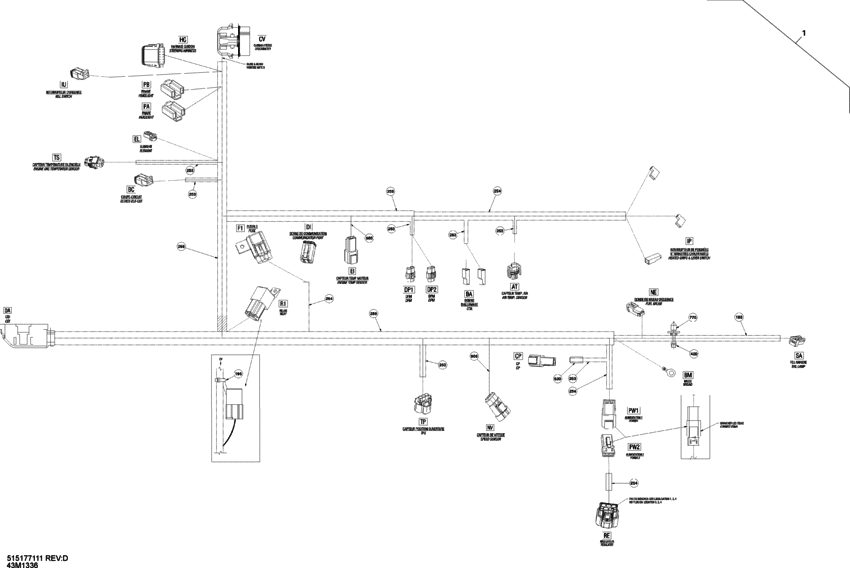

10- Electrical Harness Diagram Bombardier MX Z
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515177111 MAIN HARNESS ASS Y |
515177111 |
US $451.81 |
||
|
188
|
188
409902000 Gaine low temp.vinyl |
409902000 |
US $11.49 |
||
|
196
|
196
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
253
|
253
515175442
Gaine *housing
|
515175442 |
— | ||
|
254
|
254
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
255
|
255
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
256
|
256
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
420
|
420
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
775
|
775
293730040 Dard d ancrage *dart-mount |
293730040 |
US $1.34 |
||
|
AT
|
AT
515176890 FEMALE TERMINAL HOUSING |
515176890 |
US $13.45 |
||
|
AT
|
AT
710001163 Joint de fil *seal-wire |
710001163 |
US $9.61 |
||
|
AT
|
AT
710001164 Terminal femel *terminal-femal |
710001164 |
US $48.80 |
||
|
BA
|
BA
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
BA
|
BA
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
BC
|
BC
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
BC
|
BC
515175675 Verrou femelle *lock-female |
515175675 |
US $29.35 |
||
|
BC
|
BC
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
BM
|
BM
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
CP
|
CP
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
CP
|
CP
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
CP
|
CP
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
CV
|
CV
515175801 Logement femel.*housing-female |
515175801 |
US $21.72 |
||
|
CV
|
CV
515175802 Boitier *retainer block |
515175802 |
US $12.29 |
||
|
CV
|
CV
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
CV
|
CV
710000399 Logement femel.*female housing |
710000399 |
from US $16.92 |
||
|
CV
|
CV
515175803 Joint de fil *seal-wire |
515175803 |
US $40.60 |
||
|
CV
|
CV
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
DA
|
DA
515176223 Logement pt fem*housing-fem te |
515176223 |
US $15.64 |
||
|
DA
|
DA
515176224 Support termina*terminal retai |
515176224 |
US $18.12 |
||
|
DA
|
DA
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
DA
|
DA
515176221 Logement femel.*housing-female |
515176221 |
US $18.02 |
||
|
DA
|
DA
515176222 Joint de fil *seal-wire |
515176222 |
US $16.92 |
||
|
DA
|
DA
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
DA
|
DA
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
DA
|
DA
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
DI
|
DI
515175673 Bloc 6 circ.mal*housing-tab |
515175673 |
US $15.74 |
||
|
DI
|
DI
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
DI
|
DI
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
DI
|
DI
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
DP1
|
DP1
409209200
Logement de raccord femelle (2 circuits)
|
409209200 |
— | ||
|
DP1
|
DP1
409012300 Joint *seal |
409012300 |
US $58.50 |
||
|
DP1
|
DP1
409012100 Cosse femelle *terminal-femal. |
409012100 |
US $58.70 |
||
|
DP2
|
DP2
409209200
Logement de raccord femelle (2 circuits)
|
409209200 |
— | ||
|
DP2
|
DP2
409012300 Joint *seal |
409012300 |
US $58.50 |
||
|
DP2
|
DP2
409012100 Cosse femelle *terminal-femal. |
409012100 |
US $58.70 |
||
|
EI
|
EI
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
EI
|
EI
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
EI
|
EI
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
EL
|
EL
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
EL
|
EL
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
F1
|
F1
278001326 Cap.porte-fusib*cap holder-fuse |
278001326 |
US $48.05 |
||
|
F1
|
F1
278000805 Coussinet *cushion |
278000805 |
US $21.15 |
||
|
F1
|
F1
409003900 Fusible 20a *fuse 20a |
409003900 |
US $21.15 |
||
|
F1
|
F1
278001325 Porte fusible *holder-fuse |
278001325 |
US $19.34 |
||
|
F1
|
F1
710000113 Cosse femelle *terminal-femal. |
710000113 |
US $90.10 |
||
|
HG
|
HG
515175704 Logement fe.12c*housing-fem.12c |
515175704 |
US $24.45 |
||
|
HG
|
HG
515175679 Verrou femelle *lock-female |
515175679 |
US $7.31 |
||
|
HG
|
HG
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
HG
|
HG
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
IP
|
IP
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
IP
|
IP
409010300 Cosse femelle *terminal-femal. |
409010300 |
US $58.70 |
||
|
IP
|
IP
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
IU
|
IU
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
IU
|
IU
515175675 Verrou femelle *lock-female |
515175675 |
US $29.35 |
||
|
IU
|
IU
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
NE
|
NE
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
NE
|
NE
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
NV
|
NV
710000992 Clip *clip |
710000992 |
US $5.71 |
||
|
NV
|
NV
710000568 Logement *housing |
710000568 |
US $12.22 |
||
|
NV
|
NV
515176621 Joint de fil *seal-wire |
515176621 |
US $48.80 |
||
|
NV
|
NV
515176164 Cosse male *terminal-male |
515176164 |
US $9.01 |
||
|
PA
|
PA
515176908 LOGEMENT FEMEL.*HOUSING-FEMALE |
515176908 |
US $14.55 |
||
|
PA
|
PA
515176909 TERMINAL |
515176909 |
US $2.84 |
||
|
PB
|
PB
515176908 LOGEMENT FEMEL.*HOUSING-FEMALE |
515176908 |
US $14.55 |
||
|
PB
|
PB
515176909 TERMINAL |
515176909 |
US $2.84 |
||
|
PW1
|
PW1
278001674 Bloc 2 circ.fem*housing-tab |
278001674 |
US $34.10 |
||
|
PW1
|
PW1
278001672 Cale 2 circ.mal*wedge-2 ways m |
278001672 |
US $4.49 |
||
|
PW1
|
PW1
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
PW2
|
PW2
278001673 Bloc 2 circ.mal*housing-tab |
278001673 |
US $25.31 |
||
|
PW2
|
PW2
278001671 Cale 2 circ.mal*wedge-2 ways m |
278001671 |
US $22.45 |
||
|
PW2
|
PW2
515175567 Cosse femelle *terminal-femal |
515175567 |
US $48.05 |
||
|
R1
|
R1
409209900 Logement fe.5c.*housing-fe.5c. |
409209900 |
US $10.85 |
||
|
R1
|
R1
515177041 RELAY |
515177041 |
US $14.67 |
||
|
R1
|
R1
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
R1
|
R1
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
RE
|
RE
515176530 Connecteur *connector |
515176530 |
US $27.49 |
||
|
RE
|
RE
515176594 Joint *joint |
515176594 |
US $6.26 |
||
|
RE
|
RE
515176531 Terminal *terminal |
515176531 |
US $6.26 |
||
|
SA
|
SA
515175495 Logement femel.*housing-female |
515175495 |
US $18.12 |
||
|
SA
|
SA
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
TP
|
TP
515176176 Log pt fem 3 po*housing-tab 3p |
515176176 |
US $18.12 |
||
|
TP
|
TP
710000402 Joint de fil *seal-wire |
710000402 |
US $58.70 |
||
|
TP
|
TP
710000335 Cosse femelle *female terminal |
710000335 |
US $29.20 |
||
|
TS
|
TS
278001005 Bloc 2 circ.mal*housing-tab |
278001005 |
US $21.42 |
||
|
TS
|
TS
415128501 Joint de fil *seal |
415128501 |
US $2.57 |
||
|
TS
|
TS
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $58.70 |
