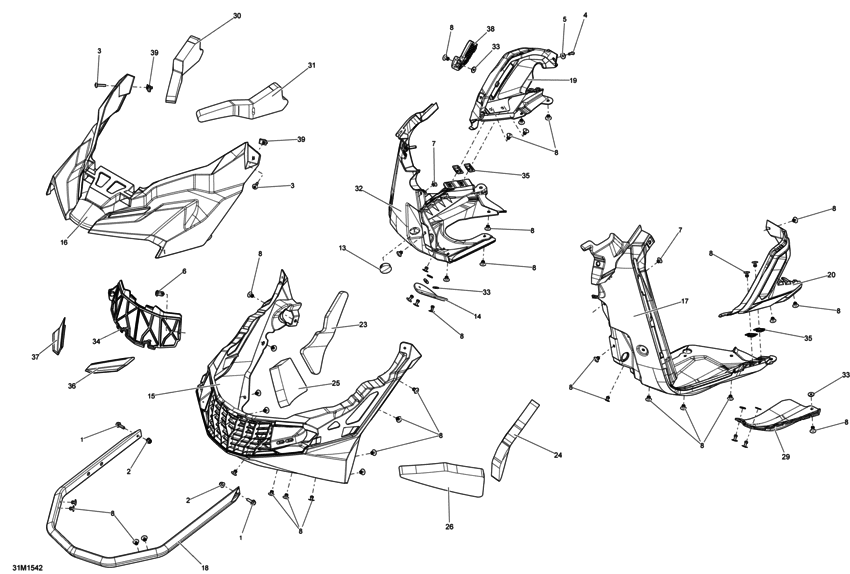

09- Bottom Pan _31M1542 Diagram Bombardier MX Z
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
2
|
2
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
3
|
3
250000587 TORX SCREW M5 X 26 |
250000587 |
US $5.71 |
||
|
4
|
4
250000652 SOCKET SCREW M5 X 16 |
250000652 |
US $1.31 |
||
|
5
|
5
250200025 Rondelle m5 *washer m5 |
250200025 |
US $9.50 |
||
|
6
|
6
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
6
|
6
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
7
|
7
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
8
|
8
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
13
|
13
414916600 Capuchon nylon *plug-nylon |
414916600 |
US $58.70 |
||
|
14
|
14
502006935 Deflecteur neig*snow deflector |
502006935 |
US $46.89 |
||
|
15
|
15
502007404 YELLOW FRONT BOTTOM PAN |
502007404 |
US $130.53 |
||
|
16
|
16
502007397 YELLOW BOTTOM PAN CAP |
502007397 |
US $61.15 |
||
|
17
|
17
502007254 DEEP BLACK LH BOTTOM PAN |
502007254 |
US $76.45 |
||
|
18
|
18
502007176 BLACK FRONT BUMPER |
502007176 |
US $98.69 |
||
| replacement | |||||
|
18
|
18
860201167 PARE-CHOC AV *FR BUMPER |
860201167 |
US $98.69 |
||
|
19
|
19
502007306 DEEP BLACK RH SIDE BOTTOM PAN PANEL |
502007306 |
US $63.50 |
||
|
20
|
20
502007304 PANNEAU *PANEL |
502007304 |
US $48.93 |
||
|
23
|
23
502007243 RH BOTTOM PAN UPPER FOAM |
502007243 |
US $15.83 |
||
|
24
|
24
502007244 LH BOTTOM PAN UPPER FOAM |
502007244 |
US $15.83 |
||
|
25
|
25
502007245 RH BOTTOM PAN LOWER FOAM |
502007245 |
US $13.45 |
||
|
26
|
26
502007246 LH BOTTOM PAN LOWER FOAM |
502007246 |
US $19.23 |
||
|
29
|
29
502007261 GUARD PLATE |
502007261 |
US $42.81 |
||
|
30
|
30
502007263 RH BOTTOM PAN CAP FOAM |
502007263 |
US $13.45 |
||
|
31
|
31
502007264 LH BOTTOM PAN CAP FOAM |
502007264 |
US $13.45 |
||
|
32
|
32
502007253 COQUE DROITE *PAN-BOTTOM RH |
502007253 |
US $76.45 |
||
|
33
|
33
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
34
|
34
517305029 PRE-FILTER |
517305029 |
US $106.05 |
||
|
35
|
35
517305109 PLAQUE *PLATE |
517305109 |
US $4.40 |
||
|
36
|
36
517305122 BOUCHON *CAP |
517305122 |
US $5.27 |
||
|
37
|
37
517305123 BOUCHON *CAP |
517305123 |
US $5.27 |
||
|
38
|
38
517305280 STOPPER BUMPER |
517305280 |
US $15.90 |
||
|
39
|
39
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
