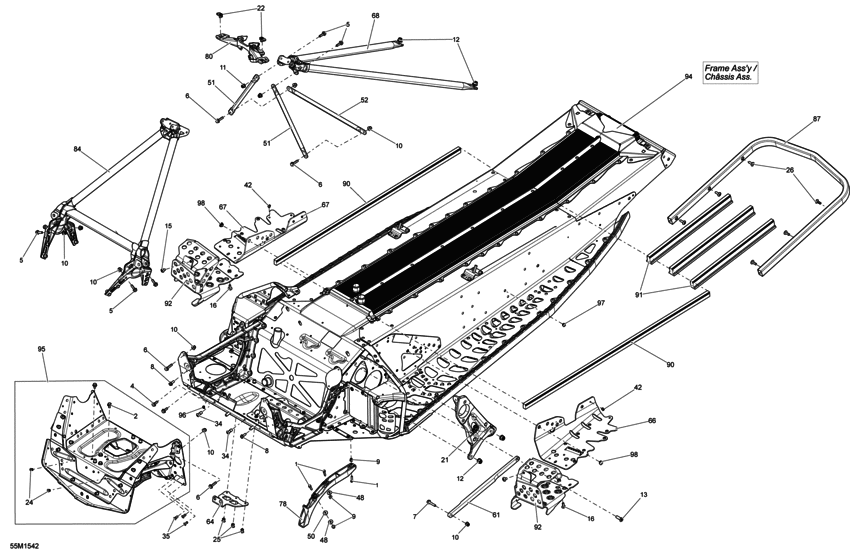

09- Frame And Components _55M1542 Diagram Bombardier MX Z
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207152044 Screw-hex.cap din.933 |
207152044 |
US $11.70 |
||
|
2
|
2
207561044 Screw-hex.flange din.6921 s.grip |
207561044 |
US $45.55 |
||
|
4
|
4
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
5
|
5
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
6
|
6
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
7
|
7
207663034 Screw-hex.flange din.6921 |
207663034 |
US $10.05 |
||
|
8
|
8
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
9
|
9
233251434 Nut-flange elastic din.6926 |
233251434 |
US $10.40 |
||
|
10
|
10
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
11
|
11
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
12
|
12
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
13
|
13
250000143 Screw-torx ctsk.fl.hd.s.grip m8 x 25 |
250000143 |
from US $6.40 |
||
|
15
|
15
250000325 Torx-truss m/s gm6047m nylon patch |
250000325 |
US $8.04 |
||
|
16
|
16
250000365 Torx-truss m/s tcp nylon patch m6 x 16 |
250000365 |
US $13.60 |
||
|
21
|
21
518328346 PULLEY SUPPORT |
518328346 |
US $118.29 |
||
|
22
|
22
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
24
|
24
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
25
|
25
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
26
|
26
250000402 TORX-TRUSS M/S GM6047M N.PATCH |
250000402 |
US $10.05 |
||
|
34
|
34
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
|
35
|
35
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
|
42
|
42
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
48
|
48
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
50
|
50
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
51
|
51
518325114 Support colonne*support |
518325114 |
US $19.92 |
||
|
52
|
52
518325115 Support colonne*upper column |
518325115 |
US $19.92 |
||
|
61
|
61
518326118 Bretelle *link |
518326118 |
US $54.03 |
||
|
64
|
64
518326466 MODULE REINFORCEMENT |
518326466 |
US $27.49 |
||
|
66
|
66
518327131 LH BRACKET |
518327131 |
US $91.77 |
||
|
67
|
67
518327132 RH BRACKET |
518327132 |
US $91.77 |
||
|
68
|
68
518326559 REAR MEMBER |
518326559 |
US $164.17 |
||
|
78
|
78
518326973 FRONT PROTECTOR |
518326973 |
US $16.76 |
||
|
80
|
80
518327145 SUB A SUPPORT |
518327145 |
US $73.41 |
||
|
84
|
84
518327565 FRONT MEMBER |
518327565 |
US $284.53 |
||
|
87
|
87
518327637 BLACK REAR BUMPER |
518327637 |
US $110.13 |
||
|
90
|
90
518328040 FRONT PROTECTOR |
518328040 |
US $27.49 |
||
|
91
|
91
518328041 REAR PROTECTOR |
518328041 |
US $27.49 |
||
|
92
|
92
518328106 RH FOOTREST |
518328106 |
US $197.85 |
||
|
92
|
92
518328107 LH FOOTREST |
518328107 |
US $197.85 |
||
|
94
|
94
415129959 FRAME ASS Y, RACING |
415129959 |
US $3,523.10 |
||
|
95
|
95
518328551 S MODULE *CROSS MEMBER |
518328551 |
US $612.99 |
||
|
96
|
96
293730053 BLACK DART 5 MM |
293730053 |
US $5.87 |
||
|
97
|
97
293730047 Dard 8 mm *dart 8 mm |
293730047 |
US $2.06 |
||
|
98
|
98
293730060 BLACK DART 10 MM |
293730060 |
US $5.87 |
