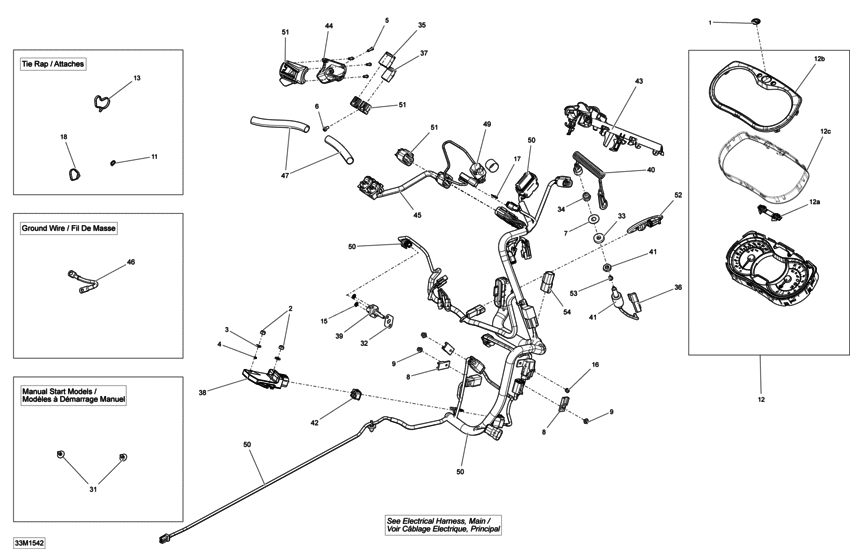

10- Electrical System _33M1542 Diagram Bombardier MX Z
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
219902677
Logo brp *brp logo
|
219902677 |
— | ||
| replacement | |||||
|
1
|
1
516006224 BRP Logo, 20mm |
516006224 |
US $13.45 |
||
|
2
|
2
232561434 Nut-stop elastic din.985 |
232561434 |
US $2.60 |
||
|
3
|
3
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
4
|
4
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
5
|
5
250000671 SCREW TYPE 8-18 HI-LO TORX T-20 |
250000671 |
US $1.31 |
||
|
6
|
6
250000690 PAN SCREW FORMING, 7500C |
250000690 |
US $2.72 |
||
|
7
|
7
250200032 Rondelle *washer |
250200032 |
US $65.80 |
||
|
8
|
8
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
9
|
9
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
11
|
11
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
12
|
12
515177769 Speedometer |
515177769 |
US $490.57 |
||
|
12a
|
12a
415129355 Bouton indica*button speedometer |
415129355 |
US $21.23 |
||
|
12b
|
12b
415129348 Anneau cadran *ring-gauge |
415129348 |
US $13.46 |
||
|
12c
|
12c
415129349 Lentille *lens |
415129349 |
US $25.38 |
||
|
13
|
13
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
15
|
15
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
16
|
16
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
17
|
17
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
18
|
18
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
31
|
31
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
32
|
32
508000769 JOINT *RING |
508000769 |
US $5.07 |
||
|
33
|
33
510004418 Rondelle *washer |
510004418 |
US $73.30 |
||
|
34
|
34
515145900 Ecrou inter. *nut-switch |
515145900 |
US $52.35 |
||
|
35
|
35
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
36
|
36
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
37
|
37
515175846 Logement *housing |
515175846 |
US $9.67 |
||
|
38
|
38
515176364 Regulator-volt |
515176364 |
US $145.83 |
||
|
39
|
39
515176366 Capteur temp. *sensor-air |
515176366 |
US $21.42 |
||
|
40
|
40
515176462 Capuchon ass. *cap-assy. |
515176462 |
US $34.65 |
||
|
41
|
41
515175653 Inter.frein *switch-brake |
515175653 |
US $21.42 |
||
|
42
|
42
515176681 Verrou femelle*lock female |
515176681 |
US $17.82 |
||
|
43
|
43
515177134 CONNECTOR PLATE |
515177134 |
US $13.60 |
||
|
44
|
44
515177149 LH SWITCH HOUSING PLATE |
515177149 |
US $16.76 |
||
|
45
|
45
515177154 DOUBLE SWITCH MODULE |
515177154 |
US $70.35 |
||
|
46
|
46
515177289 GROUND WIRE |
515177289 |
US $22.39 |
||
|
47
|
47
415129879 PROTECTOR TUBE |
415129879 |
US $11.49 |
||
|
49
|
49
515177454 KILL SWITCH |
515177454 |
US $57.09 |
||
|
50
|
50
515177567 MAIN HARNESS |
515177567 |
US $451.81 |
||
|
51
|
51
515177678 LH SWITCH HOUSING |
515177678 |
US $227.43 |
||
|
52
|
52
515177813 TEMPERATURE SENSOR |
515177813 |
US $90.73 |
||
|
53
|
53
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
54
|
54
710003006 LOGEMENT *HOUSING |
710003006 |
US $9.67 |
||
