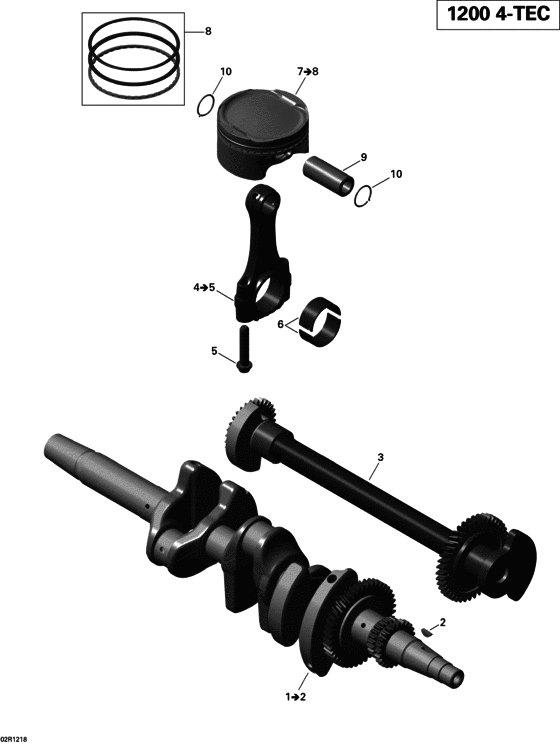

01- Crankshaft, Pistons And Balance Shaft Diagram Bombardier MX Z
- Year
- 2012
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420819796 CRANKSHAFT ASS Y |
420819796 |
US $2,163.40 |
||
|
2
|
2
420246570 Clavette *key-woodruff |
420246570 |
US $21.85 |
||
|
3
|
3
420-820-057
Arbre balancem.*balance shaft assy.
|
420-820-057 |
— | ||
|
4
|
4
420917645 Connecting rod assembly |
420917645 |
US $232.53 |
||
|
5
|
5
420641475 Connecting rod screw m9 x 1 |
420641475 |
US $19.40 |
||
|
6
|
6
420933842 Plain bearing |
420933842 |
US $18.33 |
||
|
7
|
7
420891890 Piston assembly 90.958 mm |
420891890 |
US $159.09 |
||
|
8
|
8
420296774 Piston ring set |
420296774 |
US $93.60 |
||
|
9
|
9
420216274 Piston Pin |
420216274 |
US $32.61 |
||
|
10
|
10
420245436 Circlip #22 *circlip-#22 |
420245436 |
US $6.53 |
