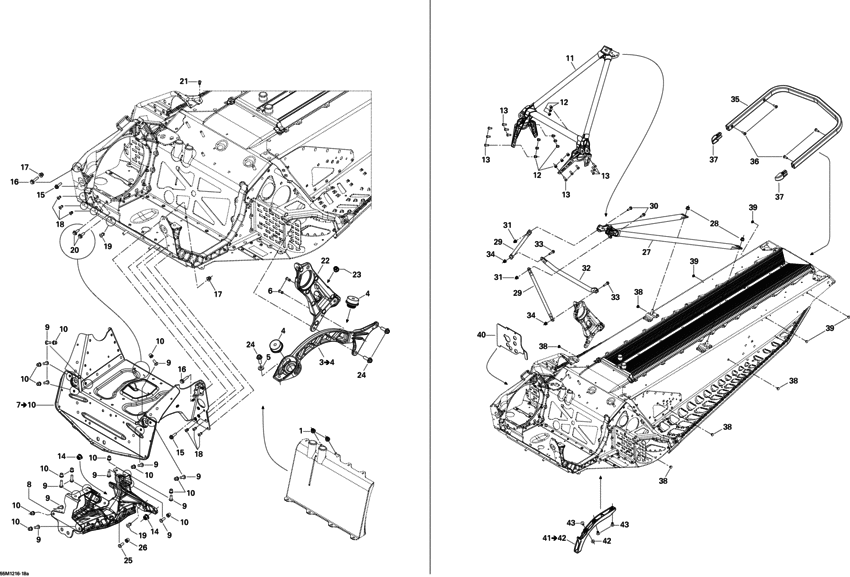

09- Frame And Components Diagram Bombardier MX Z
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
3
|
3
518-326-336
Bretelle ass *as brace
|
518-326-336 |
— | ||
|
4
|
4
512060295 RUBBER MOUNT |
512060295 |
US $58.62 |
||
|
5
|
5
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
6
|
6
390407200 Rivet-pop 3/16 *rivet-pop 3/16 |
390407200 |
US $47 |
||
|
7
|
7
518325924
Module s *cross member
|
518325924 |
— | ||
|
8
|
8
518325925
Support *support
|
518325925 |
— | ||
| replacement | |||||
|
8
|
8
518327487 FRONT SUSPENSION SUPPORT |
518327487 |
US $317.10 |
||
|
9
|
9
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
10
|
10
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
11
|
11
518326970 FRONT MEMBER |
518326970 |
US $217.23 |
||
|
12
|
12
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
13
|
13
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
14
|
14
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
15
|
15
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
16
|
16
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
17
|
17
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
18
|
18
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
|
19
|
19
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
|
20
|
20
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
21
|
21
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
22
|
22
518326192
DRIVEN PULLEY SUPPORT
|
518326192 |
— | ||
|
23
|
23
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
24
|
24
250000351 Screw-hex.flange nylon patch din.6921 |
250000351 |
US $13.60 |
||
|
25
|
25
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
26
|
26
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
27
|
27
518326559 REAR MEMBER |
518326559 |
US $164.17 |
||
|
28
|
28
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
29
|
29
518325114 Support colonne*support |
518325114 |
US $19.92 |
||
|
30
|
30
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
31
|
31
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
32
|
32
518326657 CENTER COLUMN SUPPORT |
518326657 |
US $18.85 |
||
|
33
|
33
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
34
|
34
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
35
|
35
518325481 Pare-choc *rear bumper |
518325481 |
US $103.99 |
||
|
36
|
36
250000402 TORX-TRUSS M/S GM6047M N.PATCH |
250000402 |
US $10.05 |
||
|
37
|
37
520000840 Capuchon *cap |
520000840 |
US $8.38 |
||
|
38
|
38
293730047 Dard 8 mm *dart 8 mm |
293730047 |
US $2.06 |
||
|
39
|
39
293730053 BLACK DART 5 MM |
293730053 |
US $5.87 |
||
|
40
|
40
518325418 Deflecteur *heat shield |
518325418 |
US $16.76 |
||
|
41
|
41
518326973 FRONT PROTECTOR |
518326973 |
US $16.76 |
||
|
42
|
42
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
43
|
43
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
