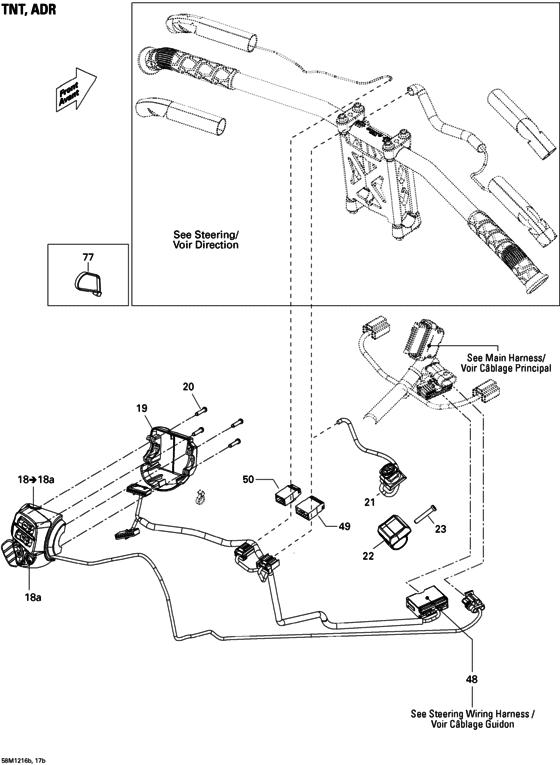

10- Electrical Accessories, Steering Tnt Diagram Bombardier MX Z
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
18
|
18
515-177-019
Logement *housing
|
515-177-019 |
— | ||
|
18a
|
18a
515176088 Bouton *switch |
515176088 |
US $23.63 |
||
|
19
|
19
515175926 Plate (cover) house-switch lh |
515175926 |
US $17.37 |
||
|
20
|
20
250000263 Screw type #8-18 hi-lo torx |
250000263 |
US $13.40 |
||
|
21
|
21
515177061 KILL SWITCH |
515177061 |
US $79.53 |
||
|
22
|
22
515176825 Support *support |
515176825 |
US $9.40 |
||
|
23
|
23
250000263 Screw type #8-18 hi-lo torx |
250000263 |
US $13.40 |
||
|
48
|
48
515176867 STEERING WIRING HARNESS ASS Y |
515176867 |
US $92.77 |
||
|
49
|
49
515175817 Log.pt male .*housing-term.male |
515175817 |
US $8.38 |
||
|
50
|
50
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
77
|
77
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
77
|
77
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
77
|
77
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
77
|
77
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
77
|
77
293750027 Tie rap *tie-rap |
293750027 |
US $39.30 |
