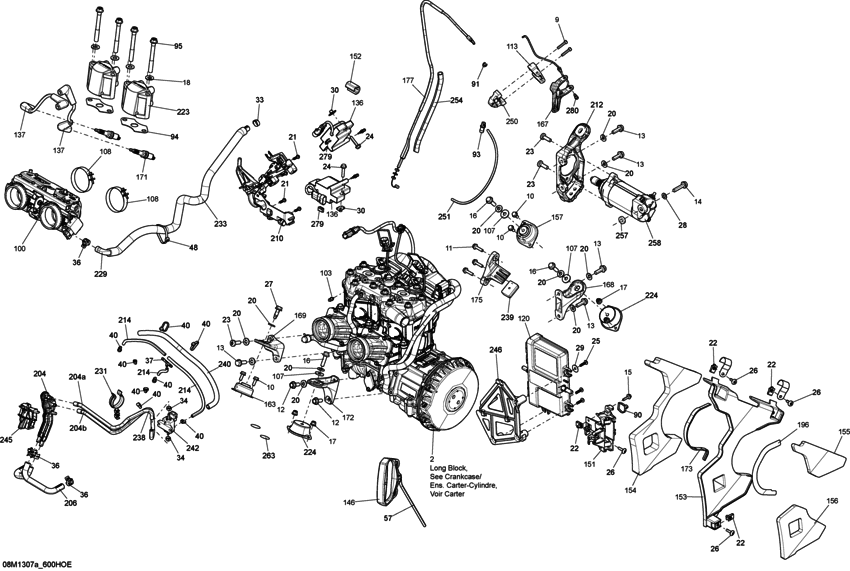

01- Engine And Engine Support 600 Diagram Bombardier MX Z
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
XXX
Not Sold
|
XXX |
— | ||
|
9
|
9
205052544 Screw-socket hd.din.912 |
205052544 |
US $21.40 |
||
|
10
|
10
207561644 Screw-hex.flange din.6921 s.grip |
207561644 |
US $61.25 |
||
|
11
|
11
207562544 Screw-hex.flange din.6921 s.grip |
207562544 |
US $21.80 |
||
|
12
|
12
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
13
|
13
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
14
|
14
207583544 Screw-hex.flange din.6921 s.grip |
207583544 |
US $5.71 |
||
|
15
|
15
207652044 Screw-hex.flange din.6921 |
207652044 |
US $2.45 |
||
|
16
|
16
207683044 Screw-hex.flange din.6921 |
207683044 |
US $21.80 |
||
|
17
|
17
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
18
|
18
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
20
|
20
250200146 CONICAL SPRING WASHER M8 |
250200146 |
US $1.31 |
||
|
21
|
21
241151640 Vis pt.hexagona*screw-pt.hex.f |
241151640 |
US $9.45 |
||
|
22
|
22
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
23
|
23
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
24
|
24
250000253 Screw-hex.flange din.6921 nylon patch |
250000253 |
US $14.35 |
||
|
25
|
25
250000297 Torx-screw truss head pt.k50 x 20 |
250000297 |
US $2.72 |
||
|
26
|
26
250000528 TORX-TRUSS M/S NYLON PATCH M5X |
250000528 |
US $13.60 |
||
|
27
|
27
250000570 HEX. SCREW M8 |
250000570 |
US $2.01 |
||
|
28
|
28
250200008 Washer-flat din.125a teflon-coat |
250200008 |
US $24.55 |
||
|
29
|
29
250200040 Rondelle plate *flat washer |
250200040 |
US $7.29 |
||
|
30
|
30
293100003 Ecrou a souder *nut-weld. |
293100003 |
US $58.56 |
||
|
33
|
33
293650046 Bride serrage *clamp-oetiker |
293650046 |
US $19.15 |
||
|
34
|
34
293650043 Bride serrage *clamp-oetiker |
293650043 |
US $22.55 |
||
|
36
|
36
293650214 NORMA SPRING CLAMP |
293650214 |
US $17.58 |
||
|
37
|
37
293710068 Raccord en t *fitting-t |
293710068 |
US $104.70 |
||
|
40
|
40
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
48
|
48
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
90
|
90
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
91
|
91
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
93
|
93
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
94
|
94
420430930 Joint *gasket |
420430930 |
US $8.13 |
||
|
95
|
95
420441187 Torx-flange screw |
420441187 |
US $17.29 |
||
|
100
|
100
420889197 Carter accelera*throttle body |
420889197 |
US $1,216.84 |
||
|
103
|
103
420924724 HOSE NIPPLE |
420924724 |
US $16.42 |
||
|
107
|
107
503183200 Washer-yellow |
503183200 |
US $42.30 |
||
|
108
|
108
293650158 Bride *clamp |
293650158 |
US $10.47 |
||
|
113
|
113
512059969 UPPER HOUSING |
512059969 |
US $78.49 |
||
|
120
|
120
512-060-868
Module calibre *calib. module
|
512-060-868 |
— | ||
|
136
|
136
512060810 IGNITION COIL |
512060810 |
US $116.25 |
||
|
137
|
137
512060094
Cable bougie *ignition cable
|
512060094 |
— | ||
| replacement | |||||
|
137
|
137
512061126 CABLE BOUGIE *IGNITION CABLE |
512061126 |
US $31.25 |
||
|
146
|
146
512060136 Poignee demarr.*starter grip |
512060136 |
US $14.25 |
||
|
151
|
151
512060298 Support solen. *solen. support |
512060298 |
US $12.19 |
||
|
152
|
152
512060313 Protecteur *protector |
512060313 |
US $9.13 |
||
|
153
|
153
512060339 Plaque acous *noise shield |
512060339 |
US $17.29 |
||
|
154
|
154
512060343 Mousse acous *noise foam |
512060343 |
US $18.33 |
||
|
155
|
155
512060344 Mousse acous *noise foam |
512060344 |
US $9.13 |
||
|
156
|
156
512060362 Mousse acous *noise foam |
512060362 |
US $12.19 |
||
|
157
|
157
512060387 Tampon ancrage *rubber mount |
512060387 |
US $51.97 |
||
|
163
|
163
512060448 RUBBER MOUNT |
512060448 |
US $56.53 |
||
|
167
|
167
512060618 THROTTLE HANDLE |
512060618 |
US $85.65 |
||
|
168
|
168
512060469 Support moteur *engine support |
512060469 |
US $29.53 |
||
|
169
|
169
512060478 Support pto ar *support pto re |
512060478 |
US $28.51 |
||
|
171
|
171
415129375 Bougie *plug-spark |
415129375 |
US $132.48 |
||
|
172
|
172
512060559 REAR SUPPORT, MAG |
512060559 |
US $28.51 |
||
|
173
|
173
512060574 HEAT SHIELD |
512060574 |
US $7.09 |
||
|
175
|
175
512060576 STOPPER SUPPORT |
512060576 |
US $26.49 |
||
|
177
|
177
512060624 THROTTLE CABLE |
512060624 |
US $100.93 |
||
|
196
|
196
512060575 HEAT SHIELD |
512060575 |
US $7.09 |
||
|
204
|
204
512060692 MANIFOLD |
512060692 |
US $39.73 |
||
|
204a
|
204a
512060814 SPRING |
512060814 |
US $5.07 |
||
|
204b
|
204b
512060807 SPRING |
512060807 |
US $5.07 |
||
|
206
|
206
512060695 LH FORMED HOSE |
512060695 |
US $8.13 |
||
|
206
|
206
512060694 RH FORMED HOSE |
512060694 |
US $8.13 |
||
|
210
|
210
512060696 SUPPORT COILS |
512060696 |
US $10.17 |
||
|
212
|
212
512060699
Front Support, Pto
|
512060699 |
— | ||
|
214
|
214
270000374 Boyau 4.3mm *hose-4.3mm |
270000374 |
US $198.15 |
||
|
223
|
223
512060727
Fuel injector
|
512060727 |
— | ||
|
224
|
224
512060729 RUBBER MOUNT |
512060729 |
US $70.19 |
||
|
229
|
229
512060740 FORMED HOSE, OUTPUT |
512060740 |
US $29.53 |
||
|
231
|
231
512060762 HOSE SUPPORT |
512060762 |
US $2.01 |
||
|
233
|
233
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
238
|
238
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
239
|
239
512060627 STOPPER |
512060627 |
US $9.13 |
||
|
240
|
240
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
242
|
242
512060774 SOLENOID VALVE |
512060774 |
US $49.93 |
||
|
245
|
245
512060769 MANIFOLD SUPPORT |
512060769 |
US $10.17 |
||
|
246
|
246
512060858 CALIBRATED MODULE SUPPORT |
512060858 |
US $12.19 |
||
|
250
|
250
512059537 Logement inf. *hous.-lower |
512059537 |
US $69.33 |
||
|
251
|
251
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
254
|
254
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
257
|
257
515176500 Rondelle *washer |
515176500 |
US $12.22 |
||
|
258
|
258
515177389 STARTER |
515177389 |
US $824.48 |
||
|
263
|
263
518325560 Rondelle *adhesive patch |
518325560 |
US $5.87 |
||
|
279
|
279
710000992 Clip *clip |
710000992 |
US $5.71 |
||
|
280
|
280
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
