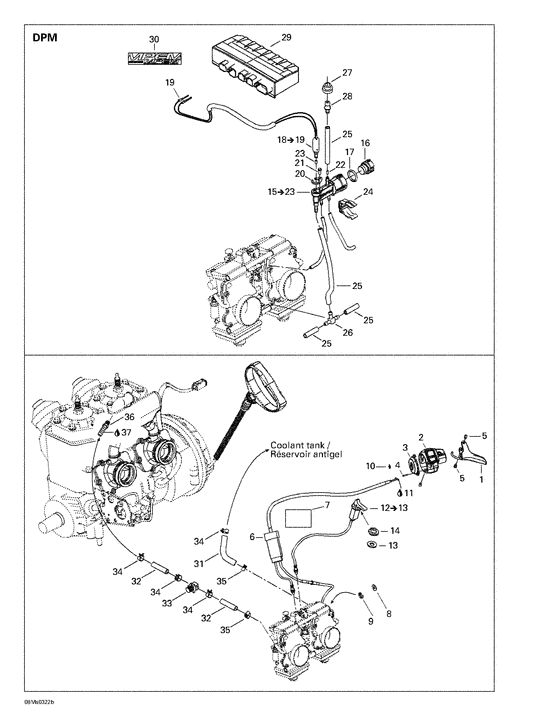

01- engine 2 Diagram Bombardier Summit
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
512059836 Module calibre *calib. module |
512059836 |
US $1,141.36 |
||
|
1
|
1
512059811
Manette ass. *handle-assy
|
512059811 |
— | ||
| replacement | |||||
|
1
|
1
512060302
Manette ass. *handle-assy
|
512060302 |
— | ||
|
2
|
2
512059810
Logement *housing
|
512059810 |
— | ||
| replacement | |||||
|
2
|
2
512060121 Logement *housing |
512060121 |
US $44.83 |
||
|
3
|
3
512059698 Couvercle *cover |
512059698 |
US $11.17 |
||
|
4
|
4
250000098 Screw-thread cut.ph.pan din.7981 |
250000098 |
US $13.95 |
||
|
5
|
5
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
6
|
6
512059789
Cable accelerat*throttle cable
|
512059789 |
— | ||
| replacement | |||||
|
6
|
6
512060084 Cable accelerat*throttle cable |
512060084 |
US $113.88 |
||
|
7
|
7
512059750 Protecteur *protector |
512059750 |
US $8.13 |
||
|
8
|
8
414753300
Rondelle *washer
|
414753300 |
— | ||
|
9
|
9
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
10
|
10
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
11
|
11
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
12
|
12
512059266 Cable etrang. *cable-chokeIncludes 12 - 13.; |
512059266 |
US $82.57 |
||
|
13
|
13
394103300
Washer-lock int.teeth
.; |
394103300 |
— | ||
|
14
|
14
512059094 Ecrou plastique*nut-plastic |
512059094 |
US $5.87 |
||
|
15
|
15
512059700
Collect.pres.as*pression manif. assy
Includes 15 - 23.; |
512059700 |
— | ||
| replacement | |||||
|
15
|
15
512060002 Collect.pres.as*pression manif. assyIncludes 15 - 23.; |
512060002 |
US $241.69 |
||
|
16
|
16
270600009 Capuchon *cap |
270600009 |
US $7.31 |
||
|
17
|
17
293300042 Joint torique *o-ring |
293300042 |
US $8.45 |
||
|
18
|
18
515175701 Cablage collect*harness-press.manif.Includes 18 - 19.; |
515175701 |
US $79.53 |
||
|
19
|
19
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
20
|
20
415061600 Barrure electr.*lock-solenoid |
415061600 |
US $8.13 |
||
|
21
|
21
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
23
|
23
404161825
Gicleur lanceur*starter-jet
|
404161825 |
— | ||
|
24
|
24
512058919 Support *support |
512058919 |
US $14.25 |
||
|
25
|
25
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
26
|
26
414729300 Raccord en t *fitting-t |
414729300 |
US $11.80 |
||
|
27
|
27
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
28
|
28
293710035 Raccord droit *fitting-straig |
293710035 |
US $9.76 |
||
|
29
|
29
512059780 Module calibre *calib. module |
512059780 |
US $1,141.36 |
||
|
30
|
30
516000245
Decal.boit.elec*decal.-elect.box
|
516000245 |
— | ||
|
31
|
31
509000171 Boyau forme *hose-formed |
509000171 |
US $19.57 |
||
|
32
|
32
509000093
Boyau 8mm *hose-8mm
|
509000093 |
— | ||
|
33
|
33
512059324 Soupape 5/16" *valve-5/16 |
512059324 |
US $41.77 |
||
|
34
|
34
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
35
|
35
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
35
|
35
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
36
|
36
293710082 Raccord droit *fitting-straight |
293710082 |
US $8.13 |
||
|
37
|
37
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
