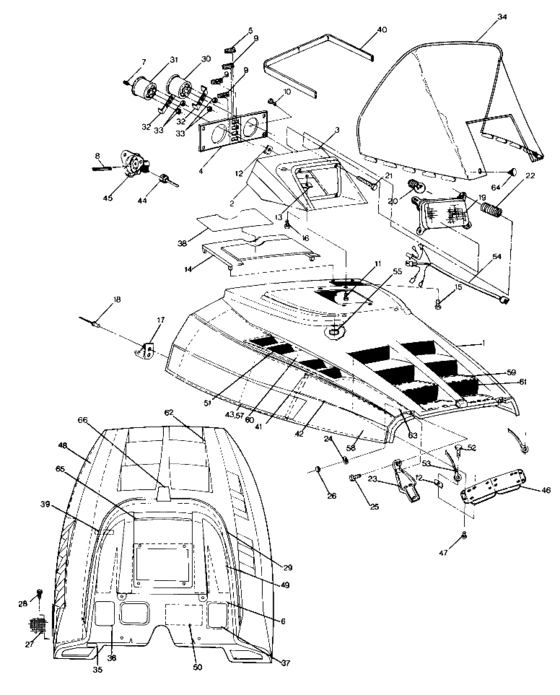

Hood (Updated 2/90; 400) Diagram Polaris 400
- Model code
- 0900759
- Engine Capacity
- 400
- Year
- 1990
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5431194
Hood
|
5431194 |
— | ||
| replacement | |||||
|
1
|
1
2631574-070
New Genuine Part
|
2631574-070 |
— | ||
|
2
|
2
5431051
Hsg,inst,bottom
|
5431051 |
— | ||
| replacement | |||||
|
2
|
2
5430922-070
Hsg,inst,bott,blk,
|
5430922-070 |
— | ||
|
3
|
3
5431052
Hsg,inst, top
|
5431052 |
— | ||
| replacement | |||||
|
3
|
3
5430923-070
Hsg,inst,top,blk
|
5430923-070 |
— | ||
|
4
|
4
5430924
Bezel, inst,
|
5430924 |
— | ||
|
5
|
5
4040011 Indicator'temp'warn. |
4040011 |
US $22.45 |
||
|
6
|
6
7072503
Decal,spec,
No Longer Available; `88-`91; |
7072503 |
— | ||
|
7
|
7
3280103 Knob,trip odometer |
3280103 |
US $4.73 |
||
|
8
|
8
3280017 Key,speedometer,square(10)10; |
3280017 |
US $15.49 |
||
|
9
|
9
5430967 Plug,indic,hole |
5430967 |
US $3.64 |
||
|
10
|
10
7512008
Screw,sckt,hd,cap
10; |
7512008 |
— | ||
|
11
|
11
7512283 Screw, sems10; |
7512283 |
US $3.26 |
||
|
12
|
12
7670056
Nut, speed
10; |
7670056 |
— | ||
|
13
|
13
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
14
|
14
5431195
Desc not_available
|
5431195 |
— | ||
|
15
|
15
7511840 Screw(10)10; |
7511840 |
US $0.79 |
||
|
16
|
16
7512009
Screw
10; |
7512009 |
— | ||
|
17
|
17
5430733 Cup, hood latch(10)10; |
5430733 |
US $3.75 |
||
|
18
|
18
7621334 Rivet(50)50; |
7621334 |
US $187.50 |
||
|
19
|
19
2431007
Headlight asm.
Incl. 20-22; |
2431007 |
— | ||
| replacement | |||||
|
19
|
19
4032040
Headlight asm,
Incl. 20-22; |
4032040 |
— | ||
|
20
|
20
2870448 Bulb,quartz,h/l h4,60/55w |
2870448 |
US $21.35 |
||
|
20
|
20
4030028 Bulb, h/l |
4030028 |
US $28.93 |
||
|
21
|
21
4032003
Screw, adj.
10; |
4032003 |
— | ||
|
22
|
22
4032002 Spring-adj |
4032002 |
US $22.89 |
||
|
23
|
23
2635005
Hinge asm,hd.
|
2635005 |
— | ||
| replacement | |||||
|
23
|
23
2635005-067
Hinge asm,hd,blk
|
2635005-067 |
— | ||
|
24
|
24
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
25
|
25
7512263 Bolt-carriage10; |
7512263 |
US $2.45 |
||
|
26
|
26
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
27
|
27
5211117
Screen, hood
|
5211117 |
— | ||
| replacement | |||||
|
27
|
27
5211117-067
Screen,rear hood
|
5211117-067 |
— | ||
|
28
|
28
7511858 Screw(10)10; |
7511858 |
US $2.45 |
||
|
29
|
29
7072739
Decal, pinstripe
No Longer Available; |
7072739 |
— | ||
|
30
|
30
3280092 SpeedometerIncl. 32-33; |
3280092 |
US $137.88 |
||
|
31
|
31
3280093
Tachometer
Incl. 32-33; |
3280093 |
— | ||
|
32
|
32
3280098
Bracket
|
3280098 |
— | ||
|
33
|
33
3280063
Nut
|
3280063 |
— | ||
|
34
|
34
5431144 Windshield,smoke,std(liq)LIQ; |
5431144 |
US $152.34 |
||
|
35
|
35
7073024
Label, 'u,s,a,'
|
7073024 |
— | ||
|
36
|
36
7072489
Decal,op.caut,
No Longer Available; ENG.; |
7072489 |
— | ||
|
37
|
37
7072490
Decal,op.caut,
No Longer Available; FR.; |
7072490 |
— | ||
|
38
|
38
7072491
Decal,dash warning
No Longer Available; |
7072491 |
— | ||
|
39
|
39
4020035
Clip, wiring,
10; |
4020035 |
— | ||
| replacement | |||||
|
39
|
39
7080665
Clip,wiring
10; |
7080665 |
— | ||
|
40
|
40
5810437
Pad,w/s,lh,black
|
5810437 |
— | ||
|
40
|
40
5810438 Pad,w/s,rh,black |
5810438 |
US $2.07 |
||
|
41
|
41
5810405
Tape,foil,foam
|
5810405 |
— | ||
|
42
|
42
7072740
Decal,lh,hood top
No Longer Available; |
7072740 |
— | ||
|
42
|
42
7072741
Decal,rh,hood top
No Longer Available; |
7072741 |
— | ||
|
43
|
43
7072742
Decal,lh, hood
No Longer Available; |
7072742 |
— | ||
|
43
|
43
7072743
Decal,rh, hood
No Longer Available; |
7072743 |
— | ||
|
44
|
44
3280094 Cable,speedo, |
3280094 |
US $51.21 |
||
|
45
|
45
3280095
Adapter,drive
|
3280095 |
— | ||
| replacement | |||||
|
45
|
45
3280116
Adapter,drive,w/zerk
|
3280116 |
— | ||
|
46
|
46
5222105 Plate,re-inf,,(hd,)HD.; |
5222105 |
US $61.43 |
||
|
47
|
47
7511861
Screw
10; |
7511861 |
— | ||
|
48
|
48
5810374
Foam, hood, lh
|
5810374 |
— | ||
|
48
|
48
5810375
Foam, hood, rh
|
5810375 |
— | ||
|
49
|
49
5810376
Foam, hood, ctr
|
5810376 |
— | ||
|
50
|
50
5810389
Foam, hood
|
5810389 |
— | ||
|
51
|
51
5810395
Tape,foil
|
5810395 |
— | ||
|
52
|
52
7511989
Screw
10; |
7511989 |
— | ||
|
53
|
53
7080360 Cable,hd,retainer |
7080360 |
US $12.20 |
||
|
54
|
54
2460261
Harness,h/l.&inst.
No Longer Available; |
2460261 |
— | ||
|
55
|
55
5410387
O ring
HEAVY;10; |
5410387 |
— | ||
| replacement | |||||
|
55
|
55
5410970 Retainer,windshield,(10) *HEAVY;10; |
5410970 |
US $1.73 |
||
|
57
|
57
2200323
Kit, circuit breaker, 20 amp
No Longer Available; 90; |
2200323 |
— | ||
|
58
|
58
5810407
Tape,foil,foam
|
5810407 |
— | ||
|
59
|
59
5810393
Tape,foil,lh
|
5810393 |
— | ||
|
59
|
59
5810394
Tape,foil,rh
|
5810394 |
— | ||
|
60
|
60
5810396
Tape,foil
|
5810396 |
— | ||
|
61
|
61
5810397
Tape,foil
|
5810397 |
— | ||
|
62
|
62
5810404
Tape,foil,louver,pipe side
|
5810404 |
— | ||
|
63
|
63
5810406
Tape,foil,foam
|
5810406 |
— | ||
|
64
|
64
7670041
Clip-plastic
10; |
7670041 |
— | ||
| replacement | |||||
|
64
|
64
7621509 Rivet,plasti-lock(50) *10; |
7621509 |
US $197 |
||
|
65
|
65
7072676
Decal,hood-h/l pod
No Longer Available; |
7072676 |
— | ||
|
66
|
66
4032004
Holder-cap
|
4032004 |
— | ||
|
66
|
66
5431127
Emblem,`35 yr`
No Longer Available; 400; |
5431127 |
— | ||
|
66
|
66
7041202
Spring,hood cable
|
7041202 |
— | ||
