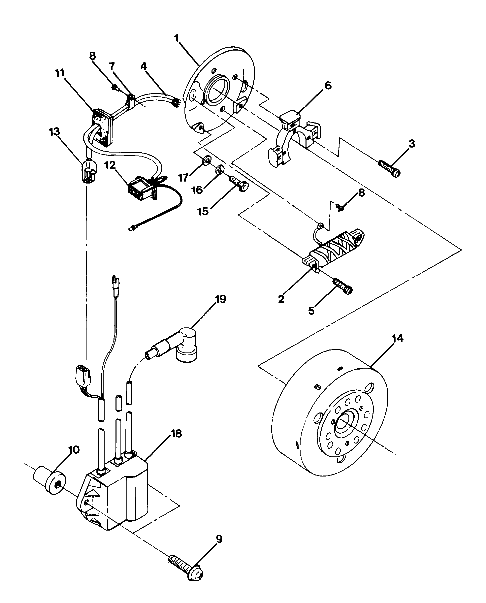

Magneto (400) Diagram Polaris 400
- Model code
- 0900759
- Engine Capacity
- 400
- Year
- 1990
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083990
Plate asm,
Incl. 2, 3, 5-8, 11-13; |
3083990 |
— | ||
|
2
|
2
3083984 Coil, exciter |
3083984 |
US $105.67 |
||
|
3
|
3
3082365 Asm,,screw and washer(10)10; |
3082365 |
US $1.89 |
||
|
4
|
4
3083993 Harness, wire |
3083993 |
US $81.76 |
||
|
5
|
5
3083423 Asm,,screw & washer |
3083423 |
US $1.49 |
||
|
6
|
6
3083991 Stator 1 |
3083991 |
US $369.97 |
||
|
7
|
7
3081296 Clamp |
3081296 |
US $6.69 |
||
|
8
|
8
3081260 Asm,,screw&washer(10)10; |
3081260 |
US $1.89 |
||
|
9
|
9
3083562
Screw&washer asm.
|
3083562 |
— | ||
| replacement | |||||
|
9
|
9
3083784 Screw&washer,(10) |
3083784 |
US $0.79 |
||
|
10
|
10
3083240 Nut-rubber |
3083240 |
US $7.68 |
||
|
11
|
11
3082969 Grommet |
3082969 |
US $13.30 |
||
|
12
|
12
3081513 Coupler,male |
3081513 |
US $16.24 |
||
|
13
|
13
3083909 Coupler |
3083909 |
US $14.09 |
||
|
14
|
14
3083992
Flywheel
|
3083992 |
— | ||
|
15
|
15
3081469
Screw
10; |
3081469 |
— | ||
|
16
|
16
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
17
|
17
3082206 Washer |
3082206 |
US $0.79 |
||
|
18
|
18
3083989
Cdi unit
|
3083989 |
— | ||
|
19
|
19
3083282
Cap-spark plug
|
3083282 |
— | ||
| replacement | |||||
|
19
|
19
4020129 Resistor plug cap (10) |
4020129 |
US $11.03 |
||
