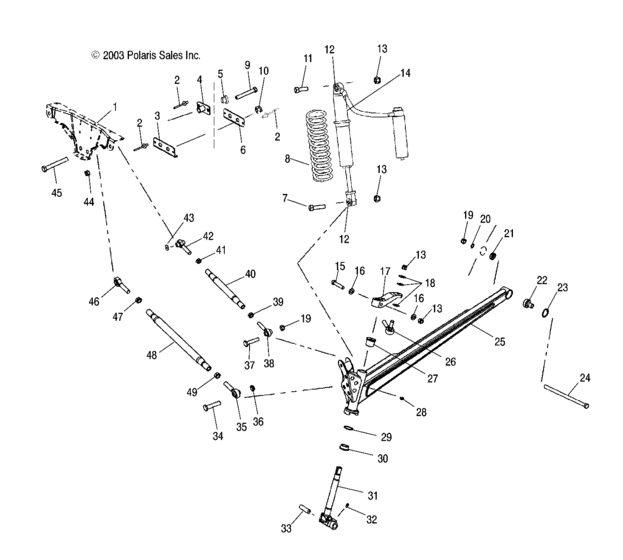

Front suspension (S04NX4CS/CE) Diagram Polaris 440 PRO XR

Model code
S04NX4CS
Engine Capacity
438
Year
2004
Sales region
General
Stroke (2-stroke or 4-stroke)
2 stroke

Difficulties in parts search?

Parts list
Front suspension

Difficulties in parts search?

Front suspension
Description OEM Part # Price
2
2

7661637

Rivet,interlock,z(50) *

7661637

US $0.79

3
3

5245250

Brkt-rad rod,lower strap

5245250

US $14.28

4
4

1013733

Weld-rad rod support,reinf

1013733

US $42.75

5
5

5132897

Bushing

5132897

US $5.72

6
6

5245307

Plate-lower,inner

5245307

US $9.15

7
7

7517583

Scr-3/8-24x2 hx/cp gr5-y-sp

7517583

US $3.57

8
8
7042187-293
Spring-comp,343x12,5",165#,red

7042187-293

9
9

7517980

Bolt-7/16-20x3,00,hxcap,gr5-y

7517980

US $5.22

10
10

7542703

Nut flexoc,

7542703

US $13.09

11
11

7515415

Screw(10)

7515415

US $1.49

12
12

5133320

Spacer

5133320

US $5.64

13
13

7542439

Nut,nylok(10)

7542439

US $3.94

14
14

7042293

Shock-ifs

7042293

US $923.72

15
15

7515433

Screw(10)

7515433

US $26.30

replacement
15
15

7517583

Scr-3/8-24x2 hx/cp gr5-y-sp

7517583

US $3.57

16
16

7555832

Washer

7555832

US $5.25

17
17
2874341
Steering arm

2874341

18
18

7555797

Washer,flat

7555797

US $2.45

19
19

7547066

Nut-7/16-20,nylok,y (10)

7547066

US $39.40

20
20

7555820

Washer,flat(10) *

7555820

US $2.45

21
21

5133990

Cup-trailing arm mnt

5133990

US $6.69

22
22
7061094
Bearing-spherical,7/16,nylon

7061094

23
23

7710437

Ring,retaining

7710437

US $3.94

24
24

7512099

Screw

7512099

US $16.24

25
25
1821523-293
Asm-trailing arm,lh,red

Incl. 22,23;

1821523-293

25
25

1821524-293

Asm-trailing arm,rh,red

Incl. 22,23;

1821524-293

US $290.61

26
26

7061057

Rod end-3/8,pl,75?,1,00,rh

7061057

US $47.67

27
27
3514376
Bushing-flange

3514376

28
28

7080433

Fitting,lubrication,threaded(10

7080433

US $5.25

29
29

7556207

Bushing-1,13x1,31x16ga-y

7556207

US $7.18

30
30
3514377
Bushing-flange

3514377

31
31
6230248-067
Shaft-spindle,blk

6230248-067

32
32

7080306

Fitting,lube,w/ball ck,(10)

7080306

US $91.90

33
33

5010158

Bushing,pivot

5010158

US $32.18

34
34

7517906

Bolt-1/2-20x2,hxcap,gr5-y

7517906

US $6.69

35
35

7061106

Rod end-rr,rh,1/2,1,05w,face

7061106

US $47.67

36
36

7547065

Nut-1/2-20,nylok,y

7547065

US $3.26

37
37

7517907

Bolt-7/16-20x2,hxcap,gr5-y

7517907

US $5.22

38
38
7061108
Rod end-rr,rh,7/16,1,05w,face

7061108

39
39

7542520

Nut,jam(10)

7542520

US $0.79

40
40
5133686
Tube-rr,upper,swedged,machined

5133686

41
41

7547117

Nut,lh

7547117

US $4.43

42
42

7061107

Rod end-rr,lh,7/16,1,05,face

7061107

US $44.71

43
43
7555928
Washer

7555928

replacement
43
43

7555801

Washer

7555801

US $2.45

44
44

7542503

Nut,flexlock,

7542503

US $9.85

45
45

7512656

Bolt

7512656

US $7.68

46
46
7061105
Rod end-rr,lh,1/2,1,05w,face

7061105

47
47
7547028
Nut,jam,lh(10)

7547028

48
48
5133685
Tube-rr,lower,swedged,machined

5133685

49
49

7542711

Nut-jam(10)

7542711

US $0.79
