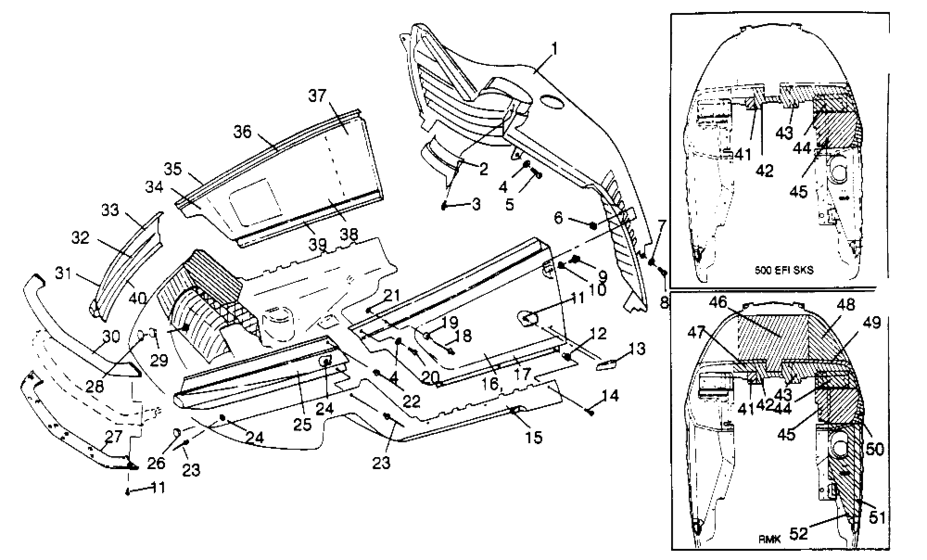

Nose pan (500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS) Diagram Polaris 500 EFI SKS

Model code
0962574
Engine Capacity
488
Year
1996
Sales region
General
Stroke (2-stroke or 4-stroke)
2 stroke

Difficulties in parts search?

Parts list
Nose pan

Difficulties in parts search?

Nose pan
Description OEM Part # Price
1
1
5431697
Console,europe

EURO;

5431697

1
1
5431467
Console,basic

5431467

2
2
5431535
Cover,console

5431535

3
3

7621509

Rivet,plasti-lock(50) *

50;

7621509

US $197

4
4
7555776
Washer

10;

7555776

replacement
4
4

7558301

Washer, flat(10) *

10;

7558301

US $0.79

5
5
7512252
Screw

10;

7512252

6
6
7542138
Nut,retainer

10;

7542138

8
8
7512069
Screw

10;

7512069

9
9

5431502

Retainer,hoodlatch (10)

5431502

US $9.85

10
10

7555884

Washer,rubber

10;

7555884

US $4.71

11
11

7512068

Screw

10;

7512068

US $0.79

12
12

7541923

Nut-well(10) *

10;

7541923

US $7.68

13
13
5431662
Bumper,side panel

5431662

replacement
13
13
5432456
Bumper,side panel

5432456

14
14

7512279

Screw(10) *

10;

7512279

US $0.79

15
15
5432045
Nosepan,(ev,w/batt,)

EV,W/BATT.;

5432045

16
16

5431742-070

Panel,lh,side,blk,

5431742-070

US $162.51

17
17
5811076
Foam,lh,sidepanel

5811076

18
18

7621315

Rivet(50)

50;

7621315

US $1.89

19
19
5410843
Bumper,rubber stop

5410843

replacement
19
19
5411440
Bumper,compart,door

5411440

20
20

7515148

Screw

10;

7515148

US $3.94

21
21

7555756

Rivet burr(50)

50;

7555756

US $0.79

22
22

7621472

Rivet(50) *

50;

7621472

US $98

23
23

7621467

Rivet, blind(50) *

50;

7621467

US $197

24
24

7555904

Washer

50;

7555904

US $0.79

25
25
5431492-070
Bumper,lh side,blk.

5431492-070

26
26

5410820

Plug,hole

5410820

US $7.09

27
27
5431481
Cover,f.bump.bottom

5431481

28
28
5810999
Foil,tape,3"dia.

5810999

29
29

5410582

Plug,catch hole

5410582

US $8.26

30
30
5431480-070
Cover,f.bump.top,blk.

5431480-070

31
31
2610010-070
Bumper,rh,side/foil,blk,

Incl., 32, 33, 40;

2610010-070

32
32
5811086
Foil,side bump,middle

5811086

33
33
5811153
Foil-side bumper-upper

5811153

34
34
5811072
Foil,fr,sidepanel

5811072

35
35
5811074
Foil,top,inner,sidepanel

5811074

35
35
5811075
Foil,top,out,sidepanel

5811075

36
36
5811073
Foil,up,sidepanel

5811073

37
37
2610008-070
Panel,rh,side,blk.

Incl. 34-39;

2610008-070

38
38
5811070
Foam-foil,rh,sidepanel

5811070

39
39
5811071
Foil,low,sidepanel

5811071

40
40
5811085
Foil,side bump,lower

5811085

41
41
5811188
Foil,lh,shocktower,#12

5811188

42
42
5811187
Foil-center, #11

5811187

43
43
5811192
Foil,rh,shocktower,#13

5811192

44
44
5811193
Foil,rh,shocktower,top,#14

5811193

45
45
5811194
Foil,rh,shock tower,low,

5811194

46
46
5810962
Foil #10,ctr,

RMK;

5810962

47
47
5810960
Foil #8,lh side

RMK;

5810960

48
48
5810952
Foil,frt,rh,#1

RMK;

5810952

49
49
5811197
Foil,fr,rh,pan

RMK;

5811197

50
50
5811195
Foil,rh,panside,#16

5811195

51
51
5810956
Foil,upper,rh,#5

RMK;

5810956

52
52
5811196
Foil,lower,rh,pan

RMK;

5811196
