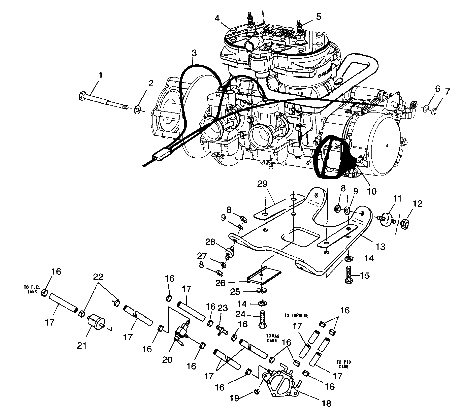

Engine mounting (099SB7AS) Diagram Polaris 700 XC

Model code
099SB7AS
Engine Capacity
700
Year
1999
Sales region
General
Stroke (2-stroke or 4-stroke)
2 stroke

Difficulties in parts search?

Parts list
Engine mounting

Difficulties in parts search?

Engine mounting
Description OEM Part # Price
1
1
7517347
Screw,spec,clutch

7517347

2
2

7556003

Washer

10;

7556003

US $8.66

3
3
7080721
Cable,throttle,twin

7080721

4
4
2201362
Short blk sn70-70 1201770

No Longer Available; See Footnote;

2201362

5
5

3070165

Sparkplug rn2c (4)

8;

3070165

US $4.53

6
6

7555944

Washer(10)

10;

7555944

US $2.35

7
7

7710427

Ring-e,ret,

10;

7710427

US $3.75

8
8

7547008

Nut,flexlock

10;

7547008

US $5.22

9
9

7555893

Washer,flat(10)

10;

7555893

US $0.79

10
10
5431499
Handle, recoil

5431499

replacement
10
10

5431499-070

Handle-recoil,blk

5431499-070

US $14.63

11
11
3110072
Mount,engine

3110072

replacement
11
11

3021099

Mount-engine,3/8-16,3-tab

3021099

US $21.49

12
12

7547022

Nut

10;

7547022

US $16.24

13
13
5241588
Plate,eng.mount

5241588

14
14

7553101

Washer,spring lock

10;

7553101

US $3.94

15
15

7512539

Bolt

10;

7512539

US $3.26

16
16

7080003

Clamp,hose(10)

10;

7080003

US $0.79

17
17

8450040-600

Line fuel,1/4 id(600 cm,)

600 CM.;

8450040-600

US $65.99

18
18
2520134
Asm., fuel pump

2520134

19
19

7542122

Nut-nylok(10)

10;

7542122

US $26.30

20
20
7052211
Valve,fuel shutoff

7052211

21
21
2520156
Filter-fuel,white

2520156

22
22

7080534

Clamp,hose

10;

7080534

US $2.45

23
23
7052035
Tee-fuel

7052035

24
24

7517442

Bolt

10;

7517442

US $4.43

25
25

5210748

Washer(10)

10;

5210748

US $5.25

26
26
5211881
Brace,engine mt,

5211881

27
27

7555915

Washer,flat(10)

10;

7555915

US $1.89

28
28

3110062

Mount,engine

3110062

US $21.49

29
29
5211894
Plate,shim,sn70,engine

5211894
