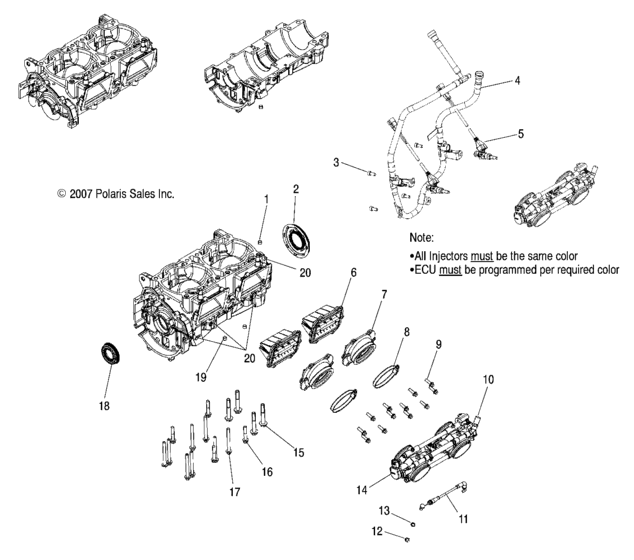

Crankcase/throttle body mounting (S05PS8DS) Diagram Polaris 900 Switchback
- Model code
- S05PS8DS
- Engine Capacity
- 866
- Year
- 2005
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7663008 Dowl,hol,m13x10 |
7663008 |
US $3.24 |
||
|
2
|
2
5412218 Seal-flanged 40x80-7 w/stndoff |
5412218 |
US $35.44 |
||
|
3
|
3
7517431 Screw |
7517431 |
US $3.94 |
||
|
4
|
4
2520430 Fuel-rail,2-inj |
2520430 |
US $132.97 |
||
|
5
|
5
2203096
Kit-injectors
2 Per; |
2203096 |
— | ||
|
6
|
6
1202698 Asm-reed valve |
1202698 |
US $149.26 |
||
|
7
|
7
1253540 Adapter, throttle body |
1253540 |
US $187.90 |
||
| replacement | |||||
|
7
|
7
1203917 Adapter-throttle body |
1203917 |
US $187.90 |
||
|
8
|
8
7080707 Clamp,band,narrow (10) |
7080707 |
US $3.94 |
||
|
9
|
9
7517398 Screw,(10) * |
7517398 |
US $1.89 |
||
|
10
|
10
1202697
Asm., throttle body
|
1202697 |
— | ||
|
11
|
11
7081158 Cable-oil |
7081158 |
US $43.51 |
||
|
12
|
12
7710427 Ring-e,ret, |
7710427 |
US $3.75 |
||
|
13
|
13
7555944 Washer(10) |
7555944 |
US $2.35 |
||
|
14
|
14
3131591 Sensor-throttle position |
3131591 |
US $213.71 |
||
|
15
|
15
7516919
Screw
|
7516919 |
— | ||
|
16
|
16
7516732 Screw(10) |
7516732 |
US $1.89 |
||
|
17
|
17
7518093
Scr-m8x1,25x80 hx/fl-y
|
7518093 |
— | ||
|
18
|
18
5412216 Seal-flanged 28x48x7,mag |
5412216 |
US $37.42 |
||
|
19
|
19
7052337 Plug-1/8 npt,hx/soc w/sealant |
7052337 |
US $1.66 |
||
|
20
|
20
7051020 Valve,check,90 deg, |
7051020 |
US $27.39 |
||
