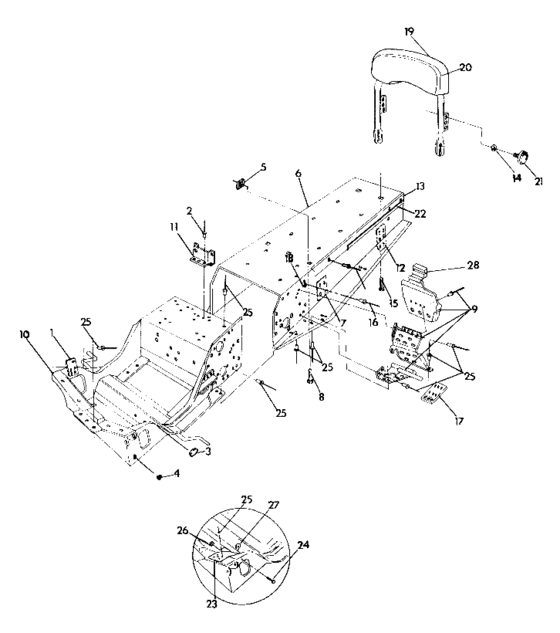

Tunnel assembly (Sport GT) Diagram Polaris SWE Sport GT
- Model code
- S922443
- Year
- 1992
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1011831-067
Support,muffler,blk.
|
1011831-067 |
— | ||
| replacement | |||||
|
1
|
1
5242798-067 Support,muffler,frt |
5242798-067 |
US $21.49 |
||
|
2
|
2
7621301 Rivet(10)50; |
7621301 |
US $1.77 |
||
|
3
|
3
5410344 Plug (10) |
5410344 |
US $7.51 |
||
|
4
|
4
7080416 Plug, hole10; |
7080416 |
US $3.64 |
||
|
5
|
5
7670021 Nut, speed10; |
7670021 |
US $2.45 |
||
|
6
|
6
1011735
Tunnel asm,
GT; |
1011735 |
— | ||
|
7
|
7
5220542-067
Brkt,fr.susp,blk.
|
5220542-067 |
— | ||
|
8
|
8
7512193 Bolt,carriage10; |
7512193 |
US $5.25 |
||
|
9
|
9
2200254
Footrest asm,rh
|
2200254 |
— | ||
|
9
|
9
2200250
Footrest asm,lh
|
2200250 |
— | ||
|
10
|
10
1011821-067
Bulkhead, blk.
|
1011821-067 |
— | ||
|
11
|
11
5221932-067 Bracket, gastank |
5221932-067 |
US $16.24 |
||
|
12
|
12
1011750-067
Brkt,rh.r.susp,blk.
|
1011750-067 |
— | ||
|
12
|
12
1011749-067
Brkt,lh.r.susp,blk.
|
1011749-067 |
— | ||
|
13
|
13
7072078
Decaltunnel
No Longer Available; 47.5``; |
7072078 |
— | ||
|
14
|
14
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
15
|
15
7512103 Bolt10; |
7512103 |
US $2.28 |
||
|
16
|
16
7621222 Rivet(50)50; |
7621222 |
US $0.79 |
||
|
17
|
17
5220634
Plate,tunnel,lh
|
5220634 |
— | ||
|
17
|
17
5220635
Plate,tunnel,rh
|
5220635 |
— | ||
|
19
|
19
2681449
Backrest asm.
|
2681449 |
— | ||
|
20
|
20
2681450
Cover, backrest
|
2681450 |
— | ||
|
21
|
21
5630386-067 Knob, backrest |
5630386-067 |
US $16.24 |
||
|
22
|
22
7073248
Decal,tunnel,`sport`
No Longer Available; 34``; |
7073248 |
— | ||
|
23
|
23
5222582-067
Brace,lh blkhd,blk.
|
5222582-067 |
— | ||
|
23
|
23
5222583-067
Brace,rh blkhd,blk.
|
5222583-067 |
— | ||
|
24
|
24
7515307 Bolt10; |
7515307 |
US $3.26 |
||
|
25
|
25
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
25
|
25
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
26
|
26
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
27
|
27
7555701 Washer,flat10; |
7555701 |
US $3.26 |
||
|
28
|
28
5521238 Extrusion,clutchguard |
5521238 |
US $5.11 |
||
