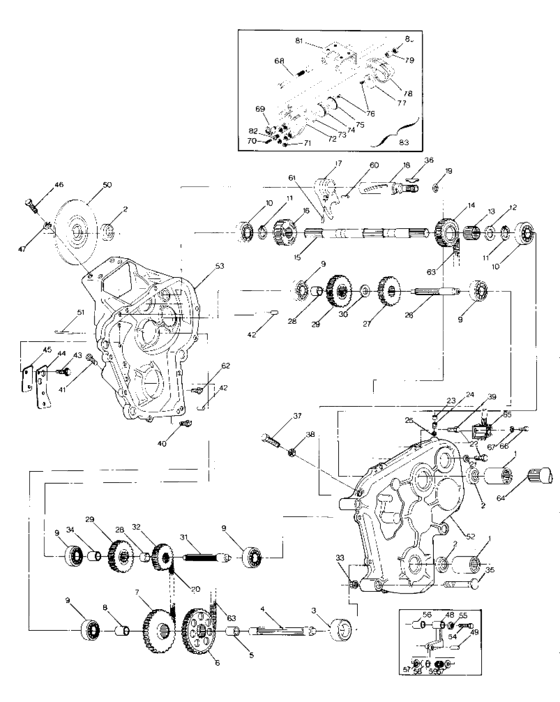

Brake and chaincase (SuperTrak) Diagram Polaris Trail Supertrak
- Model code
- 0900161
- Year
- 1990
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5020449
Coupler,shaft (o/p)
O/P; |
5020449 |
— | ||
|
2
|
2
3610015 Seal, oil |
3610015 |
US $6.11 |
||
|
3
|
3
3514305 Bearing,chaincase #6205 |
3514305 |
US $18.73 |
||
|
4
|
4
5020450
Shaft, output
|
5020450 |
— | ||
| replacement | |||||
|
4
|
4
6230065
Shaft, output *
|
6230065 |
— | ||
|
5
|
5
5010227
Spacer,output shaft
|
5010227 |
— | ||
|
6
|
6
3222034
Sprocket 39 t
|
3222034 |
— | ||
|
7
|
7
3222037
Sprocket-41t,11w
|
3222037 |
— | ||
|
8
|
8
5020480
Spacer,output
|
5020480 |
— | ||
|
9
|
9
3514001 Bearing, ball |
3514001 |
US $20.69 |
||
|
10
|
10
3514304 Bearing,205,w/o seal #6205 |
3514304 |
US $19.69 |
||
|
11
|
11
7710411
Ring, ret,
10; |
7710411 |
— | ||
|
12
|
12
7555751
Washer
10; |
7555751 |
— | ||
|
13
|
13
3554503
Bearing, needle
|
3554503 |
— | ||
|
14
|
14
5130661
Gear,forward,21t
|
5130661 |
— | ||
|
15
|
15
5020508
Shaft, input *
|
5020508 |
— | ||
|
16
|
16
5130667
Pinion, reverse
|
5130667 |
— | ||
|
17
|
17
5130662
Fork, shift *
|
5130662 |
— | ||
|
18
|
18
5130669
Shaft, shift
|
5130669 |
— | ||
| replacement | |||||
|
18
|
18
5130802 Shaft, shift |
5130802 |
US $183.82 |
||
|
19
|
19
5410440 O ring10; |
5410440 |
US $6.11 |
||
|
20
|
20
3224037
Chain, silent
|
3224037 |
— | ||
|
21
|
21
7552604 Washer(10)10; |
7552604 |
US $2.45 |
||
|
22
|
22
7512247 Bolt(10) *10; |
7512247 |
US $0.79 |
||
|
23
|
23
7515473
Screw, set
10; |
7515473 |
— | ||
|
24
|
24
7041187
Spring,shifter detent
|
7041187 |
— | ||
| replacement | |||||
|
24
|
24
7041483 Spring,shifter detent |
7041483 |
US $31.52 |
||
|
25
|
25
7080310 Ball, detent (10) |
7080310 |
US $2.92 |
||
|
26
|
26
5020481
Shaft,low range
|
5020481 |
— | ||
|
27
|
27
5130607
Gear, 24t
|
5130607 |
— | ||
|
28
|
28
5010225
Spacer,rev.shaft
|
5010225 |
— | ||
|
29
|
29
5130757
Gear,30t,reverse
|
5130757 |
— | ||
|
30
|
30
7555765
Bushing, washer
|
7555765 |
— | ||
| replacement | |||||
|
30
|
30
5010260
Spacer
|
5010260 |
— | ||
|
31
|
31
5020446
Shaft, reverse
|
5020446 |
— | ||
|
32
|
32
3221042
Spkt, 18t *
|
3221042 |
— | ||
|
33
|
33
7542423 Nut,flange10; |
7542423 |
US $5.25 |
||
|
34
|
34
5010261
Spacer
|
5010261 |
— | ||
|
35
|
35
7515474
Bolt
10; |
7515474 |
— | ||
|
36
|
36
7721112
Weight, key
10; |
7721112 |
— | ||
|
37
|
37
7512470
Screw
10; |
7512470 |
— | ||
|
38
|
38
7542404 Nut10; |
7542404 |
US $5.25 |
||
|
39
|
39
7512225 Screw10; |
7512225 |
US $3.26 |
||
|
40
|
40
7042045
Spring,tension
|
7042045 |
— | ||
|
41
|
41
7051511
Plug, pipe
10; |
7051511 |
— | ||
|
42
|
42
7661904
Pin, dowel
10; |
7661904 |
— | ||
|
43
|
43
7512252
Screw
10; |
7512252 |
— | ||
|
44
|
44
5211036
Plate, vent
|
5211036 |
— | ||
|
45
|
45
5810305
Gasket, vent
|
5810305 |
— | ||
|
46
|
46
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
47
|
47
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
48
|
48
5630122
Block,tightener
No Longer Available; |
5630122 |
— | ||
|
49
|
49
7662210
Pin,chain tightener
|
7662210 |
— | ||
|
50
|
50
1910027
Disc brake weld,
|
1910027 |
— | ||
|
51
|
51
7661504
Pin-spiral
10; |
7661504 |
— | ||
|
52
|
52
5130660
Gearcase,lh mach.
|
5130660 |
— | ||
|
53
|
53
5130755
Gearcase,rh,mach,
|
5130755 |
— | ||
|
54
|
54
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
55
|
55
7577909
Washer,5/16shakeproof
10; |
7577909 |
— | ||
|
56
|
56
5010217
Bushing
|
5010217 |
— | ||
|
57
|
57
7558702 Washer thrust10; |
7558702 |
US $2.45 |
||
|
58
|
58
5630123
Wheel,c/c idler
|
5630123 |
— | ||
|
59
|
59
3553002 Bearing |
3553002 |
US $15.09 |
||
|
60
|
60
7661819
Pin, dowel
10; |
7661819 |
— | ||
|
61
|
61
7661206
Pin, spring
10; |
7661206 |
— | ||
|
62
|
62
7051512
Plug,pipe,magnetic
|
7051512 |
— | ||
|
63
|
63
3224024
Chain 66 pitch
|
3224024 |
— | ||
|
64
|
64
5020460
Jackshaft
|
5020460 |
— | ||
|
65
|
65
2410005
Switch,indicator,asm.
|
2410005 |
— | ||
|
66
|
66
7511989
Screw
10; |
7511989 |
— | ||
|
67
|
67
7571601
Washer-lock
10; |
7571601 |
— | ||
|
68
|
68
1930678
Bolt
|
1930678 |
— | ||
|
69
|
69
4110089
Switch, stoplight
|
4110089 |
— | ||
|
70
|
70
1930671
Adaptor/bleeder asm.
Incl. 82; |
1930671 |
— | ||
|
71
|
71
7051517
Plug
10; |
7051517 |
— | ||
|
72
|
72
1930675
Casting,pistonside
|
1930675 |
— | ||
| replacement | |||||
|
72
|
72
1930544
Brake asm.
|
1930544 |
— | ||
|
73
|
73
1930676
O-ring
|
1930676 |
— | ||
|
74
|
74
1930677
Piston
|
1930677 |
— | ||
|
75
|
75
1930535
Puck brake
|
1930535 |
— | ||
|
76
|
76
1930536
Screw brass,
10; |
1930536 |
— | ||
|
77
|
77
1930534
Puck brake
|
1930534 |
— | ||
|
78
|
78
1930679
Casting,carrierside
|
1930679 |
— | ||
|
79
|
79
1930680
Bushing
|
1930680 |
— | ||
| replacement | |||||
|
79
|
79
1930559
Bushing
|
1930559 |
— | ||
|
80
|
80
1930558
Nut
|
1930558 |
— | ||
|
81
|
81
1930560
Bracket
|
1930560 |
— | ||
|
83
|
83
1930544
Brake asm.
Incl. 68-82; |
1930544 |
— | ||
