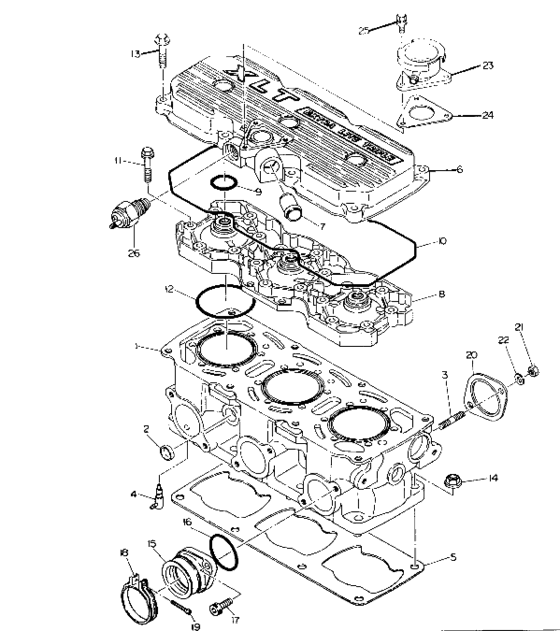

Cylinder (XLT; 500) Diagram Polaris XLT SP
- Model code
- 0920767
- Year
- 1992
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084427 Cylinder, cpl, |
3084427 |
US $1,126.58 |
||
|
2
|
2
3084428 Plug |
3084428 |
US $4.34 |
||
|
3
|
3
3084270
Stud
|
3084270 |
— | ||
| replacement | |||||
|
3
|
3
3085326 Stud(10) |
3085326 |
US $2.66 |
||
|
4
|
4
3083337
Valve, check
|
3083337 |
— | ||
| replacement | |||||
|
4
|
4
3086785 Asm,,valve,check |
3086785 |
US $51.21 |
||
|
5
|
5
3084429
Gasket, cylinder
Cylinder; |
3084429 |
— | ||
| replacement | |||||
|
5
|
5
3084593
Gasket, cylinder *
Cylinder; |
3084593 |
— | ||
|
6
|
6
3084430
Cover, head, cpl.
|
3084430 |
— | ||
|
7
|
7
3084431
Pipe, water, cpl.
Water; |
3084431 |
— | ||
|
8
|
8
3084432 Head, cylinder |
3084432 |
US $270.20 |
||
|
9
|
9
3084433
O-ring, head
Head; |
3084433 |
— | ||
| replacement | |||||
|
9
|
9
3085192 O ringHead; |
3085192 |
US $5.64 |
||
|
10
|
10
3084434
O-ring, (headcover) *
HEADCOVER;Head Cover; |
3084434 |
— | ||
|
11
|
11
3084435
Bolt, flange
10; |
3084435 |
— | ||
|
12
|
12
3084436
O-ring, cylinder
Cylinder; |
3084436 |
— | ||
| replacement | |||||
|
12
|
12
3084595
O-ring,cylinder
Cylinder; |
3084595 |
— | ||
|
13
|
13
3084437 Bolt, flange |
3084437 |
US $2.77 |
||
|
14
|
14
3082911 Nut-flange(10)10; |
3082911 |
US $0.79 |
||
|
15
|
15
3084438
Adapter *
|
3084438 |
— | ||
|
16
|
16
3084272
Уплотнительное кольцо
|
3084272 |
— | ||
| replacement | |||||
|
16
|
16
3085619 O-ring |
3085619 |
US $20.51 |
||
|
17
|
17
3081330 Bolt, socket headSocket Head; |
3081330 |
US $3.26 |
||
|
18
|
18
3082257 Asm,,band,adapterAdapter; |
3082257 |
US $19.30 |
||
|
19
|
19
3081497 Screw,pan head (10)10;Pan Head; |
3081497 |
US $0.79 |
||
|
20
|
20
3084439
Gasket,exhaust,na
10;Exhaust; |
3084439 |
— | ||
| replacements | |||||
|
20
|
20
3086757 Gasket, exhaust10;Exhaust; |
3086757 |
US $12.20 |
||
|
20
|
20
3086757NONASBESTOS
New Genuine Part
10;Exhaust; |
3086757NONASBESTOS |
— | ||
|
20
|
20
3086757-NA
New Genuine Part
10;Exhaust; |
3086757-NA |
— | ||
|
21
|
21
3080285
Nut
10; |
3080285 |
— | ||
|
22
|
22
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
23
|
23
3083398
Neck, filler
|
3083398 |
— | ||
|
24
|
24
3083340
Gasket, filler neck
Filler Neck; |
3083340 |
— | ||
|
25
|
25
3083361 Bolt, flange |
3083361 |
US $1.77 |
||
|
26
|
26
3084284 Switch,thermal |
3084284 |
US $174.98 |
||
