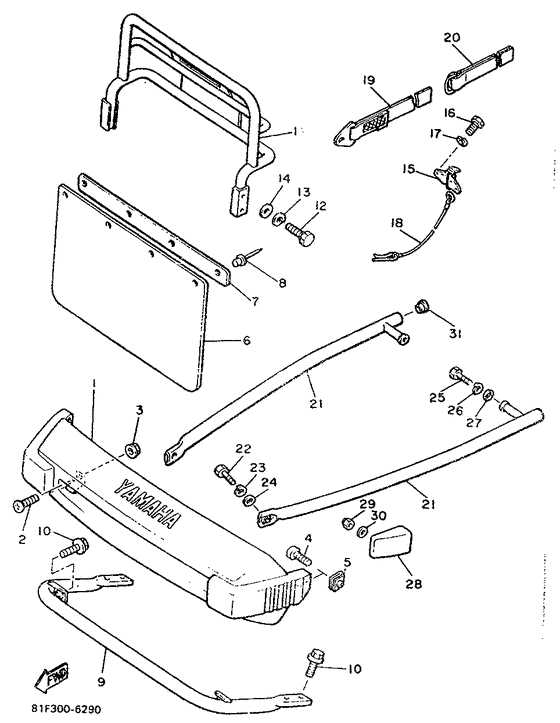

Bumper Diagram Yamaha BR250 Bravo
- Model code
- 81F
- Engine Capacity
- 246
- Year
- 1996
- Sales region
- Europe (General) (999)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8R4-77511-00-00 Bumper, Front 1 |
8R4-77511-00-00 |
from US $47.67 |
||
| replacement | |||||
|
01
|
01
81X-77511-00-00 Bumper, Front 1 |
81X-77511-00-00 |
from US $47.67 |
||
|
02
|
02
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
03
|
03
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
03
|
03
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
04
|
04
98906-05012-00 Screw, Bind |
98906-05012-00 |
US $1.42 |
||
| replacement | |||||
|
04
|
04
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
05
|
05
90183-05013-00 Nut, Spring |
90183-05013-00 |
from US $2.41 |
||
|
06
|
06
8R4-77595-01-00 Flap |
8R4-77595-01-00 |
from US $43.11 |
||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
80J-77596-00-00 Stopper, Flap |
80J-77596-00-00 |
from US $11.76 |
||
|
08
|
08
90267-48086-00 Rivet, Blind (4.8X19 Black) |
90267-48086-00 |
from US $1.84 |
||
|
09
|
09
8R4-77513-00-00 Bumper, Front 3 |
8R4-77513-00-00 |
from US $54.71 |
||
|
10
|
10
95802-08016-00 Bolt, Flange |
95802-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
11
|
11
8X4-77541-00-00
Bumper, Rear 1
|
8X4-77541-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
97306-08040-00 Bolt |
97306-08040-00 |
from US $5.67 |
||
| replacement | |||||
|
12
|
12
90101-08499-00 Bolt |
90101-08499-00 |
from US $5.67 |
||
|
13
|
13
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
14
|
14
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
15
|
15
8N9-77591-00-00 Bracket, Hitch 1 |
8N9-77591-00-00 |
from US $73.92 |
||
| replacement | |||||
|
15
|
15
86D-77591-00-00 Bracket, Hitch 1 |
86D-77591-00-00 |
from US $73.92 |
||
|
16
|
16
97301-08016-00 Bolt |
97301-08016-00 |
US $4.53 |
||
| replacement | |||||
|
16
|
16
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
18
|
18
8U1-77157-00-00 Pin, Hinge |
8U1-77157-00-00 |
from US $12.61 |
||
|
19
|
19
99277-97100-00
Emblem, Yamaha
|
99277-97100-00 |
— | ||
|
20
|
20
892-77972-00-00
Band, Shoes Fitting 2
|
892-77972-00-00 |
— | ||
|
21
|
21
8X8-77514-00-00
Bumper, Front 4
|
8X8-77514-00-00 |
— | ||
|
22
|
22
97302-08020-00 Bolt |
97302-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
22
|
22
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
23
|
23
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
23
|
23
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
25
|
25
97302-08016-00 Bolt |
97302-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
26
|
26
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
26
|
26
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
27
|
27
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
28
|
28
8X8-77523-00-00 End, Bumper |
8X8-77523-00-00 |
US $10.73 |
||
|
29
|
29
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
30
|
30
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
31
|
31
90338-20179-00 Plug |
90338-20179-00 |
from US $4.53 |
||
