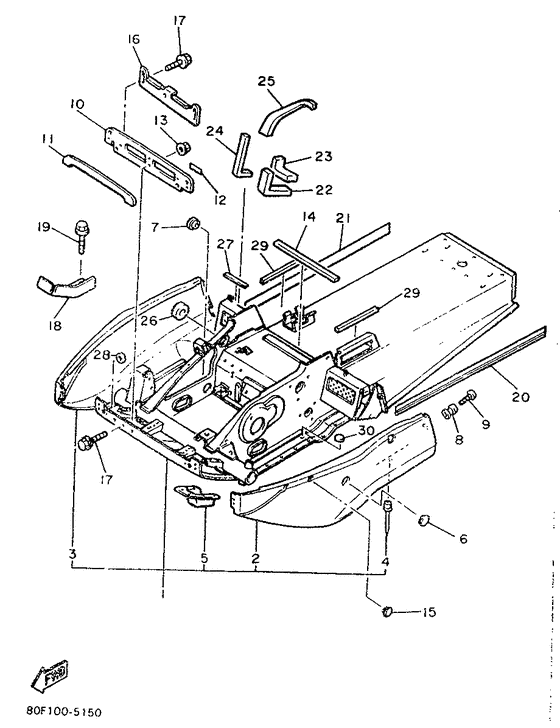

Frame Diagram Yamaha BR250 Bravo
- Model code
- 81F
- Engine Capacity
- 246
- Year
- 1996
- Sales region
- Europe (General) (999)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8Y8-21910-00-00
Frame Comp
|
8Y8-21910-00-00 |
— | ||
| replacement | |||||
|
01
|
01
8Y8-21910-09-00
Frame Comp
|
8Y8-21910-09-00 |
— | ||
|
02
|
02
8V8-21982-00-00
Hood 1
|
8V8-21982-00-00 |
— | ||
|
03
|
03
8X8-21983-00-00 Hood 2 |
8X8-21983-00-00 |
US $187.90 |
||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
90267-48060-00 Rivet, Blind (4.8X12.9 Black) |
90267-48060-00 |
from US $2.69 |
||
|
05
|
05
80F-2198G-00-00 Cover 2 |
80F-2198G-00-00 |
from US $18.14 |
||
|
06
|
06
90338-40099-00 Plug |
90338-40099-00 |
from US $2.83 |
||
|
07
|
07
90480-40047-00 Grommet |
90480-40047-00 |
from US $2.83 |
||
|
08
|
08
8M6-77175-00-00 Holder, Latch |
8M6-77175-00-00 |
from US $6.09 |
||
|
09
|
09
98906-06030-00 Screw, Bind |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
10
|
10
8V7-2198F-00-00 Cover 1 |
8V7-2198F-00-00 |
from US $36.20 |
||
|
11
|
11
8V7-77198-01-00 Damper 1 |
8V7-77198-01-00 |
from US $4.96 |
||
|
12
|
12
8V7-77762-00-00 Label, Warning 2 |
8V7-77762-00-00 |
US $13.77 |
||
| replacement | |||||
|
12
|
12
8BE-77762-00-00 Label, Warning 2 |
8BE-77762-00-00 |
US $13.77 |
||
|
13
|
13
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
14
|
14
8R4-23891-00-00 Shield, Noise 1 |
8R4-23891-00-00 |
from US $3.26 |
||
|
15
|
15
90338-09127-00 Plug |
90338-09127-00 |
from US $1.70 |
||
|
16
|
16
8V7-2198G-00-00 Cover 2 |
8V7-2198G-00-00 |
from US $21.25 |
||
|
17
|
17
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
17
|
17
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
18
|
18
8Y8-2199H-00-00
Shield, Heat
|
8Y8-2199H-00-00 |
— | ||
|
19
|
19
95802-06010-00 Bolt, Flange |
95802-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
19
|
19
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
20
|
20
8X4-77354-00-00 Emblem 4 |
8X4-77354-00-00 |
US $41.35 |
||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
8X4-77355-00-00 Emblem 5 |
8X4-77355-00-00 |
US $40.25 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
23
|
23
8V7-21962-00-00 Patch 1 |
8V7-21962-00-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
24
|
24
8V7-21963-00-00 Patch 3 |
8V7-21963-00-00 |
US $1.10 |
||
|
25
|
25
8V7-21964-00-00
Patch 4
|
8V7-21964-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
80F-21967-00-00 Patch 7 |
80F-21967-00-00 |
US $1.10 |
||
|
27
|
27
80F-21988-00-00 Patch 8 |
80F-21988-00-00 |
from US $0.77 |
||
| replacement | |||||
|
27
|
27
905-20100-12-00 Damper, Plate |
905-20100-12-00 |
from US $0.65 |
||
|
28
|
28
80F-21989-00-00 Patch 9 |
80F-21989-00-00 |
from US $0.56 |
||
|
29
|
29
80F-21997-00-00
Patch 10
|
80F-21997-00-00 |
— | ||
|
30
|
30
80F-21998-00-00 Spacer |
80F-21998-00-00 |
from US $8.36 |
||
