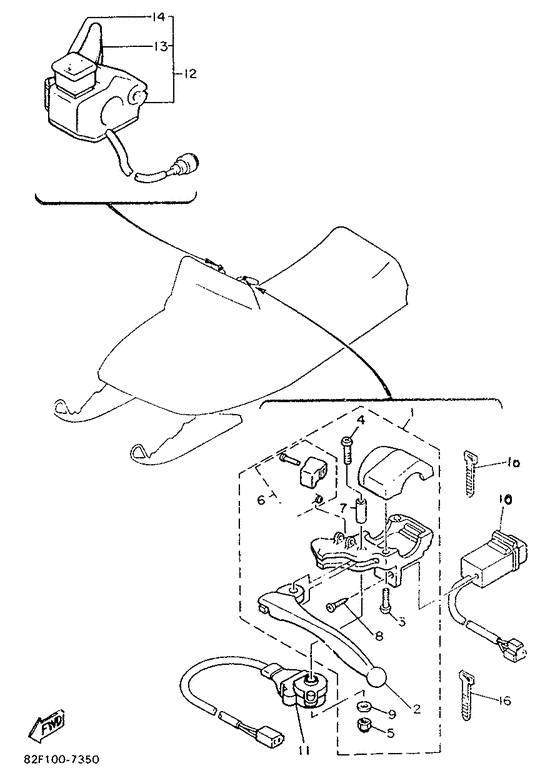

Electrical 2 Diagram Yamaha BR250 Bravo
- Model code
- 82F
- Engine Capacity
- 246
- Year
- 1997
- Sales region
- North America (999)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8L8-W8291-00-00 Emblem 1 |
8L8-W8291-00-00 |
from US $82.07 |
||
| replacement | |||||
|
01
|
01
88R-W8291-00-00 Lever Holder Assy (Left) |
88R-W8291-00-00 |
from US $82.07 |
||
|
02
|
02
8H8-83912-00-00 Lever 1 |
8H8-83912-00-00 |
from US $15.30 |
||
|
03
|
03
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
03
|
03
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
04
|
04
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
04
|
04
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
04
|
04
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
05
|
05
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
06
|
06
8K4-83930-00-00 Lever Lock Assembly (8K4-8393 |
8K4-83930-00-00 |
US $34.58 |
||
| replacement | |||||
|
06
|
06
82A-83930-00-00 Lever Lock Assembly (8K4-8393 |
82A-83930-00-00 |
US $34.58 |
||
|
07
|
07
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
08
|
08
97701-30712-00
Screw, Tapping
|
97701-30712-00 |
— | ||
| replacement | |||||
|
08
|
08
97780-30312-00
Screw, O Head Tapping
|
97780-30312-00 |
— | ||
|
09
|
09
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
10
|
10
8H8-83950-01-00 Beam Switch Assy |
8H8-83950-01-00 |
from US $50.70 |
||
|
11
|
11
8R4-82530-00-00 Stop Switch Assy |
8R4-82530-00-00 |
from US $17.85 |
||
|
12
|
12
82F-82720-00-00 Lever Holder Assy (Right) |
82F-82720-00-00 |
US $216.32 |
||
| replacement | |||||
|
12
|
12
85G-82720-00-00
Lvr Holder Assembly Rt
|
85G-82720-00-00 |
— | ||
|
13
|
13
8V0-42138-00-00 Lever, Throttle |
8V0-42138-00-00 |
from US $32.33 |
||
|
14
|
14
82F-82575-09-00
Emergency Safetysw
|
82F-82575-09-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
366-82591-00-00 Band, Switch Cord |
366-82591-00-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
16
|
16
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
16
|
16
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
