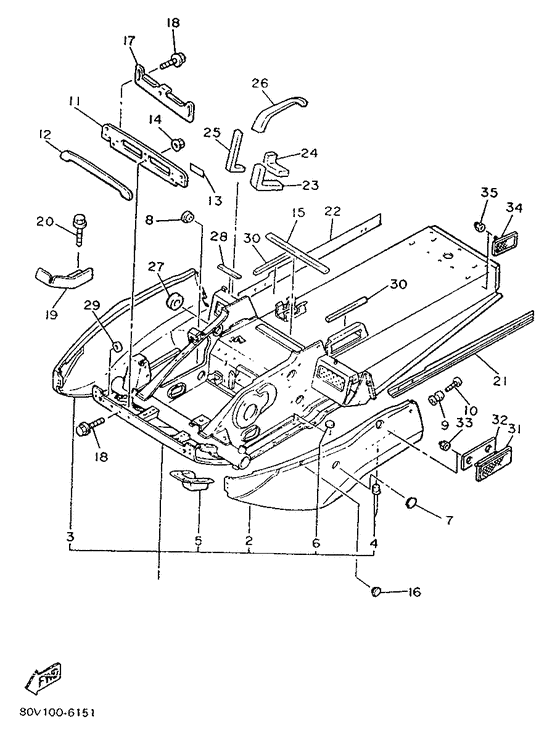

Frame Diagram Yamaha BR250 Bravo
- Model code
- 82F
- Engine Capacity
- 246
- Year
- 1997
- Sales region
- North America (999)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
80F-21910-00-00
Frame Comp
|
80F-21910-00-00 |
— | ||
| replacement | |||||
|
01
|
01
80F-21910-09-00
Frame
|
80F-21910-09-00 |
— | ||
|
02
|
02
80F-21982-00-00 Hood 1 |
80F-21982-00-00 |
from US $212.27 |
||
| replacement | |||||
|
02
|
02
84A-21982-00-00
Hood 1
|
84A-21982-00-00 |
— | ||
|
03
|
03
80F-21983-00-00 Hood 2 |
80F-21983-00-00 |
from US $187.90 |
||
| replacement | |||||
|
03
|
03
84A-21983-00-00 Hood 2 |
84A-21983-00-00 |
from US $187.90 |
||
|
04
|
04
90267-48060-00 Rivet, Blind (4.8X12.9 Black) |
90267-48060-00 |
from US $2.69 |
||
|
05
|
05
80F-2198G-00-00 Cover 2 |
80F-2198G-00-00 |
from US $18.14 |
||
|
06
|
06
80F-21998-00-00 Spacer |
80F-21998-00-00 |
from US $8.36 |
||
|
07
|
07
90338-40099-00 Plug |
90338-40099-00 |
from US $2.83 |
||
|
08
|
08
90480-40047-00 Grommet |
90480-40047-00 |
from US $2.83 |
||
|
09
|
09
8M6-77175-00-00 Holder, Latch |
8M6-77175-00-00 |
from US $6.09 |
||
|
10
|
10
98906-06030-00 Screw, Bind |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
11
|
11
8V7-2198F-00-00 Cover 1 |
8V7-2198F-00-00 |
from US $36.20 |
||
|
12
|
12
8V7-77198-01-00 Damper 1 |
8V7-77198-01-00 |
from US $4.96 |
||
|
13
|
13
8V7-77762-00-00 Label, Warning 2Ur for canada |
8V7-77762-00-00 |
US $13.77 |
||
| replacement | |||||
|
13
|
13
8BE-77762-00-00 Label, Warning 2Ur for canada |
8BE-77762-00-00 |
US $13.77 |
||
|
13
|
13
8V7-77763-00-00
Label, Warning 3
Ur |
8V7-77763-00-00 |
— | ||
| replacement | |||||
|
13
|
13
8V7-77763-01-00
Label, Warning 3
Ur |
8V7-77763-01-00 |
— | ||
|
14
|
14
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
15
|
15
8R4-23891-00-00 Shield, Noise 1 |
8R4-23891-00-00 |
from US $3.26 |
||
|
16
|
16
90338-09127-00 Plug |
90338-09127-00 |
from US $1.70 |
||
|
17
|
17
8V7-2198G-00-00 Cover 2 |
8V7-2198G-00-00 |
from US $21.25 |
||
|
18
|
18
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
18
|
18
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
19
|
19
80F-2199H-00-00
Shield, Heat
|
80F-2199H-00-00 |
— | ||
| replacement | |||||
|
19
|
19
8Y8-2199H-00-00
Shield, Heat
|
8Y8-2199H-00-00 |
— | ||
|
20
|
20
95801-06012-00 Bolt, Flange (1E2) |
95801-06012-00 |
from US $1.07 |
||
| replacements | |||||
|
20
|
20
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
20
|
20
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
21
|
21
82F-77354-00-00 Emblem 4 |
82F-77354-00-00 |
US $37.08 |
||
|
22
|
22
82F-77355-00-00 Emblem 5 |
82F-77355-00-00 |
US $37.08 |
||
|
23
|
23
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
24
|
24
8V7-21962-00-00 Patch 1 |
8V7-21962-00-00 |
from US $2.13 |
||
| replacement | |||||
|
24
|
24
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
25
|
25
8V7-21963-00-00 Patch 3 |
8V7-21963-00-00 |
US $1.10 |
||
|
26
|
26
8V7-21964-00-00
Patch 4
|
8V7-21964-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
80F-21967-00-00 Patch 7 |
80F-21967-00-00 |
US $1.10 |
||
|
28
|
28
80F-21988-00-00 Patch 8 |
80F-21988-00-00 |
from US $0.77 |
||
| replacement | |||||
|
28
|
28
905-20100-12-00 Damper, Plate |
905-20100-12-00 |
from US $0.65 |
||
|
29
|
29
80F-21989-00-00 Patch 9 |
80F-21989-00-00 |
from US $0.56 |
||
|
30
|
30
80F-21997-00-00
Patch 10
|
80F-21997-00-00 |
— | ||
|
31
|
31
80E-85110-00-00 Reflector Assembly |
80E-85110-00-00 |
US $20.41 |
||
| replacement | |||||
|
31
|
31
81E-85110-00-00
Reflector Assembly
|
81E-85110-00-00 |
— | ||
|
32
|
32
80F-85115-00-00 Base, Reflector |
80F-85115-00-00 |
from US $3.44 |
||
|
33
|
33
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
33
|
33
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
34
|
34
3Y6-85130-01-00 Rear Reflector Assy |
3Y6-85130-01-00 |
from US $21.40 |
||
| replacement | |||||
|
34
|
34
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
35
|
35
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
