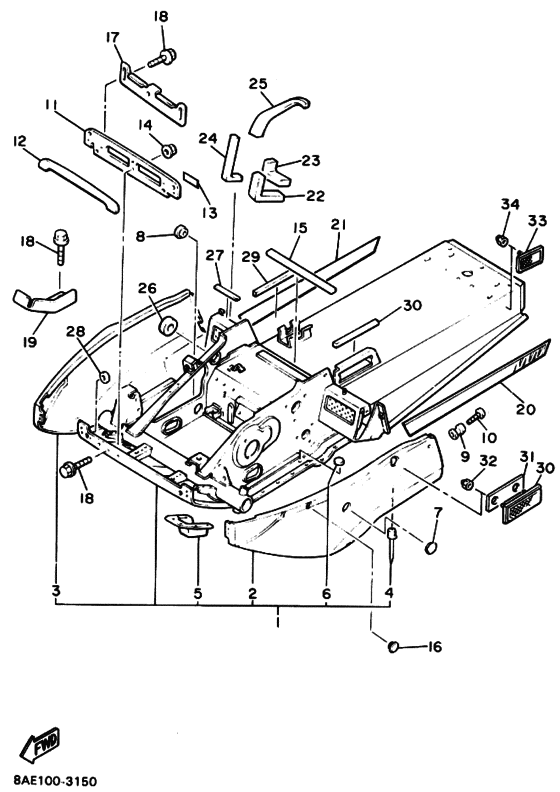

Frame Diagram Yamaha BR250 Bravo
- Model code
- 8AE1
- Engine Capacity
- 246
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AE-21910-00-00
Frame Comp
．ＦＲＡＭＥ ＣＯＭＰ; |
8AE-21910-00-00 |
— | ||
|
2
|
2
88C-21982-00-00 Hood 1・ＨＯＯＤ １; |
88C-21982-00-00 |
from US $236.65 |
||
| replacement | |||||
|
2
|
2
84A-21982-00-00
Hood 1
・ＨＯＯＤ １; |
84A-21982-00-00 |
— | ||
|
3
|
3
88C-21983-00-00 Hood 2・ＨＯＯＤ ２; |
88C-21983-00-00 |
from US $187.90 |
||
| replacement | |||||
|
3
|
3
84A-21983-00-00 Hood 2・ＨＯＯＤ ２; |
84A-21983-00-00 |
from US $187.90 |
||
|
4
|
4
90267-48060-00 Rivet, Blind (4.8X12.9 Black)・ＲＩＶＥＴ， ｂｌｉｎｄ; |
90267-48060-00 |
from US $2.69 |
||
|
5
|
5
80F-2198G-00-00 Cover 2・ＣＯＶＥＲ ２; |
80F-2198G-00-00 |
from US $18.14 |
||
|
6
|
6
80F-21998-00-00 Spacer・ＳＰＡＣＥＲ; |
80F-21998-00-00 |
from US $8.36 |
||
|
7
|
7
90338-40099-00 PlugＰＬＵＧ; |
90338-40099-00 |
from US $2.83 |
||
|
8
|
8
90480-40047-00 GrommetＧＲＯＭＭＥＴ; |
90480-40047-00 |
from US $2.83 |
||
|
9
|
9
8M6-77175-00-00 Holder, LatchＨＯＬＤＥＲ， ｌａｔｃｈ; |
8M6-77175-00-00 |
from US $6.09 |
||
|
10
|
10
98906-06030-00 Screw, BindＳＣＲＥＷ， ｂｉｎｄ; |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98907-06030-00 Screw, BindＳＣＲＥＷ， ｂｉｎｄ; |
98907-06030-00 |
from US $1.56 |
||
|
11
|
11
8V7-2198F-00-00 Cover 1ＣＯＶＥＲ １; |
8V7-2198F-00-00 |
from US $36.20 |
||
|
12
|
12
8V7-77198-01-00 Damper 1ＤＡＭＰＥＲ １; |
8V7-77198-01-00 |
from US $4.96 |
||
|
13
|
13
8Y0-77762-00-00 Label, Warning 2ＬＡＢＥＬ， ｗａｒｎｉｎｇ ２; |
8Y0-77762-00-00 |
US $14.85 |
||
| replacement | |||||
|
13
|
13
8BE-77762-00-00 Label, Warning 2ＬＡＢＥＬ， ｗａｒｎｉｎｇ ２; |
8BE-77762-00-00 |
US $13.77 |
||
|
14
|
14
957-01065-00-00
Nut, Flange(34M)
ＮＵＴ， ｆｌａｎｇｅ; |
957-01065-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95780-06500-00 Nut, FlangeＮＵＴ， ｆｌａｎｇｅ; |
95780-06500-00 |
from US $1.25 |
||
|
15
|
15
8R4-23891-00-00 Shield, Noise 1ＳＨＩＥＬＤ， ｎｏｉｓｅ １; |
8R4-23891-00-00 |
from US $3.26 |
||
|
16
|
16
90338-09127-00 PlugＰＬＵＧ; |
90338-09127-00 |
from US $1.70 |
||
|
17
|
17
8V7-2198G-00-00 Cover 2ＣＯＶＥＲ ２; |
8V7-2198G-00-00 |
from US $21.25 |
||
|
18
|
18
958-11060-12-00
Bolt, Flange (4H7)
ＢＯＬＴ， ｆｌａｎｇｅ; |
958-11060-12-00 |
— | ||
| replacements | |||||
|
18
|
18
958-17060-12-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
95812-06012-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
95812-06012-00 |
from US $1.39 |
||
|
19
|
19
80F-2199H-00-00
Shield, Heat
ＳＨＩＥＬＤ， ｈｅａｔ; |
80F-2199H-00-00 |
— | ||
| replacement | |||||
|
19
|
19
8Y8-2199H-00-00
Shield, Heat
ＳＨＩＥＬＤ， ｈｅａｔ; |
8Y8-2199H-00-00 |
— | ||
|
20
|
20
8AE-77354-00-00
Emblem 4
ＥＭＢＬＥＭ ４; |
8AE-77354-00-00 |
— | ||
|
21
|
21
8AE-77355-00-00
Emblem 5
ＥＭＢＬＥＭ ５; |
8AE-77355-00-00 |
— | ||
|
22
|
22
8V7-21961-00-00 Patch 1ＰＡＴＣＨ １; |
8V7-21961-00-00 |
from US $2.13 |
||
|
23
|
23
8V7-21961-00-00 Patch 1ＰＡＴＣＨ １; |
8V7-21961-00-00 |
from US $2.13 |
||
|
24
|
24
8V7-21963-00-00 Patch 3ＰＡＴＣＨ ３; |
8V7-21963-00-00 |
US $1.10 |
||
|
25
|
25
82X-21964-00-00 Patch 4ＰＡＴＣＨ ４; |
82X-21964-00-00 |
US $10.19 |
||
|
26
|
26
80F-21967-00-00 Patch 7ＰＡＴＣＨ ７; |
80F-21967-00-00 |
US $1.10 |
||
|
27
|
27
80F-21988-00-00 Patch 8ＰＡＴＣＨ ８; |
80F-21988-00-00 |
from US $0.77 |
||
| replacement | |||||
|
27
|
27
905-20100-12-00 Damper, PlateＰＡＴＣＨ ８; |
905-20100-12-00 |
from US $0.65 |
||
|
28
|
28
80F-21989-00-00 Patch 9ＰＡＴＣＨ ９; |
80F-21989-00-00 |
from US $0.56 |
||
|
29
|
29
80F-21997-00-00
Patch 10
ＰＡＴＣＨ １０; |
80F-21997-00-00 |
— | ||
|
30
|
30
86R-85110-00-00 Reflector AssyＦＲＯＮＴ ＲＥＦＬＥＣＴＯＲ ＡＳＳＹ; |
86R-85110-00-00 |
from US $12.06 |
||
|
31
|
31
80F-85115-00-00 Base, ReflectorＢＡＳＥ， ｒｅｆｌｅｃｔｏｒ; |
80F-85115-00-00 |
from US $3.44 |
||
|
32
|
32
957-01055-00-00
Nut, Flange
ＮＵＴ， ｆｌａｎｇｅ; |
957-01055-00-00 |
— | ||
| replacement | |||||
|
32
|
32
95707-05500-00 Nut, FlangeＮＵＴ， ｆｌａｎｇｅ; |
95707-05500-00 |
from US $1.07 |
||
|
33
|
33
3Y6-85130-02-00 ReflectorＲＥＡＲ ＲＥＦＬＥＣＴＯＲ ＡＳＳＹ; |
3Y6-85130-02-00 |
from US $12.80 |
||
|
34
|
34
957-01055-00-00
Nut, Flange
ＮＵＴ， ｆｌａｎｇｅ; |
957-01055-00-00 |
— | ||
| replacement | |||||
|
34
|
34
95707-05500-00 Nut, FlangeＮＵＴ， ｆｌａｎｇｅ; |
95707-05500-00 |
from US $1.07 |
||
