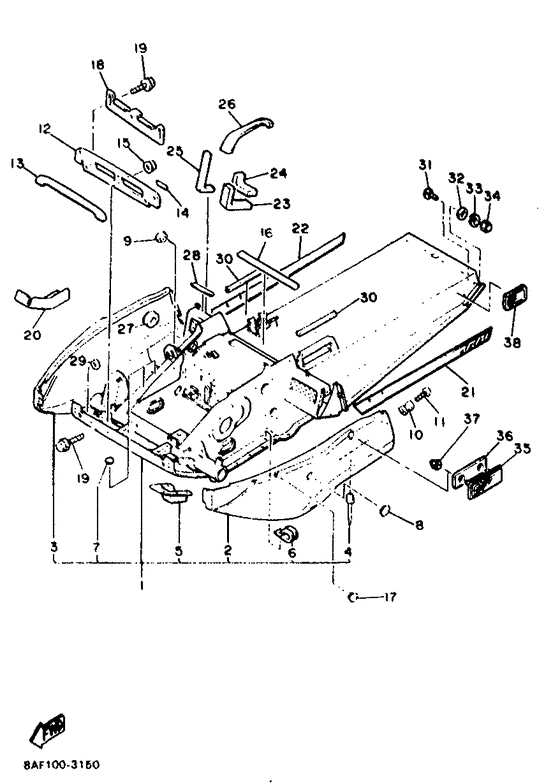

Frame Diagram Yamaha BR250 Bravo Trapper
- Model code
- 8BD1
- Engine Capacity
- 246
- Year
- 1994
- Sales region
- Europe (General) (999)
- Power
- 18 hp
- Model
- Bravo Trapper
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
86C-21910-00-00
Frame Comp
Ur forjapan |
86C-21910-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur forjapan |
999-99999-99-00 |
— | ||
|
01
|
01
87T-21910-00-00
Frame Comp
Ur for canada |
87T-21910-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for canada |
999-99999-99-00 |
— | ||
|
02
|
02
80J-21982-00-00 Hood 1Ur for japan |
80J-21982-00-00 |
from US $236.65 |
||
| replacement | |||||
|
02
|
02
84A-21982-00-00
Hood 1
Ur for japan |
84A-21982-00-00 |
— | ||
|
02
|
02
84A-21982-00-00
Hood 1
Ur for canada |
84A-21982-00-00 |
— | ||
|
03
|
03
80J-21983-00-00 Hood 2Urfor japan |
80J-21983-00-00 |
from US $187.90 |
||
| replacement | |||||
|
03
|
03
84A-21983-00-00 Hood 2Urfor japan |
84A-21983-00-00 |
from US $187.90 |
||
|
03
|
03
84A-21983-00-00 Hood 2Ur for canada |
84A-21983-00-00 |
from US $187.90 |
||
|
04
|
04
90267-48060-00 Rivet, Blind (4.8X12.9 Black) |
90267-48060-00 |
from US $2.69 |
||
|
05
|
05
80F-2198G-00-00 Cover 2 |
80F-2198G-00-00 |
from US $18.14 |
||
|
06
|
06
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
07
|
07
80F-21998-00-00 Spacer |
80F-21998-00-00 |
from US $8.36 |
||
|
08
|
08
90338-40099-00 Plug |
90338-40099-00 |
from US $2.83 |
||
|
09
|
09
90480-40047-00 Grommet |
90480-40047-00 |
from US $2.83 |
||
|
10
|
10
8M6-77175-00-00 Holder, Latch |
8M6-77175-00-00 |
from US $6.09 |
||
|
11
|
11
98906-06030-00 Screw, Bind |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
12
|
12
8V7-2198F-00-00 Cover 1 |
8V7-2198F-00-00 |
from US $36.20 |
||
|
13
|
13
8V7-77198-01-00 Damper 1 |
8V7-77198-01-00 |
from US $4.96 |
||
|
14
|
14
8V7-77762-01-00 Label Warning 2Ur for canada |
8V7-77762-01-00 |
US $13.77 |
||
| replacement | |||||
|
14
|
14
8BE-77762-00-00 Label, Warning 2Ur for canada |
8BE-77762-00-00 |
US $13.77 |
||
|
14
|
14
8Y0-77762-90-00 Label, Warning 2Urfor japan |
8Y0-77762-90-00 |
from US $10.91 |
||
|
15
|
15
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
16
|
16
8R4-23891-00-00 Shield, Noise 1 |
8R4-23891-00-00 |
from US $3.26 |
||
|
17
|
17
90338-09127-00 Plug |
90338-09127-00 |
from US $1.70 |
||
|
18
|
18
8V7-2198G-00-00 Cover 2 |
8V7-2198G-00-00 |
from US $21.25 |
||
|
19
|
19
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
19
|
19
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
19
|
19
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
20
|
20
80F-2199H-00-00
Shield, Heat
|
80F-2199H-00-00 |
— | ||
| replacement | |||||
|
20
|
20
8Y8-2199H-00-00
Shield, Heat
|
8Y8-2199H-00-00 |
— | ||
|
21
|
21
88D-77354-00-00
Emblem 4
|
88D-77354-00-00 |
— | ||
|
22
|
22
8BD-77355-00-00
Emblem 5
|
8BD-77355-00-00 |
— | ||
|
23
|
23
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
24
|
24
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
25
|
25
8V7-21963-00-00 Patch 3 |
8V7-21963-00-00 |
US $1.10 |
||
|
26
|
26
82X-21964-00-00 Patch 4 |
82X-21964-00-00 |
US $10.19 |
||
|
27
|
27
80F-21967-00-00 Patch 7 |
80F-21967-00-00 |
US $1.10 |
||
|
28
|
28
80F-21988-00-00 Patch 8 |
80F-21988-00-00 |
from US $0.77 |
||
| replacement | |||||
|
28
|
28
905-20100-12-00 Damper, Plate |
905-20100-12-00 |
from US $0.65 |
||
|
29
|
29
80F-21989-00-00 Patch 9 |
80F-21989-00-00 |
from US $0.56 |
||
|
30
|
30
80F-21997-00-00
Patch 10
|
80F-21997-00-00 |
— | ||
|
31
|
31
98901-08016-00 Screw, Bind |
98901-08016-00 |
US $0.83 |
||
| replacement | |||||
|
31
|
31
98907-08016-00 Screw, Bind |
98907-08016-00 |
from US $0.83 |
||
|
32
|
32
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
33
|
33
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
34
|
34
95306-08800-00 Nut |
95306-08800-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
95307-08800-00 Nut |
95307-08800-00 |
from US $1.56 |
||
|
35
|
35
86R-85110-00-00 Reflector Assy |
86R-85110-00-00 |
from US $12.06 |
||
|
36
|
36
80F-85115-00-00 Base, Reflector |
80F-85115-00-00 |
from US $3.44 |
||
|
37
|
37
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
37
|
37
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
38
|
38
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
