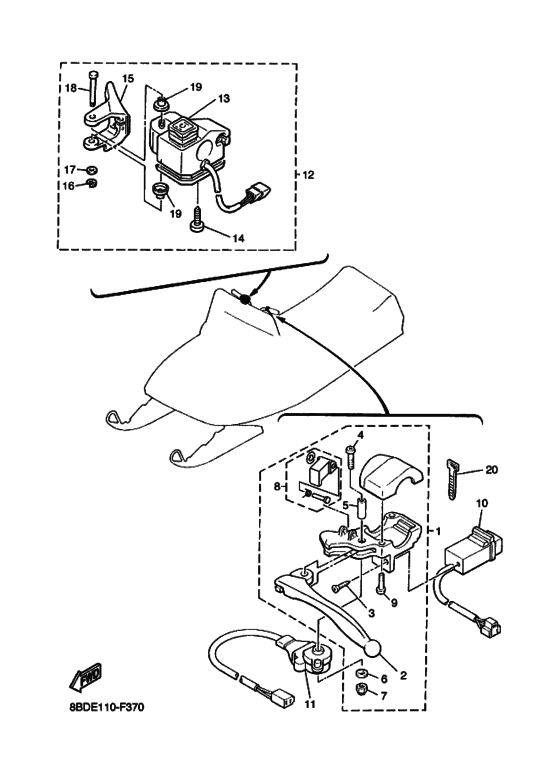

Handle switch & lever Diagram Yamaha BR250 Bravo
- Model code
- 8BDM
- Engine Capacity
- 246
- Year
- 2011
- Sales region
- Europe (010)
- Colour
- Black Metallic X (SMX; 0903)
- Color Variant
- A
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R4-W8291-02-00
Lever Holder Assy (Left)
|
8R4-W8291-02-00 |
— | ||
|
2
|
2
8H8-83912-00-00 Lever 1 |
8H8-83912-00-00 |
from US $15.30 |
||
|
3
|
3
8R4-8252V-00-00 Screw, Special |
8R4-8252V-00-00 |
from US $0.83 |
||
|
4
|
4
8R4-82113-00-00 Screw |
8R4-82113-00-00 |
from US $1.21 |
||
|
5
|
5
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
6
|
6
92902-05200-00 Washer, Plain |
92902-05200-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
7
|
7
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
8
|
8
8K4-W8393-00-00 Lever Lock Assy |
8K4-W8393-00-00 |
from US $16.72 |
||
|
9
|
9
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
10
|
10
8H8-83950-01-00 Beam Switch Assy |
8H8-83950-01-00 |
from US $50.70 |
||
|
11
|
11
8R4-82530-00-00 Stop Switch Assy |
8R4-82530-00-00 |
from US $17.85 |
||
|
12
|
12
8AD-82720-00-00 Lever Holder Assy (Right) |
8AD-82720-00-00 |
from US $104.17 |
||
|
13
|
13
8AD-82575-09-00 Engine Stop Switch Assy |
8AD-82575-09-00 |
from US $57.89 |
||
|
14
|
14
8R6-83928-00-00 Screw |
8R6-83928-00-00 |
from US $1.98 |
||
|
15
|
15
8V0-42138-00-00 Lever, Throttle |
8V0-42138-00-00 |
from US $32.33 |
||
|
16
|
16
99001-04600-00 Circlip |
99001-04600-00 |
from US $1.63 |
||
| replacement | |||||
|
16
|
16
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
17
|
17
85G-83663-00-00 Washer, Special |
85G-83663-00-00 |
from US $1.56 |
||
|
18
|
18
8R6-8399F-00-00 Shaft |
8R6-8399F-00-00 |
from US $4.03 |
||
|
19
|
19
85G-83956-00-00 Cap 1 |
85G-83956-00-00 |
from US $1.56 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
