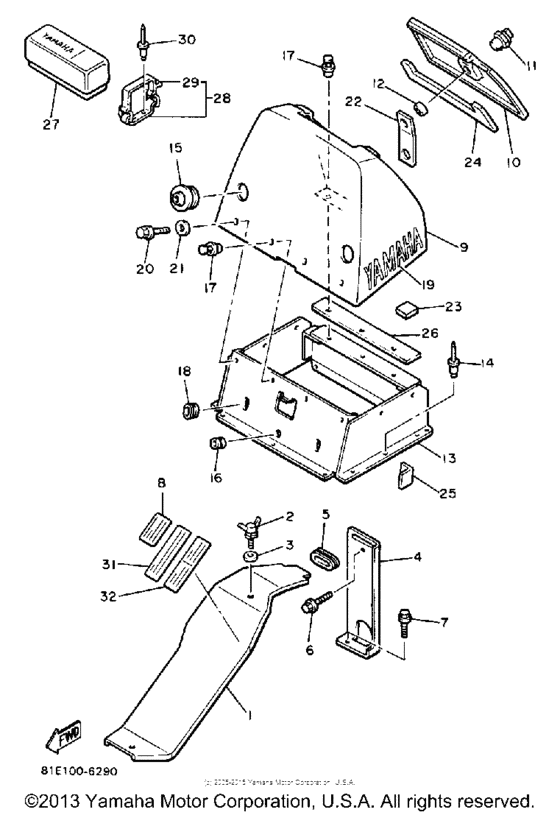

Guard & luggage box Diagram Yamaha CF300 Inviter
- Model code
- CF300K
- Engine Capacity
- 293
- Year
- 1986
- Sales region
- USA
- Power
- 28 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81E-77311-00-00
Guard, Drive
|
81E-77311-00-00 |
— | ||
|
2
|
2
901-22080-23-00
Bolt, Wing
|
901-22080-23-00 |
— | ||
|
3
|
3
90201-08730-00 Washer, Plate |
90201-08730-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
90201-087F0-00 Washer, Plate |
90201-087F0-00 |
from US $1.70 |
||
|
4
|
4
81E-77315-00-00 Bracket 1 |
81E-77315-00-00 |
US $14.89 |
||
|
5
|
5
904-80584-40-00
Grommet
|
904-80584-40-00 |
— | ||
|
6
|
6
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
7
|
7
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
7
|
7
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
8
|
8
898-77762-00-00 Label, Warning 2 |
898-77762-00-00 |
from US $3.12 |
||
| replacement | |||||
|
8
|
8
8BD-77762-00-00 Label, Warning 2 |
8BD-77762-00-00 |
from US $3.12 |
||
|
9
|
9
81E-77391-00-00
Luggage Box
|
81E-77391-00-00 |
— | ||
|
10
|
10
81E-77392-00-00
Cover, Luggage Box
|
81E-77392-00-00 |
— | ||
|
11
|
11
25G-21708-00-00
Side Cover Lock Assy (J42-2170
|
25G-21708-00-00 |
— | ||
|
12
|
12
903-87205-N3-00 Collar |
903-87205-N3-00 |
US $7.47 |
||
|
13
|
13
81E-77394-00-00
Sheet, Luggage Box
|
81E-77394-00-00 |
— | ||
|
14
|
14
90267-48051-00 Rivet, Blind (4.8X18.7 Black)4.8X18.7 BLACK |
90267-48051-00 |
from US $2.05 |
||
|
15
|
15
81E-77373-00-00
Protector
|
81E-77373-00-00 |
— | ||
|
16
|
16
90480-13175-00
Grommet
|
90480-13175-00 |
— | ||
|
17
|
17
90269-08050-00 Rivet, Spec''l Shape |
90269-08050-00 |
from US $2.27 |
||
|
18
|
18
90480-22084-00 Grommet |
90480-22084-00 |
from US $4.68 |
||
|
19
|
19
81E-77355-00-00
Emblem 5
|
81E-77355-00-00 |
— | ||
|
20
|
20
95026-06040-00 Bolt, Flange |
95026-06040-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.28 |
||
|
21
|
21
90387-061R5-00
Collar
|
90387-061R5-00 |
— | ||
|
22
|
22
81E-77577-00-00
Plate
|
81E-77577-00-00 |
— | ||
|
23
|
23
81E-7717E-00-00
Tape 1
|
81E-7717E-00-00 |
— | ||
|
24
|
24
81E-7717F-00-00
Tape 2
|
81E-7717F-00-00 |
— | ||
|
25
|
25
81E-7717G-00-00
Tape 3
|
81E-7717G-00-00 |
— | ||
|
26
|
26
81E-77319-00-00 Damper 1 |
81E-77319-00-00 |
US $1.87 |
||
|
27
|
27
8V0-W2810-00-00 Tool Kit |
8V0-W2810-00-00 |
from US $49.88 |
||
| replacements | |||||
|
27
|
27
85L-28100-00-00 Tool Kit |
85L-28100-00-00 |
from US $49.88 |
||
|
27
|
27
85L-28100-01-00 Tool Kit |
85L-28100-01-00 |
from US $49.88 |
||
|
28
|
28
81E-21945-00-00 Bracket, Tool Box Fitting |
81E-21945-00-00 |
from US $13.32 |
||
|
29
|
29
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
30
|
30
90267-48051-00 Rivet, Blind (4.8X18.7 Black)4.8X18.7 BLACK |
90267-48051-00 |
from US $2.05 |
||
|
31
|
31
81E-1417E-00-00
Label, Caution
|
81E-1417E-00-00 |
— | ||
|
32
|
32
81E-47578-00-00
Label, 1
|
81E-47578-00-00 |
— | ||
