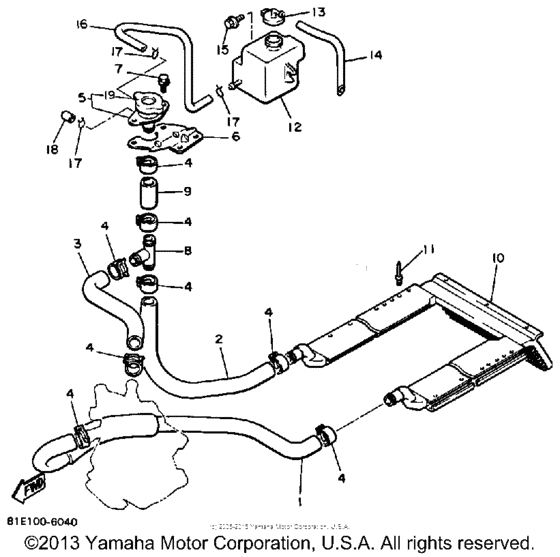

Radiator - hose Diagram Yamaha CF300 Inviter
- Model code
- CF300K
- Engine Capacity
- 293
- Year
- 1986
- Sales region
- USA
- Power
- 28 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81E-12481-00-00
Pipe 1
|
81E-12481-00-00 |
— | ||
|
2
|
2
81E-12483-00-00
Pipe 3
|
81E-12483-00-00 |
— | ||
|
3
|
3
81E-12484-00-00
Pipe 4
|
81E-12484-00-00 |
— | ||
|
4
|
4
90467-23067-00 Clip |
90467-23067-00 |
from US $1.84 |
||
|
5
|
5
47X-12590-01-00 Conduction Assembly |
47X-12590-01-00 |
from US $101.98 |
||
|
6
|
6
81E-12443-00-00 Stay |
81E-12443-00-00 |
US $14.47 |
||
|
7
|
7
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
7
|
7
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
7
|
7
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
8
|
8
81E-12581-00-00
Joint, Hose 1
|
81E-12581-00-00 |
— | ||
|
9
|
9
59W-12482-00-00
Pipe 2
|
59W-12482-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
81E-12440-00-00 Heat Exchanger Assembly |
81E-12440-00-00 |
US $528.93 |
||
|
11
|
11
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
12
|
12
81E-21871-00-00
Tank, Recovery
|
81E-21871-00-00 |
— | ||
|
13
|
13
81E-21815-00-00 Cap |
81E-21815-00-00 |
from US $13.18 |
||
|
14
|
14
90445-115E8-00 Hose |
90445-115E8-00 |
US $12.61 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
15
|
15
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
16
|
16
90445-11295-00 Hose (L100) |
90445-11295-00 |
from US $3.68 |
||
| replacement | |||||
|
16
|
16
90445-11293-00 Hose (L100) |
90445-11293-00 |
from US $3.68 |
||
|
17
|
17
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
17
|
17
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
17
|
17
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
18
|
18
81E-13569-00-00
Plug, Blind
|
81E-13569-00-00 |
— | ||
|
19
|
19
22W-12462-00-00
Cap, Radiator
|
22W-12462-00-00 |
— | ||
| replacements | |||||
|
19
|
19
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
19
|
19
4FL-12462-00-00 Cap, Radiator |
4FL-12462-00-00 |
from US $29.88 |
||
