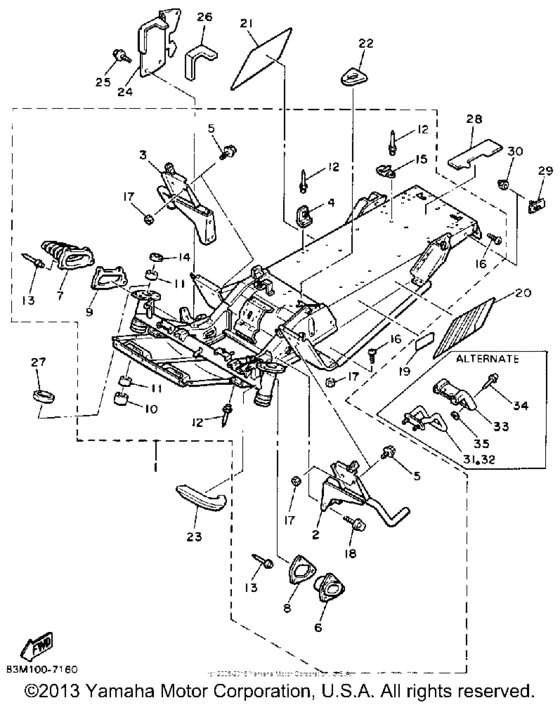

Frame Diagram Yamaha CF300 Inviter
- Model code
- CF300N
- Engine Capacity
- 293
- Year
- 1989
- Sales region
- USA
- Power
- 28 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86W-21910-00-00
Frame Comp
|
86W-21910-00-00 |
— | ||
|
1
|
1
81E-21912-09-00
Belly Pan
|
81E-21912-09-00 |
— | ||
|
2
|
2
81E-21929-00-00
Rnfcmnt, Frame Side
|
81E-21929-00-00 |
— | ||
|
3
|
3
81E-2192E-00-00 Reinforcmnt, Frame |
81E-2192E-00-00 |
US $57.06 |
||
|
4
|
4
8V0-21946-00-00 Bracket, Seat Fitting |
8V0-21946-00-00 |
from US $5 |
||
|
5
|
5
95816-06016-00 Bolt, Flange(52G) |
95816-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
6
|
6
80L-2198F-00-00 Cover 1 |
80L-2198F-00-00 |
US $36.50 |
||
|
7
|
7
81E-23818-00-00
Cover, Steering
|
81E-23818-00-00 |
— | ||
|
8
|
8
80L-77525-00-00
Washer 1
|
80L-77525-00-00 |
— | ||
|
9
|
9
81E-77526-00-00
Washer 2
|
81E-77526-00-00 |
— | ||
|
10
|
10
93103-44134-00
Oil Seal
|
93103-44134-00 |
— | ||
|
11
|
11
90384-44173-00 Bush, Bimetal Formed |
90384-44173-00 |
from US $17.63 |
||
|
12
|
12
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
13
|
13
90267-40105-00 Rivet, Blind(8R6) |
90267-40105-00 |
from US $1.98 |
||
|
14
|
14
93104-44095-00 Oil Seal |
93104-44095-00 |
US $7.60 |
||
|
15
|
15
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
15
|
15
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
16
|
16
98906-06014-00 Screw, Bind |
98906-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.56 |
||
|
17
|
17
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
18
|
18
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
18
|
18
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
18
|
18
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
19
|
19
8K2-77742-00-00
Indicator 2
|
8K2-77742-00-00 |
— | ||
|
20
|
20
86E-77353-00-00 Emblem 3 |
86E-77353-00-00 |
US $27.38 |
||
|
21
|
21
86E-77354-00-00 Emblem 4 |
86E-77354-00-00 |
US $27.38 |
||
|
22
|
22
81E-21988-00-00 Patch 8 |
81E-21988-00-00 |
US $3.94 |
||
|
23
|
23
83U-7717H-00-00
Tape 4
|
83U-7717H-00-00 |
— | ||
|
24
|
24
81E-2199H-00-00 Shield, Heat |
81E-2199H-00-00 |
US $39.08 |
||
|
25
|
25
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
25
|
25
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
25
|
25
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
26
|
26
81E-2199J-01-00
Shield, Noise 2
|
81E-2199J-01-00 |
— | ||
|
27
|
27
81E-77271-00-00 Damper, Noise 1111 |
81E-77271-00-00 |
US $7.18 |
||
|
28
|
28
81E-7717E-00-00
Tape 1
|
81E-7717E-00-00 |
— | ||
|
29
|
29
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
30
|
30
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
30
|
30
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
31
|
31
83U-2196M-00-00
Bracket 5
AP |
83U-2196M-00-00 |
— | ||
|
32
|
32
83U-2197M-00-00
Bracket 6
AP |
83U-2197M-00-00 |
— | ||
|
33
|
33
81E-2196N-00-00 Cover, Toe HookAP |
81E-2196N-00-00 |
US $53.42 |
||
|
34
|
34
90267-48104-00 Rivet, Blind (4.8X12.4 Black)AP |
90267-48104-00 |
from US $2.55 |
||
|
35
|
35
902-01043-25-00
Washer, Plate
AP |
902-01043-25-00 |
— | ||
| replacements | |||||
|
35
|
35
90201-04027-00 Washer, PlateAP |
90201-04027-00 |
from US $1.35 |
||
|
35
|
35
902-01044-R6-00
Washer, Plate (90201-04325-00 )
AP |
902-01044-R6-00 |
— | ||
