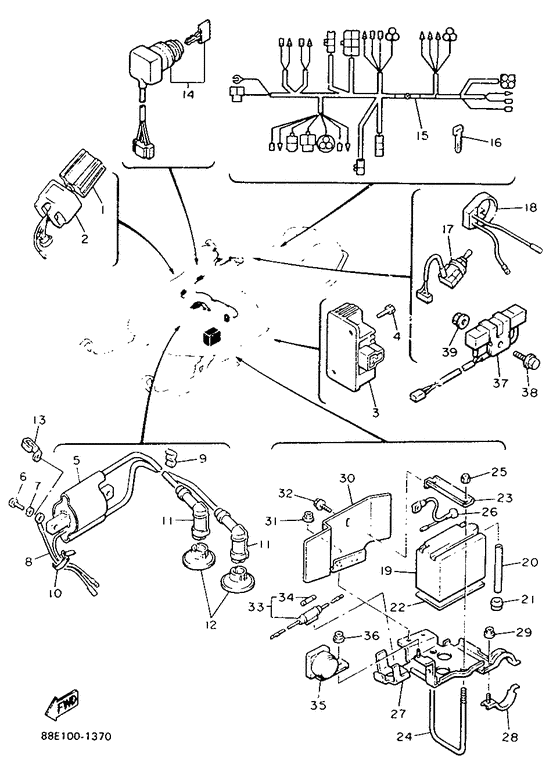

Electrical 1 Diagram Yamaha CS340 Ovation
- Model code
- 88E1
- Engine Capacity
- 337
- Year
- 1991
- Sales region
- North America (999)
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
81E-85540-M0-00 C.d.i. Unit Assembly |
81E-85540-M0-00 |
US $203.99 |
||
|
02
|
02
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
03
|
03
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
04
|
04
97002-05012-00 Bolt |
97002-05012-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
|
05
|
05
87D-82310-00-00 Ignition Coil Assy |
87D-82310-00-00 |
US $118.79 |
||
| replacement | |||||
|
05
|
05
85T-82310-09-00 Ignition Coil Assy |
85T-82310-09-00 |
from US $111.06 |
||
|
06
|
06
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
| replacement | |||||
|
08
|
08
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
09
|
09
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
10
|
10
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
11
|
11
85G-82370-20-00 Plug Cap AssemblyUr for usa |
85G-82370-20-00 |
from US $32.04 |
||
|
11
|
11
8J0-82370-10-00
Plug Cap Assembly
Ur for canada |
8J0-82370-10-00 |
— | ||
|
12
|
12
8G5-82372-00-00 Seal, Plug CapUr for usa |
8G5-82372-00-00 |
from US $3.38 |
||
|
12
|
12
8G8-82372-00-00
Seal, Plug Cap
Ur for canada |
8G8-82372-00-00 |
— | ||
|
13
|
13
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
14
|
14
8K1-82508-20-00 Main Switch Assy |
8K1-82508-20-00 |
from US $87.87 |
||
| replacements | |||||
|
14
|
14
8K1-82510-20-00 Main Switch Assy |
8K1-82510-20-00 |
from US $88.46 |
||
|
14
|
14
8K1-82510-21-00 MAIN SWITCH ASSY |
8K1-82510-21-00 |
from US $61.94 |
||
|
15
|
15
88E-82590-00-00
Wire Harness Assembly
|
88E-82590-00-00 |
— | ||
|
16
|
16
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
16
|
16
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
17
|
17
88H-82917-00-00 Switch |
88H-82917-00-00 |
US $146.61 |
||
|
18
|
18
80X-82318-00-00
Wire, Sub-Lead
|
80X-82318-00-00 |
— | ||
|
19
|
19
447-82110-78-00
Battery Assy
|
447-82110-78-00 |
— | ||
| replacements | |||||
|
19
|
19
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
|
YB1-4LA20-00-00 |
— | ||
|
19
|
19
CB1-4LA20-00-00
element
|
CB1-4LA20-00-00 |
— | ||
|
20
|
20
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.42 |
||
|
21
|
21
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.39 |
||
| replacement | |||||
|
21
|
21
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
22
|
22
82L-82122-00-00 Seat, Battery |
82L-82122-00-00 |
US $8.66 |
||
|
23
|
23
85N-82136-00-00 Plate, Battery Fitting |
85N-82136-00-00 |
US $24.66 |
||
|
24
|
24
8J4-82133-00-00 Screw, Fitting |
8J4-82133-00-00 |
US $10.53 |
||
|
25
|
25
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
26
|
26
85L-82115-00-00 Wire, Plus Lead |
85L-82115-00-00 |
US $31.12 |
||
| replacement | |||||
|
26
|
26
89X-82115-00-00 Wire, Plus Lead |
89X-82115-00-00 |
US $31.12 |
||
|
27
|
27
85N-2199G-00-00 Bracket, Battery |
85N-2199G-00-00 |
US $277.88 |
||
| replacement | |||||
|
27
|
27
85N-2199G-01-00 Bracket, Battery |
85N-2199G-01-00 |
US $277.83 |
||
|
28
|
28
8V0-82136-00-00 Plate, Battery Fitting |
8V0-82136-00-00 |
US $15.41 |
||
|
29
|
29
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
30
|
30
85N-2199H-00-00
Shield, Heat
|
85N-2199H-00-00 |
— | ||
|
31
|
31
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
31
|
31
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
32
|
32
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
32
|
32
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
32
|
32
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
33
|
33
88T-82150-00-00 Fuse Holder Assembly |
88T-82150-00-00 |
US $27.32 |
||
| replacement | |||||
|
33
|
33
1E6-82150-00-00
Fuse Holder Assembly
|
1E6-82150-00-00 |
— | ||
|
34
|
34
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
35
|
35
8L9-81940-10-00
Starter Relay Assy
|
8L9-81940-10-00 |
— | ||
|
36
|
36
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
37
|
37
88T-85370-00-00 Resistor Assembly |
88T-85370-00-00 |
US $44.87 |
||
|
38
|
38
95801-06012-00 Bolt, Flange (1E2) |
95801-06012-00 |
from US $1.07 |
||
| replacements | |||||
|
38
|
38
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
38
|
38
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
39
|
39
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
