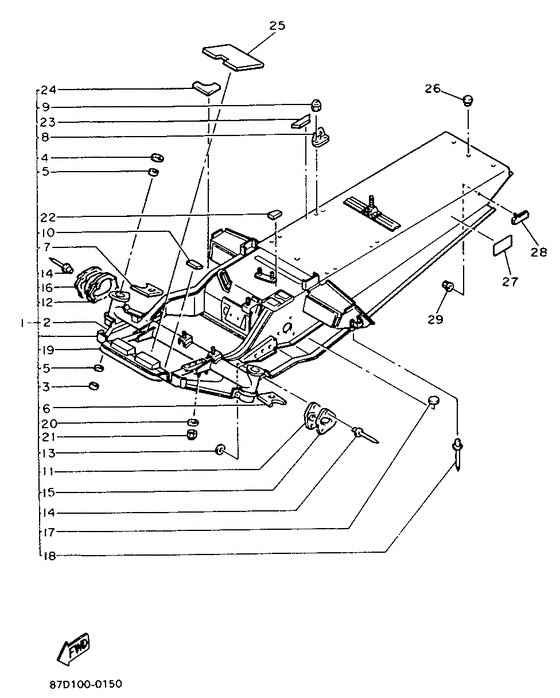

Frame Diagram Yamaha CS340 Ovation
- Model code
- 88E1
- Engine Capacity
- 337
- Year
- 1991
- Sales region
- North America (999)
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88E-21910-00-00
Frame Comp
Ur raspberry red |
88E-21910-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur raspberry red |
999-99999-99-00 |
— | ||
|
02
|
02
88E-21912-00-00
Panel, Sub Frame 1
|
88E-21912-00-00 |
— | ||
|
03
|
03
93103-44134-00
Oil Seal
|
93103-44134-00 |
— | ||
|
04
|
04
93104-44095-00 Oil Seal |
93104-44095-00 |
US $7.60 |
||
|
05
|
05
90384-44173-00 Bush, Bimetal Formed |
90384-44173-00 |
from US $17.63 |
||
|
06
|
06
85L-7717E-00-00 Tape 1 |
85L-7717E-00-00 |
from US $4.99 |
||
|
07
|
07
85L-7717F-00-00 Tape 2 |
85L-7717F-00-00 |
from US $4.99 |
||
|
08
|
08
8V0-21946-00-00 Bracket, Seat Fitting |
8V0-21946-00-00 |
from US $5 |
||
|
09
|
09
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
10
|
10
85L-7717J-00-00 Tape,5 |
85L-7717J-00-00 |
US $2.05 |
||
|
11
|
11
80L-2198F-00-00 Cover 1 |
80L-2198F-00-00 |
US $36.50 |
||
|
12
|
12
80L-2198G-00-00 Cover 2 |
80L-2198G-00-00 |
from US $32.46 |
||
|
13
|
13
90201-047A7-00 Washer, Plate |
90201-047A7-00 |
from US $1.35 |
||
| replacement | |||||
|
13
|
13
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
14
|
14
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
15
|
15
80L-77525-00-00
Washer 1
|
80L-77525-00-00 |
— | ||
|
16
|
16
80L-77526-00-00 Washer 2 |
80L-77526-00-00 |
US $18.85 |
||
|
17
|
17
80F-21998-00-00 Spacer |
80F-21998-00-00 |
from US $8.36 |
||
|
18
|
18
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.52 |
||
|
19
|
19
85L-77512-00-00
Bumper, Front 2
|
85L-77512-00-00 |
— | ||
|
20
|
20
90201-082E7-00 Washer, Plate |
90201-082E7-00 |
from US $2.70 |
||
| replacement | |||||
|
20
|
20
90201-083A6-00 Washer, Plate (3Y6) |
90201-083A6-00 |
from US $3.26 |
||
|
21
|
21
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
21
|
21
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
22
|
22
85L-14409-00-00 Damper |
85L-14409-00-00 |
from US $5.29 |
||
|
23
|
23
85L-2199J-00-00 Shield, Noise 2 |
85L-2199J-00-00 |
US $6.61 |
||
|
24
|
24
85L-77186-00-00
Plate 2
|
85L-77186-00-00 |
— | ||
|
25
|
25
85L-2199H-00-00 Shield, Heat |
85L-2199H-00-00 |
US $19.09 |
||
|
26
|
26
810-77716-00-00
Ornament, Instrument Panel 2
|
810-77716-00-00 |
— | ||
|
27
|
27
8K2-77742-00-00
Indicator 2
|
8K2-77742-00-00 |
— | ||
|
28
|
28
3Y6-85130-01-00 Rear Reflector Assy |
3Y6-85130-01-00 |
from US $21.40 |
||
| replacement | |||||
|
28
|
28
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
29
|
29
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
