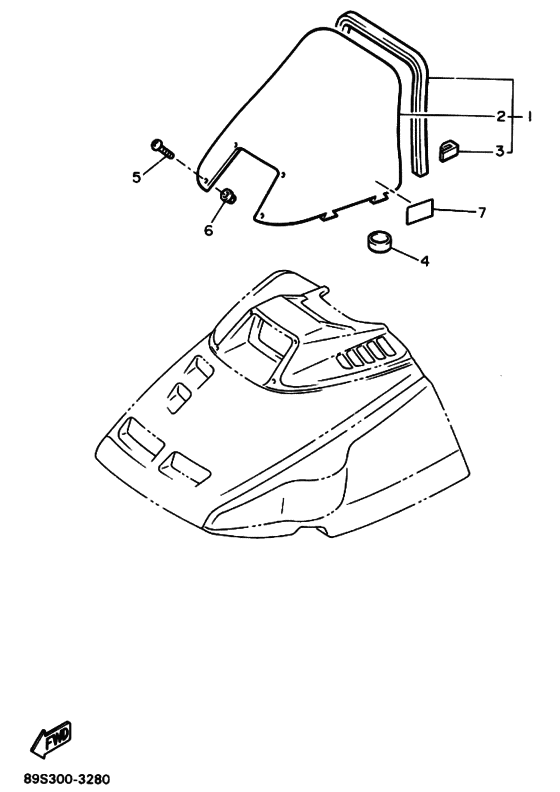

Windshield Diagram Yamaha CS340 Ovation
- Model code
- 8AH1
- Engine Capacity
- 337
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88E-77210-10-00 Windshield Comp．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＹＡＭＡＨＡ ＢＬＡＣＫ |
88E-77210-10-00 |
from US $96.91 |
||
| replacements | |||||
|
1
|
1
88E-77210-20-00 Windshield Comp．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＹＡＭＡＨＡ ＢＬＡＣＫ |
88E-77210-20-00 |
US $340.72 |
||
|
1
|
1
88E-77210-20-XX
Windshield Comp.
．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＹＡＭＡＨＡ ＢＬＡＣＫ |
88E-77210-20-XX |
— | ||
|
2
|
2
87S-77213-00-00 Trim, Upper・ＴＲＩＭ， ｕｐｐｅｒ; |
87S-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
2
|
2
87K-77213-00-00
Trim, Upper
・ＴＲＩＭ， ｕｐｐｅｒ; |
87K-77213-00-00 |
— | ||
|
3
|
3
80V-77223-00-00 Fastener・ＦＡＳＴＮＥＲ; |
80V-77223-00-00 |
US $7.74 |
||
|
4
|
4
82H-77223-00-00 FastnerＦＡＳＴＮＥＲ; |
82H-77223-00-00 |
from US $1.94 |
||
|
5
|
5
90164-05007-00 Screw, TappingＳＣＲＥＷ， ｔａｐｐｉｎｇ; |
90164-05007-00 |
from US $2.83 |
||
|
6
|
6
957-01055-00-00
Nut, Flange
ＮＵＴ， ｆｌａｎｇｅ; |
957-01055-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95707-05500-00 Nut, FlangeＮＵＴ， ｆｌａｎｇｅ; |
95707-05500-00 |
from US $1.07 |
||
|
7
|
7
80V-2835Y-90-00 Caution Label 1ＬＡＢＥＬ， ｃａｕｔｉｏｎ; ＵＲ ＦＯＲ ＪＡＰＡＮ |
80V-2835Y-90-00 |
from US $2.94 |
||
