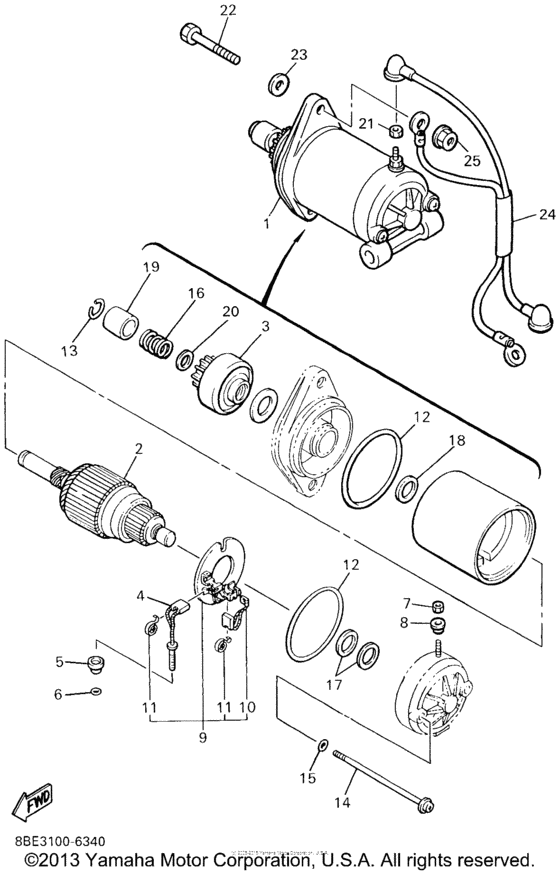

Starting motor Diagram Yamaha CS340 Ovation
- Model code
- CS340
- Engine Capacity
- 337
- Year
- 2000
- Sales region
- USA
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8BB-81800-01-00 Starting Motor Assy |
8BB-81800-01-00 |
from US $461.89 |
||
| replacement | |||||
|
1
|
1
8BB-81800-02-00 Starting Motor Assy |
8BB-81800-02-00 |
from US $461.89 |
||
|
2
|
2
8Y3-81850-50-00 Armature Assy |
8Y3-81850-50-00 |
from US $179.68 |
||
|
3
|
3
84N-81832-51-00 Clutch, Over Run |
84N-81832-51-00 |
from US $166.53 |
||
|
4
|
4
73A-81811-00-00 Brush 1 |
73A-81811-00-00 |
from US $21.39 |
||
| replacement | |||||
|
4
|
4
73A-81811-01-00 BRUSH 1 |
73A-81811-01-00 |
from US $21.39 |
||
|
5
|
5
73A-81829-50-00 Grommet |
73A-81829-50-00 |
from US $3.14 |
||
|
6
|
6
73A-81847-00-00 O-Ring |
73A-81847-00-00 |
from US $3.74 |
||
|
7
|
7
4H7-81872-00-00 Nut, Special |
4H7-81872-00-00 |
from US $4.80 |
||
|
8
|
8
73A-81829-00-00 Grommet |
73A-81829-00-00 |
from US $2.54 |
||
|
9
|
9
8L6-81840-50-00 Brush Holder Assy |
8L6-81840-50-00 |
from US $86.63 |
||
| replacement | |||||
|
9
|
9
8L6-81840-51-00 BRUSH HOLDER ASSY |
8L6-81840-51-00 |
from US $74.99 |
||
|
10
|
10
84N-81812-00-00 Brush 2 |
84N-81812-00-00 |
from US $9.57 |
||
|
11
|
11
8L6-81813-50-00 Spring, Brush |
8L6-81813-50-00 |
from US $3.75 |
||
|
12
|
12
4H7-81844-50-00 O-Ring |
4H7-81844-50-00 |
from US $18.70 |
||
| replacement | |||||
|
12
|
12
4H7-81844-00-00 O-Ring |
4H7-81844-00-00 |
from US $18.70 |
||
|
13
|
13
8L6-81834-50-00 Ring |
8L6-81834-50-00 |
from US $2.66 |
||
|
14
|
14
84N-81826-00-00 Bolt |
84N-81826-00-00 |
from US $9.72 |
||
|
15
|
15
8L6-81847-50-00 O-Ring |
8L6-81847-50-00 |
from US $3.05 |
||
|
16
|
16
8BB-81836-00-00 Spring, Lever |
8BB-81836-00-00 |
from US $3.05 |
||
|
17
|
17
4H7-81843-50-00 Washer 1 |
4H7-81843-50-00 |
from US $2.54 |
||
|
18
|
18
8L6-81835-50-00 Washer 2 |
8L6-81835-50-00 |
from US $3.05 |
||
|
19
|
19
8L6-81833-50-00 Ring, Stop |
8L6-81833-50-00 |
from US $23.04 |
||
|
20
|
20
8BB-8185A-00-00 Washer, Plate |
8BB-8185A-00-00 |
from US $4.94 |
||
|
21
|
21
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.05 |
||
|
22
|
22
97027-08050-00 Bolt |
97027-08050-00 |
from US $3.44 |
||
|
23
|
23
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.05 |
||
|
24
|
24
85N-82105-00-00
Wire Harness
|
85N-82105-00-00 |
— | ||
| replacement | |||||
|
24
|
24
89X-82105-00-00
Wire Harness
|
89X-82105-00-00 |
— | ||
|
25
|
25
95707-08300-00 Nut, Nylon |
95707-08300-00 |
from US $2.99 |
||
| replacement | |||||
|
25
|
25
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $2.50 |
||
