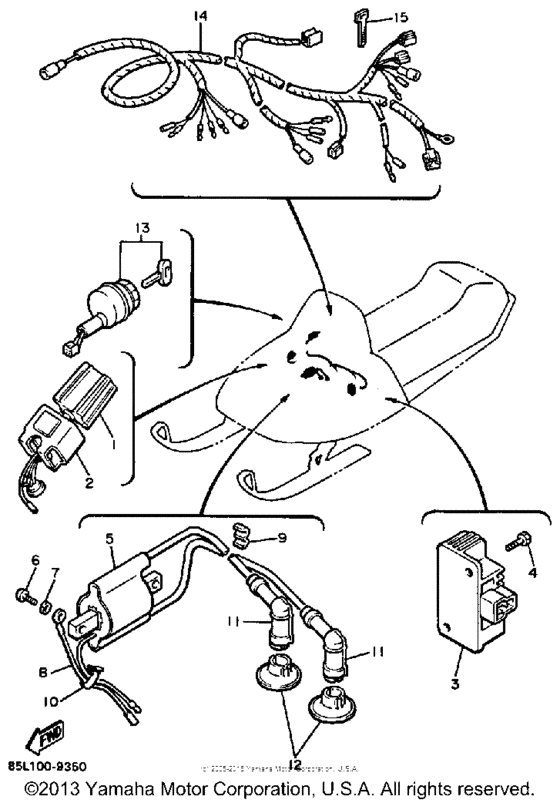

Electrical (1) Diagram Yamaha CS340 Ovation
- Model code
- CS340
- Engine Capacity
- 337
- Year
- 1989
- Sales region
- USA
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81E-85540-M0-00 C.d.i. Unit Assembly |
81E-85540-M0-00 |
US $203.99 |
||
|
2
|
2
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
3
|
3
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
4
|
4
97001-05012-00 Bolt (97002-05012-00) |
97001-05012-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.39 |
||
|
5
|
5
85T-82310-00-00 Ignition Coil Assy |
85T-82310-00-00 |
from US $79.36 |
||
| replacement | |||||
|
5
|
5
85T-82310-09-00 Ignition Coil Assy |
85T-82310-09-00 |
from US $111.06 |
||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
85L-82318-01-00
Wire Sub Lead
85L-82318-00 |
85L-82318-01-00 |
— | ||
|
9
|
9
8W6-82355-00-00 Grommet 1 |
8W6-82355-00-00 |
from US $4.56 |
||
|
10
|
10
J45-83936-00-00 Band Switch Cord Assy |
J45-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $32.04 |
||
|
12
|
12
8G5-82372-00-00 Seal, Plug Cap |
8G5-82372-00-00 |
from US $3.38 |
||
|
13
|
13
8K4-82508-20-00
Main Switch Assembly
|
8K4-82508-20-00 |
— | ||
| replacement | |||||
|
13
|
13
8K4-82510-20-00
Main Switch Assy
|
8K4-82510-20-00 |
— | ||
|
14
|
14
85L-82590-00-00
Wire Harness Assy
|
85L-82590-00-00 |
— | ||
|
15
|
15
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
15
|
15
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
15
|
15
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
