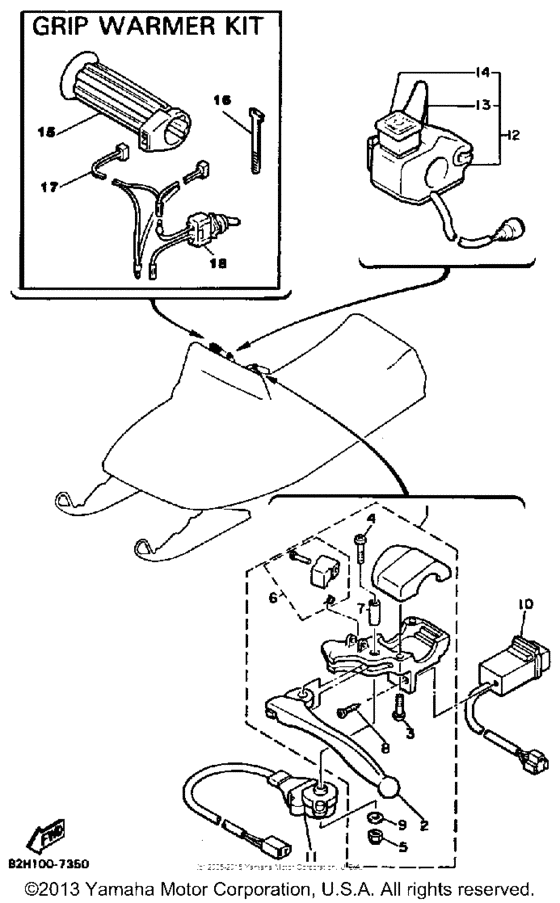

Electrical (2) Diagram Yamaha CS340 Ovation
- Model code
- CS340
- Engine Capacity
- 337
- Year
- 1989
- Sales region
- USA
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88R-W8291-00-00 Lever Holder Assy (Left) |
88R-W8291-00-00 |
from US $82.07 |
||
|
2
|
2
8H8-83912-00-00 Lever 1 |
8H8-83912-00-00 |
from US $15.30 |
||
|
3
|
3
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
4
|
4
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
4
|
4
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
4
|
4
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
5
|
5
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
5
|
5
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
6
|
6
82A-83930-00-00 Lever Lock Assembly (8K4-83938K4-8393 |
82A-83930-00-00 |
US $34.58 |
||
|
7
|
7
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
8
|
8
97780-30312-00
Screw, O Head Tapping
|
97780-30312-00 |
— | ||
|
9
|
9
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
10
|
10
8H8-83950-01-00 Beam Switch Assy |
8H8-83950-01-00 |
from US $50.70 |
||
|
11
|
11
88R-82530-00-00 Stop Switch Assy |
88R-82530-00-00 |
from US $15.87 |
||
|
12
|
12
84R-82720-00-00
Lever Holder Assembly (Right)
|
84R-82720-00-00 |
— | ||
|
13
|
13
8V0-42138-00-00 Lever, Throttle |
8V0-42138-00-00 |
from US $32.33 |
||
|
14
|
14
84R-82575-09-00
Engine Stop Switch Assembly
|
84R-82575-09-00 |
— | ||
|
15
|
15
80K-2626A-00-00 88T Grip Black 1 PcPC |
80K-2626A-00-00 |
US $95.05 |
||
| replacements | |||||
|
15
|
15
88T-26240-85-BK
FOOTREST, REAR 1
PC |
88T-26240-85-BK |
— | ||
|
15
|
15
999-99034-93-00 Grip AssyPC |
999-99034-93-00 |
from US $95.05 |
||
|
15
|
15
88T-26240-00-00 88T Grip Black 1 PcPC |
88T-26240-00-00 |
US $95.05 |
||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
80X-82318-00-00
Wire, Sub-Lead
|
80X-82318-00-00 |
— | ||
|
18
|
18
82J-82917-00-00 Switch |
82J-82917-00-00 |
from US $107.28 |
||
