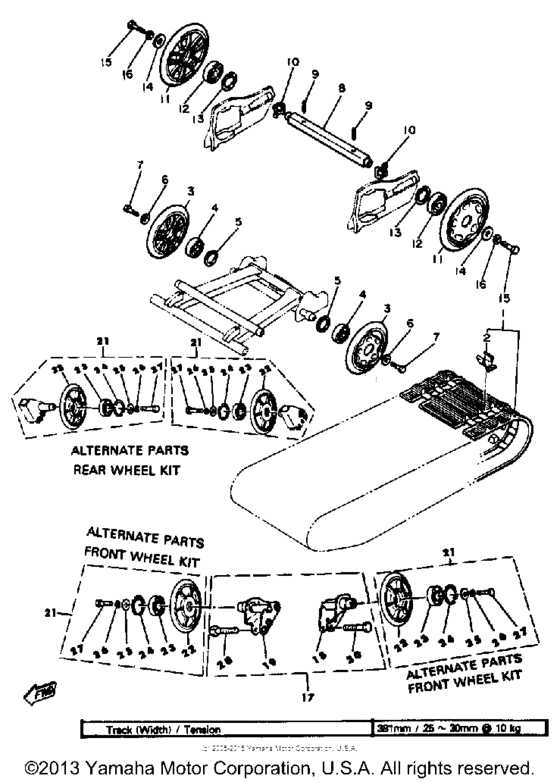

Track suspension (1) Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8J6-47110-01-00
Track Assembly
|
8J6-47110-01-00 |
— | ||
| replacement | |||||
|
1
|
1
8J6-47110-02-00
Track Assembly
|
8J6-47110-02-00 |
— | ||
|
2
|
2
8A5-47115-00-00 Metal, Slide |
8A5-47115-00-00 |
US $18.07 |
||
|
3
|
3
87M-47320-00-00 Suspention Wheel Comp |
87M-47320-00-00 |
from US $54.71 |
||
|
4
|
4
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
4
|
4
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
5
|
5
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
6
|
6
90201-08681-00 Washer, Plate |
90201-08681-00 |
from US $1.70 |
||
|
7
|
7
90109-08559-00 Bolt |
90109-08559-00 |
from US $1.56 |
||
|
8
|
8
8E3-47521-00-00 Axle, Rear |
8E3-47521-00-00 |
from US $75.44 |
||
|
9
|
9
91609-40040-00 Pin, Spring |
91609-40040-00 |
US $1.56 |
||
| replacement | |||||
|
9
|
9
91690-40040-00 Pin, Spring |
91690-40040-00 |
from US $1.56 |
||
|
10
|
10
8E3-47384-00-00 Washer |
8E3-47384-00-00 |
from US $4.96 |
||
|
11
|
11
8L4-47530-00-00 Guide Wheel Comp |
8L4-47530-00-00 |
from US $100.17 |
||
|
12
|
12
93306-20417-00 Bearing |
93306-20417-00 |
from US $26.92 |
||
| replacement | |||||
|
12
|
12
93306-20469-00 Bearing |
93306-20469-00 |
from US $30.74 |
||
|
13
|
13
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $2.32 |
||
|
14
|
14
90201-083A8-00 Washer, Plate |
90201-083A8-00 |
from US $2.69 |
||
|
15
|
15
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
15
|
15
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
15
|
15
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
8G5-47000-10-00
Bracket Kit
|
8G5-47000-10-00 |
— | ||
|
18
|
18
8G8-47418-00-00
Bracket 4
|
8G8-47418-00-00 |
— | ||
|
19
|
19
8G8-47419-00-00
Bracket 7
|
8G8-47419-00-00 |
— | ||
|
20
|
20
90101-06348-00 Bolt, Hex |
90101-06348-00 |
from US $2.34 |
||
| replacement | |||||
|
20
|
20
97017-06035-00 Bolt |
97017-06035-00 |
from US $2.41 |
||
|
21
|
21
8G5-47000-00-00
Idler Wheel Kit
|
8G5-47000-00-00 |
— | ||
|
22
|
22
885-47320-01-00 Suspension Wheel Comp |
885-47320-01-00 |
from US $68.11 |
||
|
23
|
23
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
23
|
23
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
24
|
24
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
25
|
25
902-09061-37-00
Washer, Spec''l Shap
|
902-09061-37-00 |
— | ||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
27
|
27
901-09064-64-00
Bolt
|
901-09064-64-00 |
— | ||
