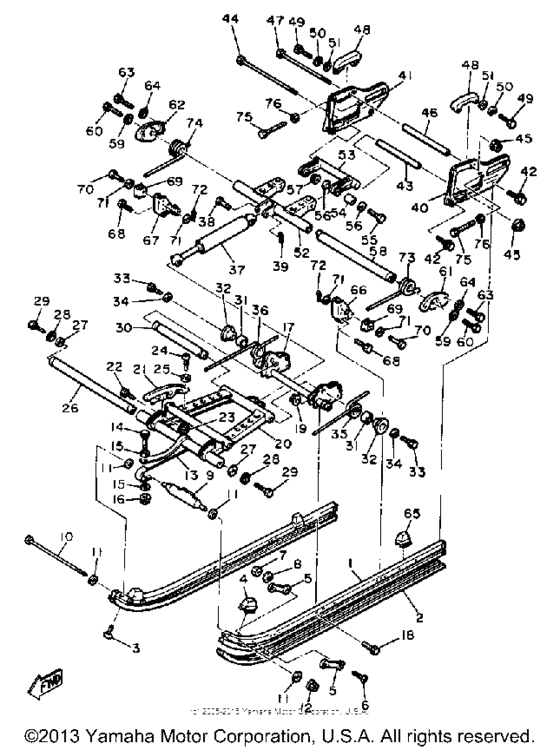

Track suspension (2) Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8G8-47411-00-00
Frame, Sliding 1
|
8G8-47411-00-00 |
— | ||
|
2
|
2
8N5-47421-00-XX Runner, Sliding 1 (8E7-47421-108E7-47421-10 |
8N5-47421-00-XX |
US $17.53 |
||
|
3
|
3
98702-06020-00 Screw, Flat Head |
98702-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
98707-06020-00 Screw, Flat Head |
98707-06020-00 |
from US $1.56 |
||
|
4
|
4
888-47456-01-00 Damper 1 |
888-47456-01-00 |
from US $3.83 |
||
|
5
|
5
885-47458-01-00 Plate, Damper |
885-47458-01-00 |
from US $5.29 |
||
|
6
|
6
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
6
|
6
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
6
|
6
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
7
|
7
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
899-47415-00-00 Bracket 1 |
899-47415-00-00 |
from US $24.09 |
||
|
10
|
10
90101-08374-00 Bolt |
90101-08374-00 |
from US $8.22 |
||
|
11
|
11
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
12
|
12
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
12
|
12
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
13
|
13
888-47495-02-00 Stopper 1 |
888-47495-02-00 |
from US $75.44 |
||
|
14
|
14
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
14
|
14
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
15
|
15
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
16
|
16
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
17
|
17
8L4-47416-00-00
Bracket 2
|
8L4-47416-00-00 |
— | ||
|
18
|
18
90101-06348-00 Bolt, Hex |
90101-06348-00 |
from US $2.34 |
||
| replacement | |||||
|
18
|
18
97017-06035-00 Bolt |
97017-06035-00 |
from US $2.41 |
||
|
19
|
19
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
20
|
20
8X0-47331-00-00
Arm, Pivot 1
|
8X0-47331-00-00 |
— | ||
|
21
|
21
8G8-47422-00-00 Runner, Sliding 2 |
8G8-47422-00-00 |
from US $14.03 |
||
|
22
|
22
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
23
|
23
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
24
|
24
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
25
|
25
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
25
|
25
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
26
|
26
8A5-47465-02-00 Shaft 1 |
8A5-47465-02-00 |
from US $37.30 |
||
|
27
|
27
885-47341-00-00 Spacer |
885-47341-00-00 |
from US $6.61 |
||
|
28
|
28
92901-10400-00
Washer, Tth
|
92901-10400-00 |
— | ||
| replacement | |||||
|
28
|
28
929-07104-00-00
WASHER
|
929-07104-00-00 |
— | ||
|
29
|
29
97013-10030-00 Bolt (8J7)8J7 97303-10030-00 |
97013-10030-00 |
from US $10.06 |
||
|
30
|
30
8A5-47485-02-00 Shaft 3 |
8A5-47485-02-00 |
from US $25.88 |
||
|
31
|
31
903-87305-70-00
Collar
|
903-87305-70-00 |
— | ||
|
32
|
32
8E7-47446-00-00
Hook 1
|
8E7-47446-00-00 |
— | ||
|
33
|
33
970-23100-35-00
Bolt,with Washer
|
970-23100-35-00 |
— | ||
| replacement | |||||
|
33
|
33
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
34
|
34
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
35
|
35
905-08703-75-00
Spring, Torsion
|
905-08703-75-00 |
— | ||
|
36
|
36
905-08703-76-00
Spring, Torsion
|
905-08703-76-00 |
— | ||
|
37
|
37
8E7-47480-00-00 Shock Absorber |
8E7-47480-00-00 |
US $253.95 |
||
| replacements | |||||
|
37
|
37
8E7-47480-01-00 Shock Absorber |
8E7-47480-01-00 |
from US $221.06 |
||
|
37
|
37
8E7-47480-10-00
Shock Absorber
|
8E7-47480-10-00 |
— | ||
|
38
|
38
90240-12115-00 Pin, Clevis(8N0) |
90240-12115-00 |
from US $5.53 |
||
|
39
|
39
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
39
|
39
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
40
|
40
8E3-47412-00-00 Frame, Sliding 2 |
8E3-47412-00-00 |
from US $83.59 |
||
|
41
|
41
8E3-47413-00-00 Frame, Sliding 3 |
8E3-47413-00-00 |
from US $77.37 |
||
|
42
|
42
90119-08008-00 Bolt, With Washer |
90119-08008-00 |
from US $2.79 |
||
|
43
|
43
90387-08496-00 Collar |
90387-08496-00 |
from US $10.48 |
||
|
44
|
44
90101-08374-00 Bolt |
90101-08374-00 |
from US $8.22 |
||
|
45
|
45
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
45
|
45
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
46
|
46
90387-08497-00 Collar |
90387-08497-00 |
from US $11.33 |
||
|
47
|
47
97022-08250-00 Bolt, Hexagon |
97022-08250-00 |
from US $7.19 |
||
| replacement | |||||
|
47
|
47
97027-08250-00 Bolt, Hexagon |
97027-08250-00 |
US $10.01 |
||
|
48
|
48
8E3-47422-00-00 Runner, Sliding 2 |
8E3-47422-00-00 |
from US $14.03 |
||
|
49
|
49
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
49
|
49
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
50
|
50
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
51
|
51
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
51
|
51
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
52
|
52
8A5-47332-00-00
Arm, Pivot 2
|
8A5-47332-00-00 |
— | ||
|
53
|
53
8A5-47417-00-00 Bracket 3 |
8A5-47417-00-00 |
from US $37.30 |
||
|
54
|
54
90387-08508-00 Collar |
90387-08508-00 |
from US $2.27 |
||
|
55
|
55
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
55
|
55
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
56
|
56
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
57
|
57
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
57
|
57
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
58
|
58
8A5-47475-02-00 Shaft 2 |
8A5-47475-02-00 |
from US $32.16 |
||
|
59
|
59
92901-10400-00
Washer, Tth
|
92901-10400-00 |
— | ||
| replacement | |||||
|
59
|
59
929-07104-00-00
WASHER
|
929-07104-00-00 |
— | ||
|
60
|
60
97013-10030-00 Bolt (8J7)8J7 97303-10030-00 |
97013-10030-00 |
from US $10.06 |
||
|
61
|
61
8A5-47425-00-00 Bracket, Rear 2 |
8A5-47425-00-00 |
from US $26.64 |
||
|
62
|
62
8A5-47426-00-00 Bracket, Rear 1 |
8A5-47426-00-00 |
US $28.60 |
||
|
63
|
63
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
63
|
63
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
64
|
64
92901-08400-00 Washer,ex.tooth |
92901-08400-00 |
US $2.98 |
||
| replacement | |||||
|
64
|
64
92990-08400-00 Washer |
92990-08400-00 |
from US $2.98 |
||
|
65
|
65
885-47457-00-00
Damper 2
|
885-47457-00-00 |
— | ||
|
66
|
66
8L4-47463-00-00
Bracket 5
|
8L4-47463-00-00 |
— | ||
|
67
|
67
8L4-47464-00-00
Bracket 6
|
8L4-47464-00-00 |
— | ||
|
68
|
68
90101-06348-00 Bolt, Hex |
90101-06348-00 |
from US $2.34 |
||
| replacement | |||||
|
68
|
68
97017-06035-00 Bolt |
97017-06035-00 |
from US $2.41 |
||
|
69
|
69
890-47447-00-00 Hook 2 |
890-47447-00-00 |
from US $6.80 |
||
|
70
|
70
90249-12113-00 Pin |
90249-12113-00 |
from US $9.49 |
||
|
71
|
71
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
| replacement | |||||
|
71
|
71
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
72
|
72
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
72
|
72
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
73
|
73
905-08993-31-00 Spring, Torsion |
905-08993-31-00 |
from US $36.47 |
||
|
74
|
74
90508-99332-00 Spring, Torsion |
90508-99332-00 |
from US $36.47 |
||
|
75
|
75
90101-10314-00 Bolt |
90101-10314-00 |
from US $8.36 |
||
|
76
|
76
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
76
|
76
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
