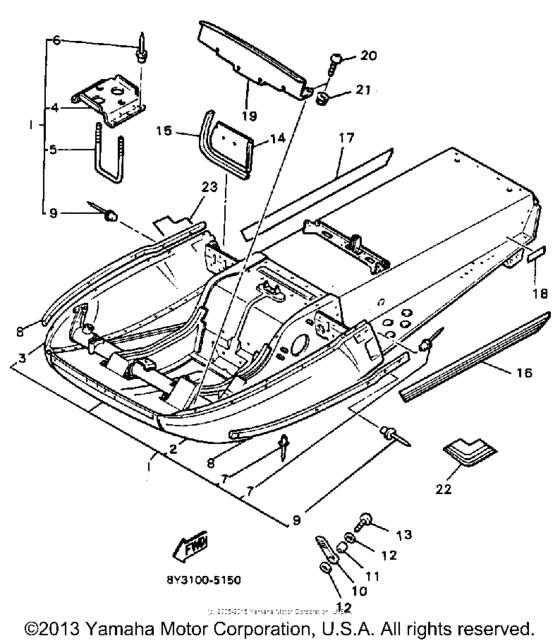

Frame Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1985
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8Y3-21910-00-00 Frame |
8Y3-21910-00-00 |
US $1,474.88 |
||
|
2
|
2
8Y3-21982-70-00
Hood 1
|
8Y3-21982-70-00 |
— | ||
| replacement | |||||
|
2
|
2
82A-21982-00-00
Hood 1
|
82A-21982-00-00 |
— | ||
|
3
|
3
8Y3-21983-70-00
Hood 2
|
8Y3-21983-70-00 |
— | ||
|
4
|
4
8W8-2199G-00-00
Bracket, Battery
|
8W8-2199G-00-00 |
— | ||
|
5
|
5
8J4-82133-00-00 Screw, Fitting |
8J4-82133-00-00 |
US $10.53 |
||
|
6
|
6
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
7
|
7
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
8
|
8
8W6-2196T-00-00
Trim 1
|
8W6-2196T-00-00 |
— | ||
|
9
|
9
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
10
|
10
8M6-77171-00-00 Body, Latch 1 |
8M6-77171-00-00 |
US $17.44 |
||
|
11
|
11
90387-06241-00 Collar |
90387-06241-00 |
from US $1.28 |
||
|
12
|
12
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
12
|
12
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
12
|
12
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
13
|
13
98906-06025-00 Screw, Bind |
98906-06025-00 |
from US $1.56 |
||
| replacements | |||||
|
13
|
13
901-1006X-77-00
Bolt, Hexagon Socket Head
|
901-1006X-77-00 |
— | ||
|
13
|
13
1TK-E3573-00-00
Bolt 1
|
1TK-E3573-00-00 |
— | ||
|
13
|
13
98907-06025-00 Screw, Binding |
98907-06025-00 |
from US $1.56 |
||
|
14
|
14
8Y2-2198G-00-00
Cover 2
|
8Y2-2198G-00-00 |
— | ||
|
15
|
15
8Y2-2199F-00-00
Shield, Noise
|
8Y2-2199F-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
8Y3-77354-00-00
Emblem 4
|
8Y3-77354-00-00 |
— | ||
|
17
|
17
8Y3-77355-00-00 Emblem 5 |
8Y3-77355-00-00 |
US $56.48 |
||
|
18
|
18
8K2-77742-00-00
Indicator 2
|
8K2-77742-00-00 |
— | ||
|
19
|
19
8W6-2198F-00-00
Cover, 1
|
8W6-2198F-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
21
|
21
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
22
|
22
8Y3-77169-00-00 Ornament 3 |
8Y3-77169-00-00 |
US $24.01 |
||
|
23
|
23
8Y3-77113-00-00
Ornament 4
|
8Y3-77113-00-00 |
— | ||
