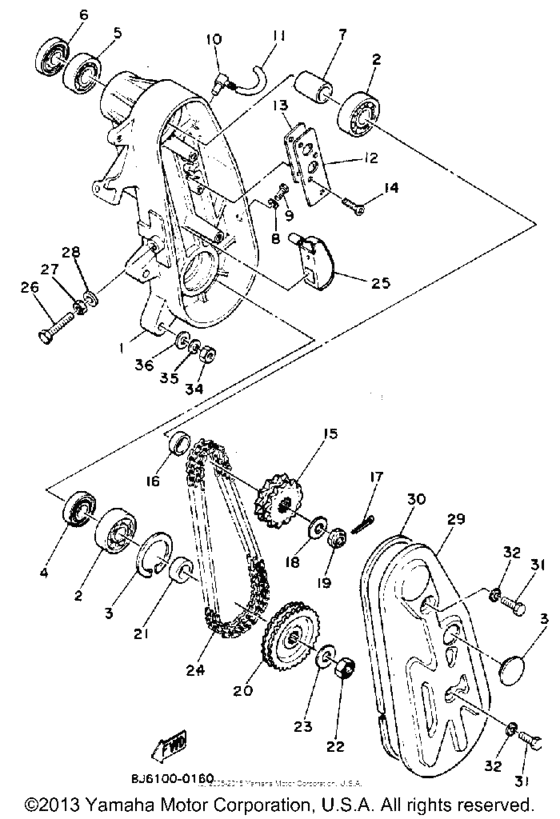

Track drive (2) Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1985
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8F3-47541-00-00 Housing, Chain |
8F3-47541-00-00 |
from US $238.08 |
||
|
2
|
2
93306-30407-00 Bearing |
93306-30407-00 |
from US $16.43 |
||
|
3
|
3
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
4
|
4
93102-20309-00 Oil Seal (25Y)IN PRICE BOOK 9310 |
93102-20309-00 |
from US $10.69 |
||
|
5
|
5
93306-20458-00 Bearing |
93306-20458-00 |
from US $21.96 |
||
| replacement | |||||
|
5
|
5
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $28.19 |
||
|
6
|
6
93102-30083-00 Oil Seal |
93102-30083-00 |
from US $6.66 |
||
|
7
|
7
90387-20580-00
Collar
|
90387-20580-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.55 |
||
|
9
|
9
91311-06010-00 Bolt |
91311-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
10
|
10
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
11
|
11
90445-09055-00 Hose (L420) |
90445-09055-00 |
from US $6.52 |
||
| replacement | |||||
|
11
|
11
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
12
|
12
8G8-47591-00-00
Plate
|
8G8-47591-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
85T-47592-00-00
Gasket
|
85T-47592-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
98702-05014-00 Screw, Flat Head |
98702-05014-00 |
from US $2.27 |
||
| replacement | |||||
|
14
|
14
98707-05014-00 Screw, Flat Head |
98707-05014-00 |
from US $1.94 |
||
|
15
|
15
806-17682-20-00 Sprocket, Chain Drive12T AP |
806-17682-20-00 |
US $49.34 |
||
|
15
|
15
802-17682-20-00
Sprocket, Chain Drive
11T AP |
802-17682-20-00 |
— | ||
|
15
|
15
802-17682-40-00 Sprocket, Chain Drive (13T)DR 13TCHAIN DRIVE UR STD |
802-17682-40-00 |
US $54.95 |
||
| replacement | |||||
|
15
|
15
806-17682-30-00 Sprocket, Chain DriveDR 13TCHAIN DRIVE UR STD |
806-17682-30-00 |
US $54.95 |
||
|
15
|
15
806-17682-40-00
Sprocket, Chain Drive
14T AP |
806-17682-40-00 |
— | ||
|
16
|
16
90387-19649-00
Collar
|
90387-19649-00 |
— | ||
|
17
|
17
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
18
|
18
90201-122H1-00 Washer, Plate (35T) |
90201-122H1-00 |
from US $3.83 |
||
|
19
|
19
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
20
|
20
8G8-47548-10-00
Sprocket, Chn Drvn
AP |
8G8-47548-10-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
20
|
20
8G8-47548-20-00
Sprocket, Chn Drvn
UR STD |
8G8-47548-20-00 |
— | ||
|
20
|
20
8G8-47548-30-00 Sprocket, Chn DrvnAP |
8G8-47548-30-00 |
from US $95.98 |
||
|
21
|
21
90387-20155-00
Collar
|
90387-20155-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
956-01101-00-00
Nut, U (737 Steering Column)
|
956-01101-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
23
|
23
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
23
|
23
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
24
|
24
94880-01060-00
Chain 60L
60L |
94880-01060-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
60L |
999-99999-99-00 |
— | ||
|
25
|
25
8G8-47611-00-00 Tensioner |
8G8-47611-00-00 |
from US $27.47 |
||
|
26
|
26
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
27
|
27
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
27
|
27
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
28
|
28
90210-10004-00 Washer, Seal |
90210-10004-00 |
from US $3.83 |
||
|
29
|
29
8F3-47543-00-00 Cap, Housing |
8F3-47543-00-00 |
US $30.53 |
||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
8F3-47558-00-00
Ring, Housing (97302-08020)
97302-08020 |
8F3-47558-00-00 |
— | ||
|
31
|
31
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
31
|
31
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
31
|
31
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
32
|
32
90210-08002-00 Washer, Seal |
90210-08002-00 |
from US $1.56 |
||
|
33
|
33
148-22315-00-00 Cap |
148-22315-00-00 |
from US $3.26 |
||
|
34
|
34
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
36
|
36
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
