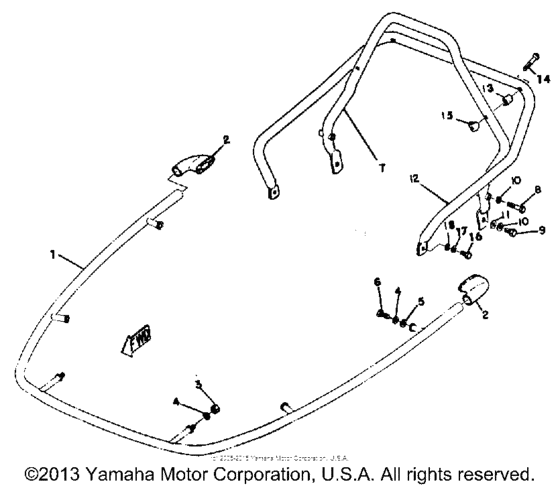

Bumper Diagram Yamaha EW433
- Model code
- EW433
- Engine Capacity
- 433
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
826-77510-00-00 Front Bumper |
826-77510-00-00 |
US $134.39 |
||
|
2
|
2
821-77523-00-00 End, Bumper |
821-77523-00-00 |
US $14.67 |
||
|
3
|
3
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
6
|
6
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
6
|
6
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
7
|
7
826-77541-00-00
Bumper, Rear 1
|
826-77541-00-00 |
— | ||
|
8
|
8
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
8
|
8
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
9
|
9
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
9
|
9
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
12
|
12
826-77571-00-00
Grip, Assist 1
|
826-77571-00-00 |
— | ||
|
13
|
13
806-77515-00-00
Bush, Rubber 1
|
806-77515-00-00 |
— | ||
|
14
|
14
926-01060-50-00
Screw
|
926-01060-50-00 |
— | ||
|
15
|
15
806-77573-00-00
Nut, Special
|
806-77573-00-00 |
— | ||
|
16
|
16
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
16
|
16
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
